Interface for connecting a rear-view camera / AV input with Volkswagen RNS310, RNS315, RNS510, RNS810, RCD510, Columbus, Trinax, Skoda Columbus

MI-VAGRV2

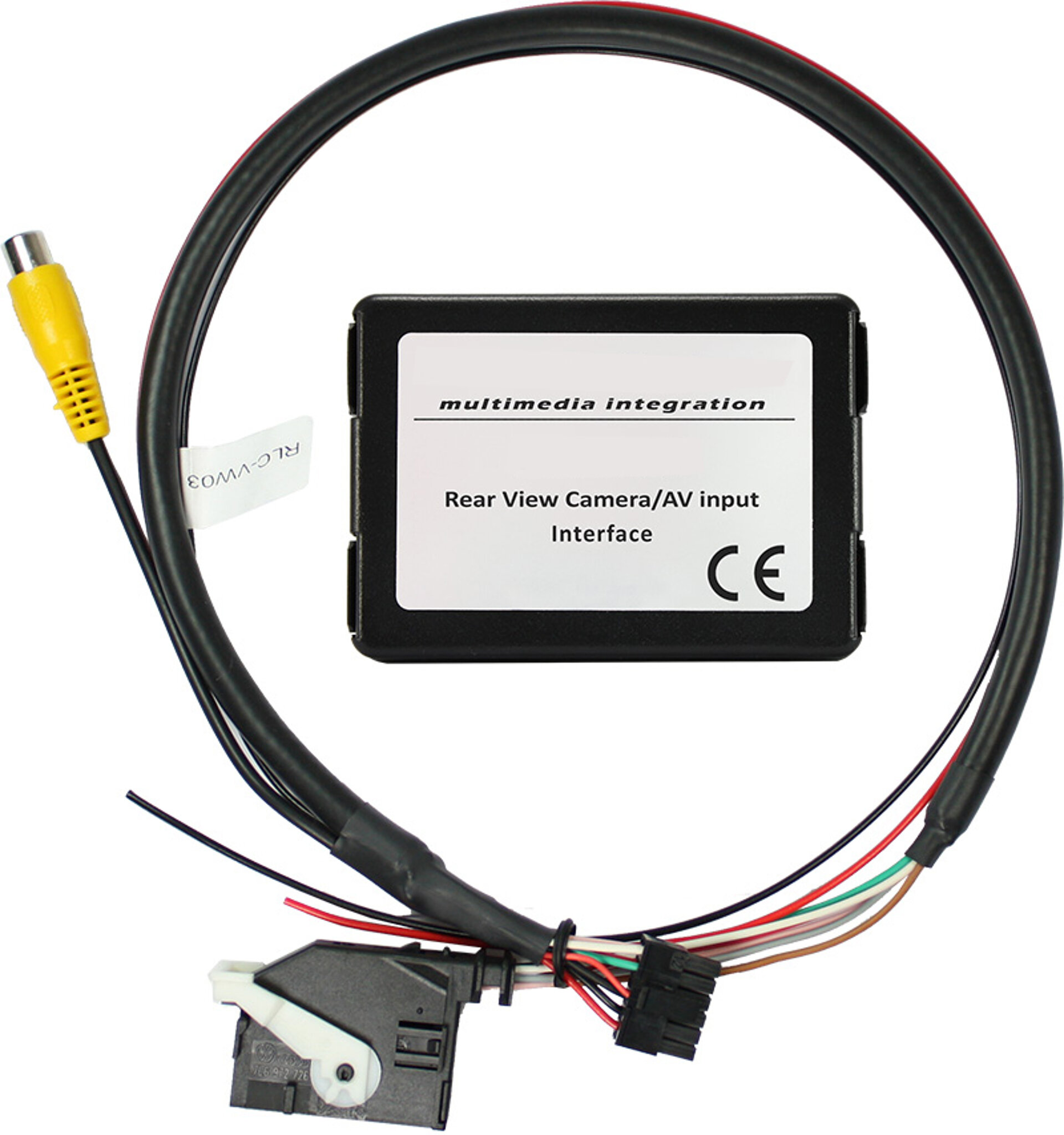

The interface MI-VAGRV2 allows the easy connection of a video-source to the existing system of the automobile manufacturer.

request product find a merchant
  • description
    • Integration into the original system of the vehicle
    • Rear-view camera input is only compatible with NTSC-Cameras
    • Rear-view camera is imaged up to approx. 5 km / h
    • The automatic changeover to the reversing camera is carried out by inserting the reverse gear
    • Installation Plug & Play
    • Coding the "head unit" is necessary
  • specifications
    Working current 200 mA
    Rated current 0 mA
    Power consumption 2.8 W
    Voltage working range 10.5 - 14.8V
    Operation temperature -30°C bis +80°C
    Weight 53 g
    Dimensions (W x H x D) 72 x 23 x 50mm
  • shipment
    • Plug & Play cable kit
    • Interface
    • Instruction manual
  • compatibility

    For Volkswagen, Skoda and Seat vehicles with navigation systems RNS510, Columbus, Trinax, RNS315 and RNS810 and monitor radios RCD510 and bolero
    with 26-pin connector on the back of the head unit. For vehicles "WITHOUT" the original rear-view camera of the manufacturer.

    Installed in the following vehicles:

    • Seat: Leon, Actea
    • Skoda: Octavia, Superb, Fabia, Roomster, Yeti
    • Volkswagen: EOS, Golf VI, Jetta, Passat, Scirocco, Touran, Tiguan

    Bentley with RNS810:

    • Continental model years from approx. 2011-

    Seat:

    • All vehicles with Trinax (RNS510 type)

    Skoda vehicles with:

    • Amundsen (RNS315 type),
    • Columbus (RNS510 type)
    • Bolero (RCD510 type)

    VW:

    • Vehicles with RNS315, RNS510, RNS810
    • Suitable ONLY for vehicles with 26-pin connector on the back of the head unit: RCD510, RNS310
Technical changes and errors excepted.
