Twin-Camera with third stop light

DBC 1140107DV

Twin-Camera with third stop light

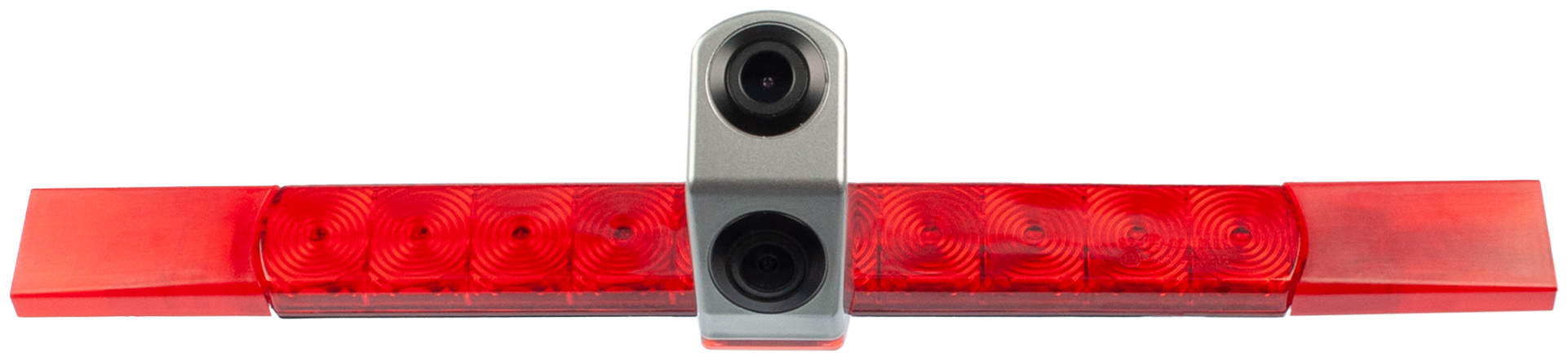

The DBC 1140107DV camera is intended for caravans which are equipped ex works with third brake lights from Hella and AL.

request product find a merchant
  • description
    • The new DBC1140107DV camera is intended for caravans which are equipped ex works with third brake lights from Hella and AL. Its special design makes it completely inconspicuous, but effective. The twin-camera version allows optimum visibility of the following traffic while driving and of the area behind the vehicle when manoeuvring. It is particularly suitable for navigation systems and moniceivers with several camera inputs. It also produces impressive results when used in conjunction with an AXION VRM xxxx series mirror monitor.
    • 120°/90° viewing angle
    • 2 inputs are required on the monitor
    • High light sensitivity (0.1 Lux)
    • Simple and fast assembly
    • Incl. 15m camera cable, 2x adaptation to RCA, 2x adaptation to AXION Mini DIN
  • specifications
    Sensor 1/3" CMOS
    Angle (down/rear) diagonal 120°/90°, horizontal 95°/72°, vertical 70°/56°
    Illumination 0,1 Lux
    Color silver
    TV-System NTSC
    Resolution 700 TV lines
    Video-Output Composite Signal (2.0 Vp-p, 75 Ohm)
    Power supply 12 Volt ±10%
    Operationg temperature -30°C bis +70°C
    Protection class IP69
    Dimensions 290 x 52 x 56 mm
  • downloads

    DBC 1140107DV - Datenblatt

    Download
Technical changes and errors excepted.
