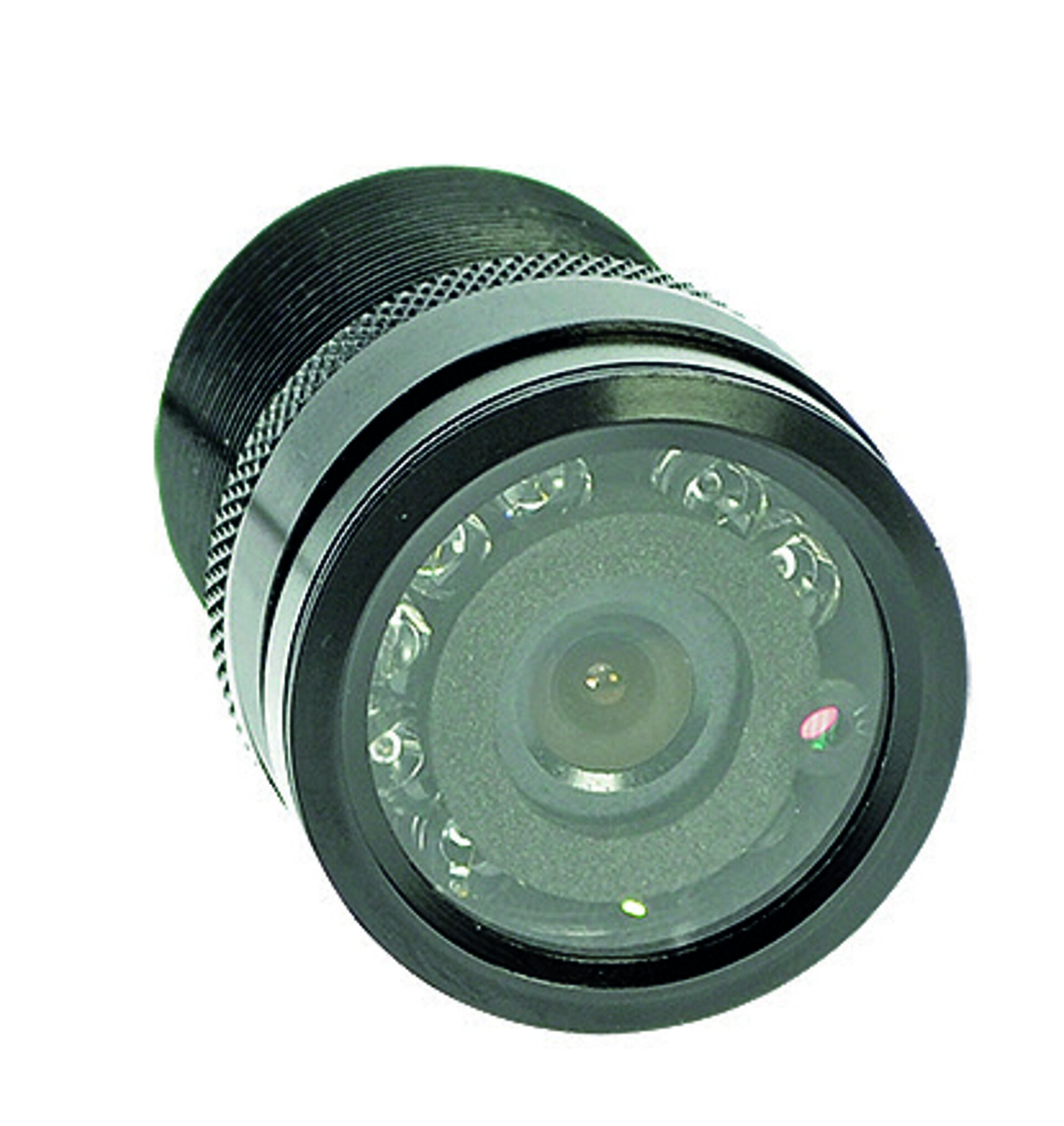

Waterproof pin camera

DBC 114033 P

Color pin camera in sturdy aluminium die-cast housing
Resistant against vandalism and moisture (IP69K)
Wide viewing angle (120°)

request product find a merchant
  • description
    • 1/3“ CCD color-camera
    • 9 infrared LEDs for better performance in dark areas (max. 3 m)
    • Minimum illumination (0 lux)
    • Electronic brightness adjustment
    • Automatic electronic iris
    • Wide viewing angle (120°)
    • Resistant against vandalism and moisture (IP69K)
    • Weatherproof aluminium die-cast housing
  • specifications
    Image-Sensor 1/3 " CCD sensor
    Resolution 568.000 pixels ; 600 TV lines
    Visual angle 120°
    Illumination 0 Lux
    IR-LED Beamer 9
    Guide-Lines no
    Camera-Input Mini DIN
    Protection class IP 69K
    Operating temperature range -30 °C bis + 70 °C
    Vibration resistant 4.5 G
    Power supply 12 V
    Power consumption max. 2,76 W
    Dimensons 59x35 mm
    Weight 400 g
    Certification ECE-R10





  • shipment

    DBC 114033 P - Camera



    optional:

    • WPC 5 (20 m connection cable)
  • downloads

    DBC 114033 P - Datenblatt

    Download
Technical changes and errors excepted.
