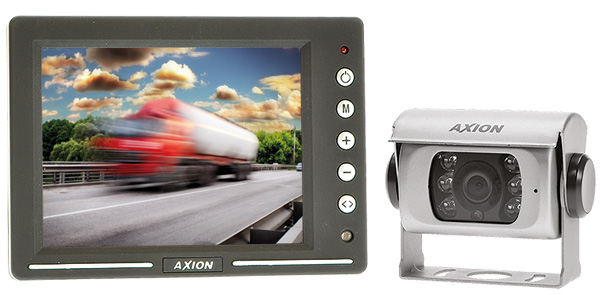

5,6 inch Rear Vision System

CRV 5605 Set

Complete professional Rear View System with Color Camera, incl. Monitorstand, 20m cable. Easy to install & connect - Plug & Play. For 12V and 24V use.

request product find a merchant
  • description

    Complete professional Rear View System with Color Camera

    CRV 5605 M - Monitor

    • Rear view monitor with 2 camera inputs
    • 7 languages OSD
    • High resolution
    • 2 individual trigger wires
    • Power on at voltage
    • Priority adjustable
    • Day/night switch

    DBC 114073 Basic - Rear View Camera

    • Sturdy rear view color-camera
    • Camera viewing angle: 110°
    • Camera protection class: IP68
    • 6 x IR LED residual light amplifiers for better performance in dark areas (0,01 lux)
  • specifications

    CRV 5605 M - Monitor

    Monitor 5,6 inch (14,22 cm)
    Resolution 224.640 pixel
    Brightness 300 cd/m2
    Wide viewing angle r/l :65°/60° , u/d: 45/65 °
    Mirror function yes
    Video-System PAL / NTSC (auto)
    Day/Night sensor yes
    Built-in speakers yes
    Video-Input 2x AXION 4p DIN
    Power supply 12/24 V
    Power consumption < 7 W
    Operating temperature range -20 °C bis + 70 °C
    Storage temperatur range -30 °C bis + 80 °C
    Vibration resistant > 5 G
    OSD (User-Manuel) 7 Languages
    Power-On mode yes
    Protection class IP 54
    Dimensons (WxHxD) 165x115x29
    Weight: approx 528 g
    Certification ECE-R10

    DBC 114073 Basic - Rear View Camera

    Image size 1/4" Sony Color CCD
    Resolution 500x582, 420 TVL lines
    Wide viewing angle 110° ( diagonal)
    Lens 2,6mm
    Illumination 0,001 Lux
    LED-IR beamer yes, 6 pieces
    Microphone yes
    Signal CVBS(FBAS) 1 Vpp / 75 Ohm
    Video-System PAL
    Mirror function yes
    Connection MINAX
    Protection class IP 68
    Salt and chemicals tested yes
    Operating temperature range -30 °C bis +65 °C
    Storage temperatur range -40 °C bis +85 °C
    Vibration resistant > 6G
    Shock resistant 50 G
    Power supply 12 V
    Power consumption < 2,5 W
    Dimensons (WxHxD) 76 x 73 x 85 mm
    Weight 259 g
    Certification ECE-R10
  • shipment
    • CRV 5605M incl. connection cable set
    • Monitor stand
    • DBC 114073 Basic
    • WPC 6 (20 m cable)
  • downloads

    CRV 5605 Set - Datenblatt

    Download
Technical changes and errors excepted.
