DAB+ upgrade for existing car radio

DAB212STD

Upgrade your existing in-car FM-RDS radio to receive DAB+ digital radio.

request product find a merchant
  • description

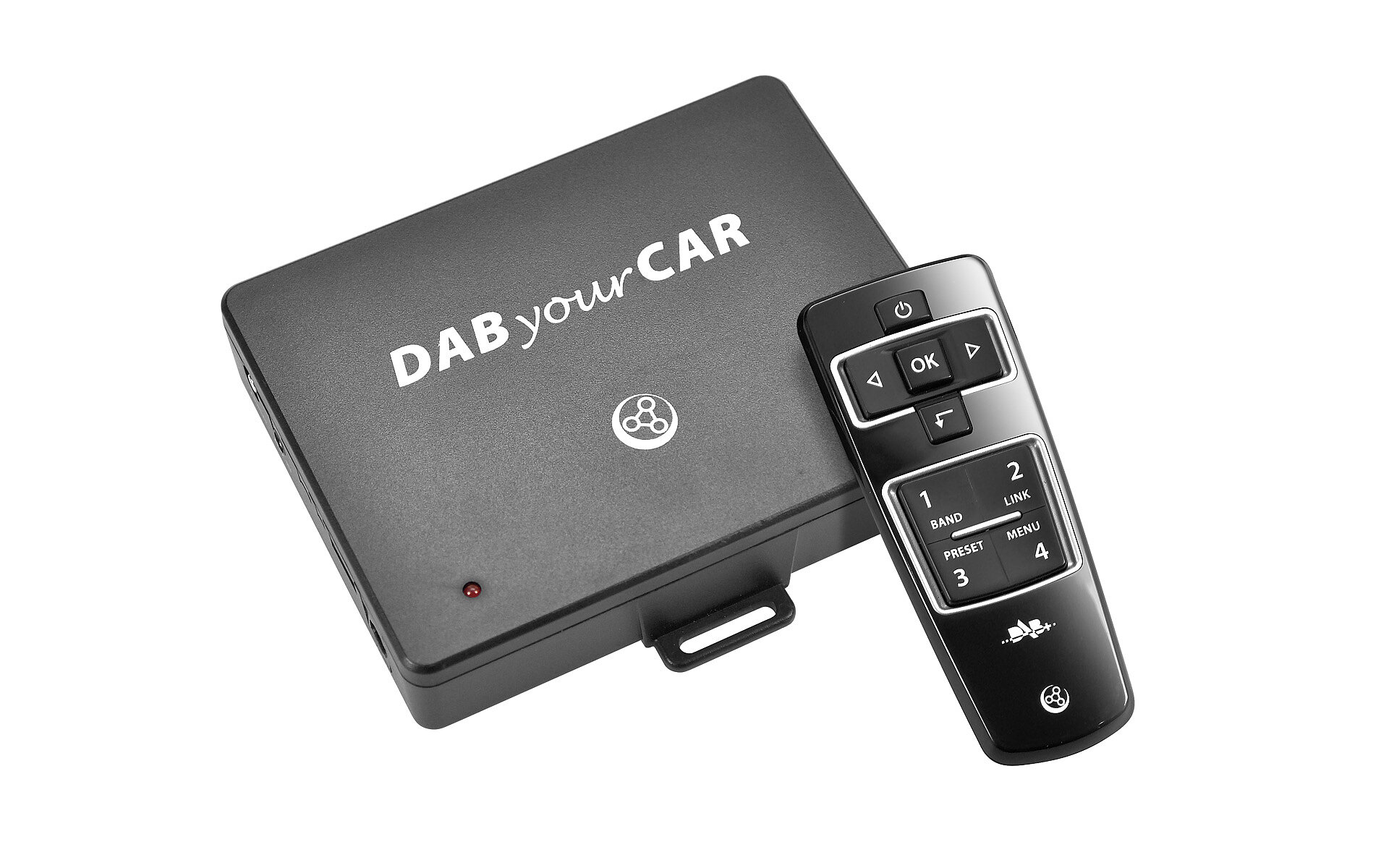

    Digital radio is simply better. With the DAB212STD DAB+yourCAR add-on box from Axion, any RDS radio can now receive the DAB+ digital radio standard for little money. This gives you access to a wide range of DAB+ stations and lets you enjoy digital audio quality on your existing car radio. An additional Aux-In jack allows you to connect an external audio source such as an MP3 player/iPod®.

    Ingeniously simple, the DAB212STD is easy to install thanks to wireless connection to the car radio via FM transmitter.
    The DAB+ box can be fully remote controlled via a radio remote control. Station names and system information are displayed via RDS on the existing radio. The Auto-Scan function with AFC frequency change technology always automatically finds a free FM frequency.

    Expand your existing car radio with DAB+ reception now!

    • Upgrade your existing in-car FM-RDS radio to receive DAB+ digital radio
    • Digital sound quality
    • Station memories with quick selection
    • Aux-In connector for external sources
    • DAB/DAB+ auto tuning
    • Remote control
    • 4 buttons for 12 station presets
    • Sound controlled by radio
    • Station info on car radio display
    • Menu settings
    • Plug and play installation
    • No visible connection cables
    • Optimized DAB active windshield antenna included





    For more information about DAB+, visit the official digitalradio website

    more information

  • specifications

    Main Unit:

    WorldDMB Profile 1 compliant
    Capable of Decoding all DAB Broadcasting Modes 1-4
    DAB RF Frequenzy Range Band III: 174 MHz ~ 240 MHz
    Aerial Input Impedance 50Ω
    Far Off Selectivity 42dB (min)
    Adjacent Channel Selectivity 30db (min)
    FM Transmit Bandwithz. 87.6 MHz ~ 107.9 MHz.
    Power Consumption 3.6W
    Voltage Supply 11-16V DC
    Operating Temperature Range 20° up to +70° C
    Storage Temperature Range: -40° up to +85° C
    Dimensions 112(L) x 102(B) x 23(H) mm
    Weight 120,4 g

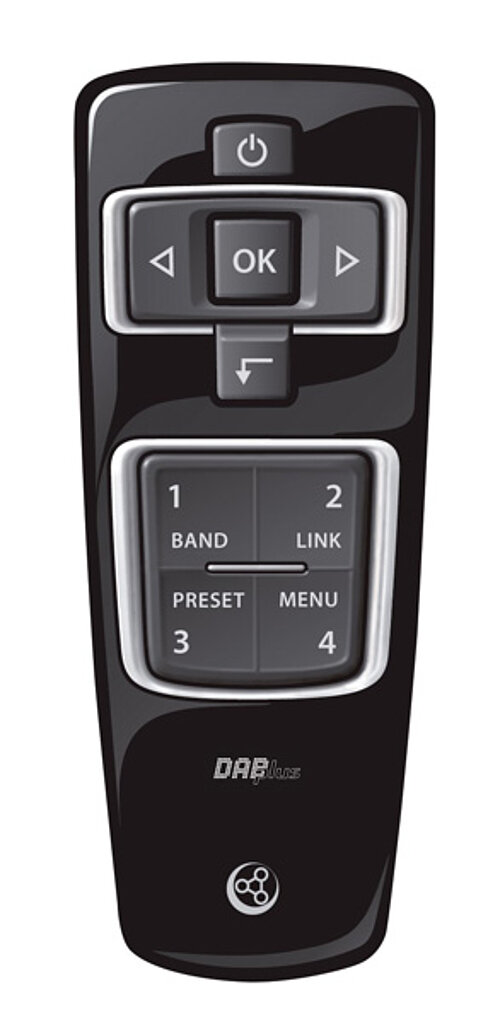

    Remote Control:

    Frequence 2,479GHz
    Modulation GFSK
    Battery CR2032
    Dimensions 113(L) x 45(B) x 12(H) mm
    Weight 36,2 g
  • shipment
    • DAB yourCar Box
    • RF-Remote control
    • Window antenna (ADA-401)
  • downloads

    DAB212STD - Datenblatt

    Download
Technical changes and errors excepted.
