1DIN Navigation Car Radio with DAB+, Bluetooth, iPod, Backup Camera-in

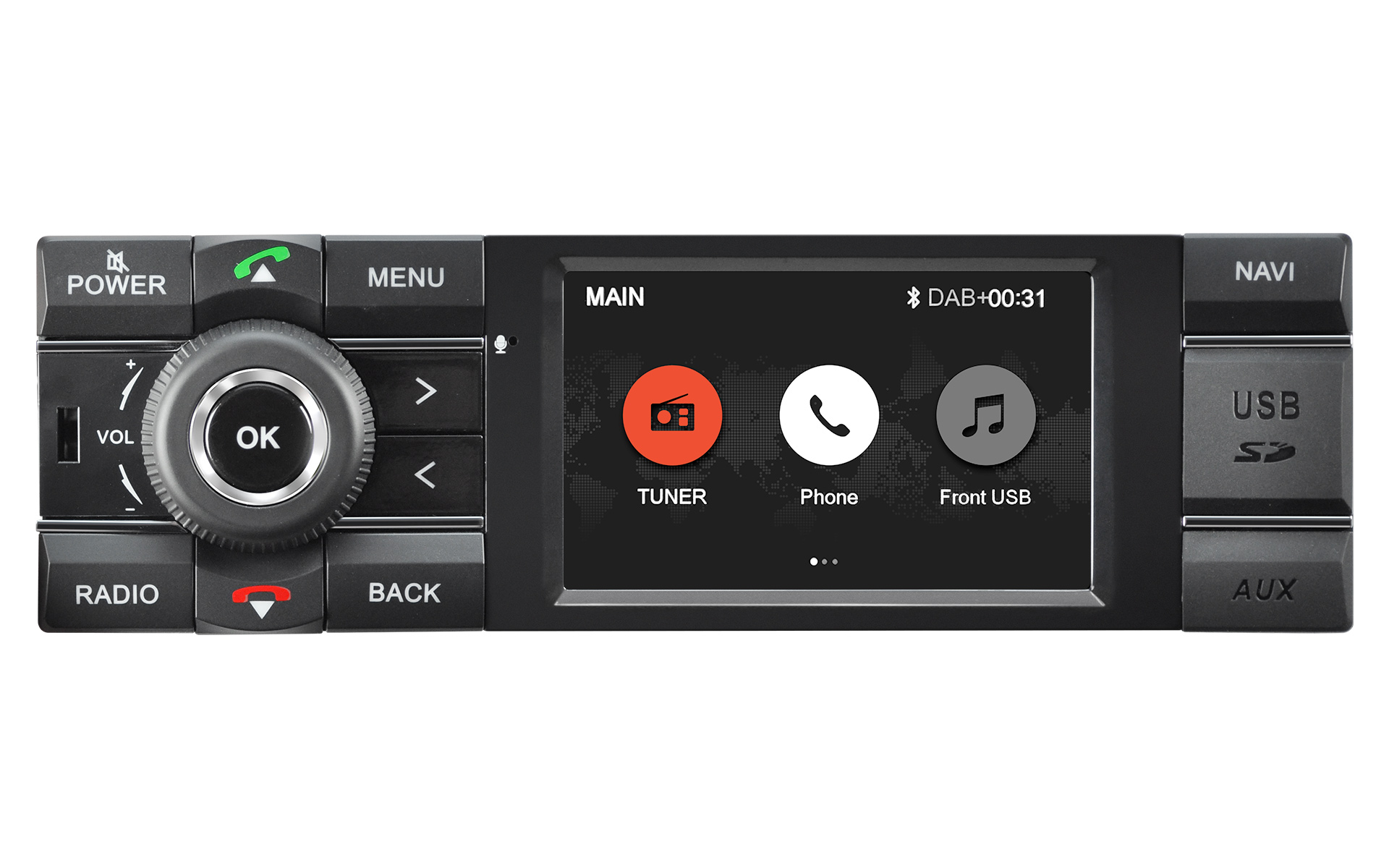

High-End 1DIN Navigation Car Radio with 3.5 inch Touch-Screen LCD-TFT Display.
DAB+, AM/FM-Radiotuner, Bluetooth, USB, MFi

request product find a merchant
  • description

    The MCR 1031NAV combines high-end Tuner technology, clear design and state-of-art gps navigation in an 1DIN unit. By it’s clear operational concept and the professional design it is easy to use in cars, commercial vehicles as well as classic cars.

    • Built-in DAB+ Digitalradio Tuner
    • High performance AM/FM RDS dual-tuner
    • Highresolution 3.5" TFT LCD Display (800 × 480 Pixel) with touch-screen

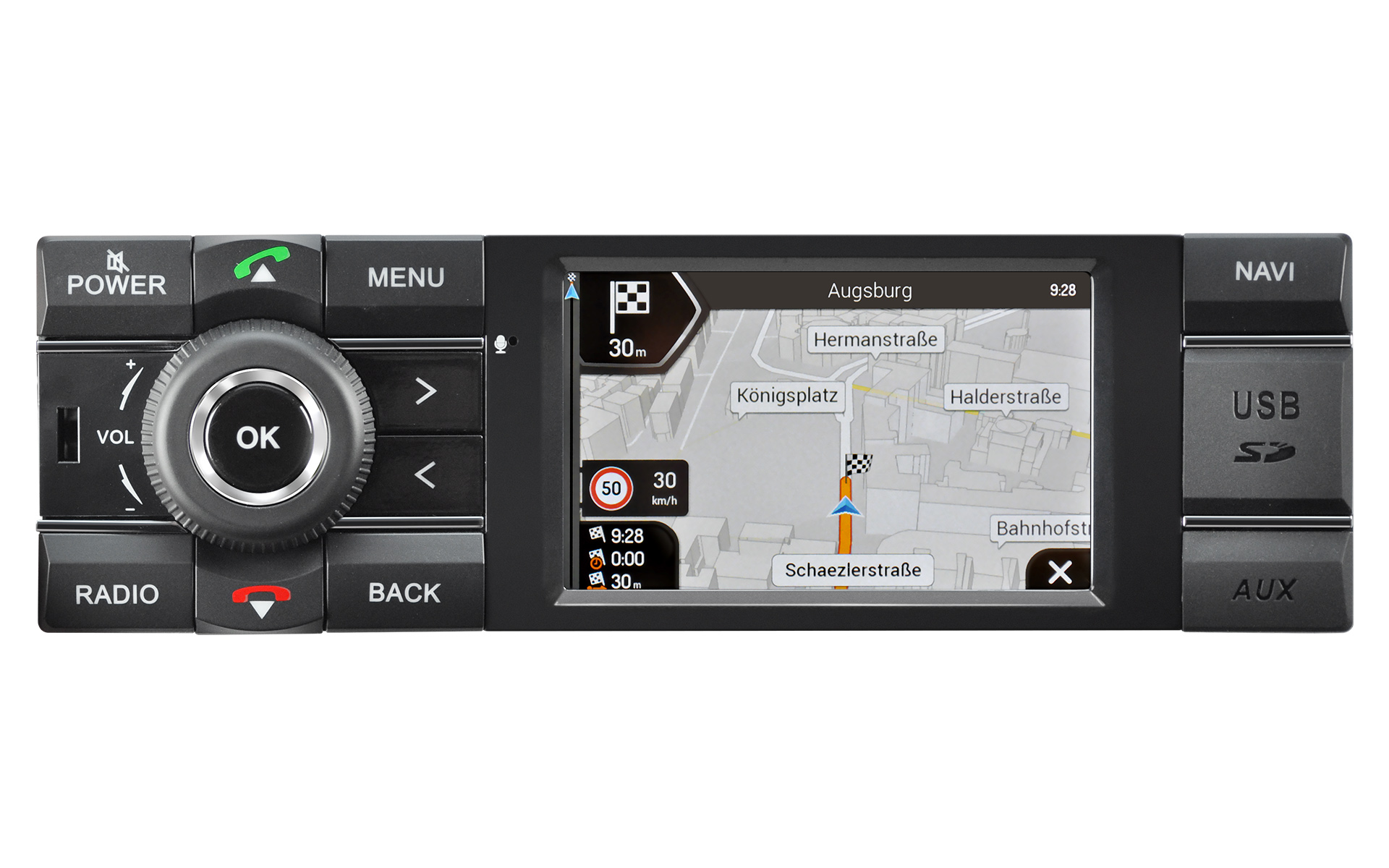

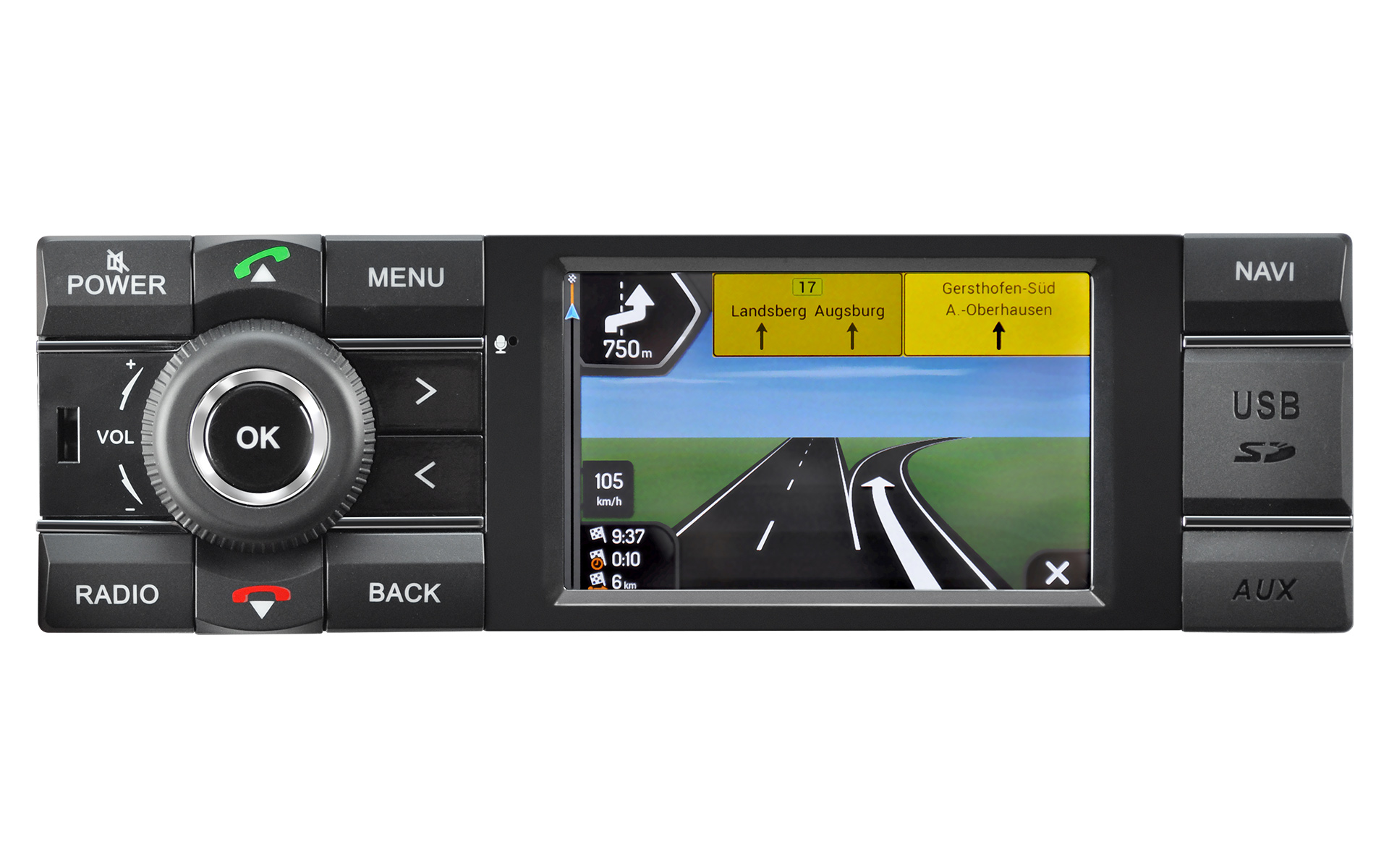

    • Built-in GPS-Navigation Navigationsoftware (on MicroSD) available as CAR or Truck Version.
    • Built-in TMC
    • Built-in Bluetooth-Module (Parrot Chipset) for Handsfree and A2DP
    • Built-in or external microphone (selectable)
    • SWC connection (a separate vehicle specific interface will be needed)
    • Front USB for music and iPod/iPhone connection – Mfi (Made for iPhone/iPod)
    • 1 × Rear-USB (up to 32GB)
    • Supported music formats: MP3, WMA & FLAC
    • Front AUX-in
    • 4 Ch × max. 41 W Amplifi er
    • 4 × Line-Out / 1 × Subwoofer-out
    • RearView Camera-input (RCA)
    • Intelligent Power-& Memory management
    • Antenna Interface:
      FM: FAKRA
      DAB+: SMB
      GPS: FAKRA
    • 12V phantom power for FM & DAB+ Antenna (selectable)
    • Power Supply: 12V DC
    • Dimensions (W × H × D): 188 × 58 × 174 mm

      Available in 2 Versions:
    • MCR 1031NAV CAR Car-Navigation
      With car navigation software for full Europe (47 Countries East-/Western Europe, TomTom Maps), 30 languages

    • MCR 1031NAV Truck Truck-Navigation
      With truck navigation software for full Europe (47 Countries East-/Western Europe, HERE), 30 languages
  • shipment
    • MCR 1031NAV Headunit
    • Navigation-MicroSD Card ( Car or Truck Version)
    • GPS-Antenna
    • Accessory Cables
    • User Manual
  • downloads

    MCR 1031NAV - Transporter Flyer


    MCR 1031NAV - Oldtimer Flyer

Technical changes and errors excepted.
