Mercedes


Solutions for Mercedes trucks

AXION solutions for retroffiting commercial vehicles of Mercedes

Mercedes-Benz Combiinstrument / Cluster Display
ICUC V Lines (J1C)

By Mercedes vehicles which are fitted with the ICUC V Lines (code J1C) a rear-view camera can be retrofitted and displayed on the Cluster display.

Mercedes-Benz Monitorradio (TCC)

There are two variants for vehicles which are equipped with the TCC-Monitor radio. By vehicles with the pre-fitting code J9J you need the adapter CA-MB2 and for vehicles without this preperation you need the adapter CA-MB1, to retroffit a rear-view camera.

Adapter for preparation J1C for retrofitting an AXION rear-view camera



Mercedes-Benz Monitorradio (TCC)

There are two variants for vehicles which are equipped with the TCC-Monitor radio. By vehicles with the pre-fitting code J9J you need the adapter CA-MB2 and for vehicles without this preperation you need the adapter CA-MB1, to retroffit a rear-view camera.



Adapter radio system to retrofit an AXION rear view camera

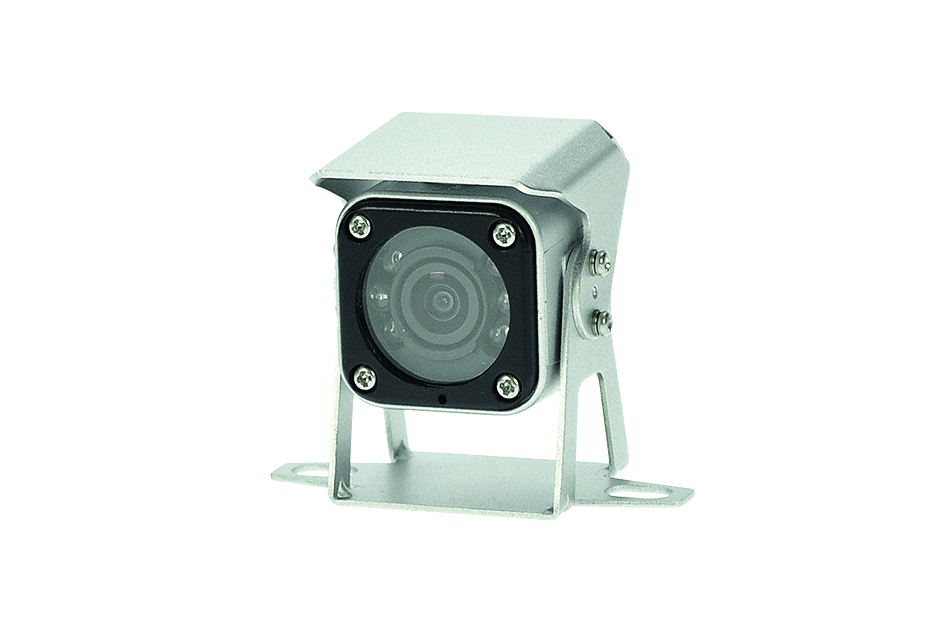

Rear-View Cameras Perfect for retrofitting in connection with the Adaptions above

W-light LED light strip

1605-NS3821 W-light LED light strip 60W

W-light LED light strip 60W

request product find a merchant

  • - Housing made of die-cast aluminium

    - Vibration and shock resistant

    - Lateral and adjustable bottom bracket

    - Approvals: R10, R112 (E9)

    - Polycarbonate lens and headlight lens

    - DT contact included

    - Slim model, suitable for installation of a grille

    - Approved as high beam (Note: The Swedish Road Safety Authority requires additional high beams to be fitted in pairs, i.e. 2 are required)



    Estimated installation time: 1 hour

  • Consumption 60W, 12x5W Osram P8 LED diodes
    Light colour 5,700 Kelvin
    Ref 30
    Lumen 5,040 (theoretical)
    Lumen 3.186 (measured)
    Illumination type beam, main beam
    Protection class IP68
    Operating temperature -40° to +85°C
    Voltage 10-32V DC
    Dimensions 360x32.5x68mm
Technical changes and errors excepted.



Cameras Perfect for retrofitting in connection with the Adaptions above
