Interface for camera upgrade for VW/AUDI/PORSCHE MIB systems


The MI6-MIB-PNP interface allows easy retrofitting of up to 2 cameras (front and rear view camera) to the original factory system of the respective car manufacturer.
The connection of the interface is "Plug & Play" - no modification of the original vehicle wiring harness is necessary.
In addition, the interface offers 2 side camera inputs.

It is automatically connected from all operating modes to the existing factory and retrofit cameras as required and automatically switched back to the previous operating state after the shunting process is completed.

    • Picture-in-Picture (PIP) modes for combining retrofit camera image(s)
    • Dynamic parking aid lines with calibration function
    • Simultaneous use of picture-in-picture factory parking distance sensor display and dynamic parking aid lines
    • Own on-screen display for setting changes
    • Rear view camera input
    • Automatic switching to rear view camera input when engaging reverse gear from all operating modes
    • Front camera input
    • Sides Camera inputs
    • Side or front camera activation via indicator function
    • Manual switching to cameras possible
    • 2 switching outputs (+12V max. 1A), separately adjustable switching criteria (CAN, ignition, camera, reverse gear)
    • Compatible with all factory video applications
    • USB update port for software updates

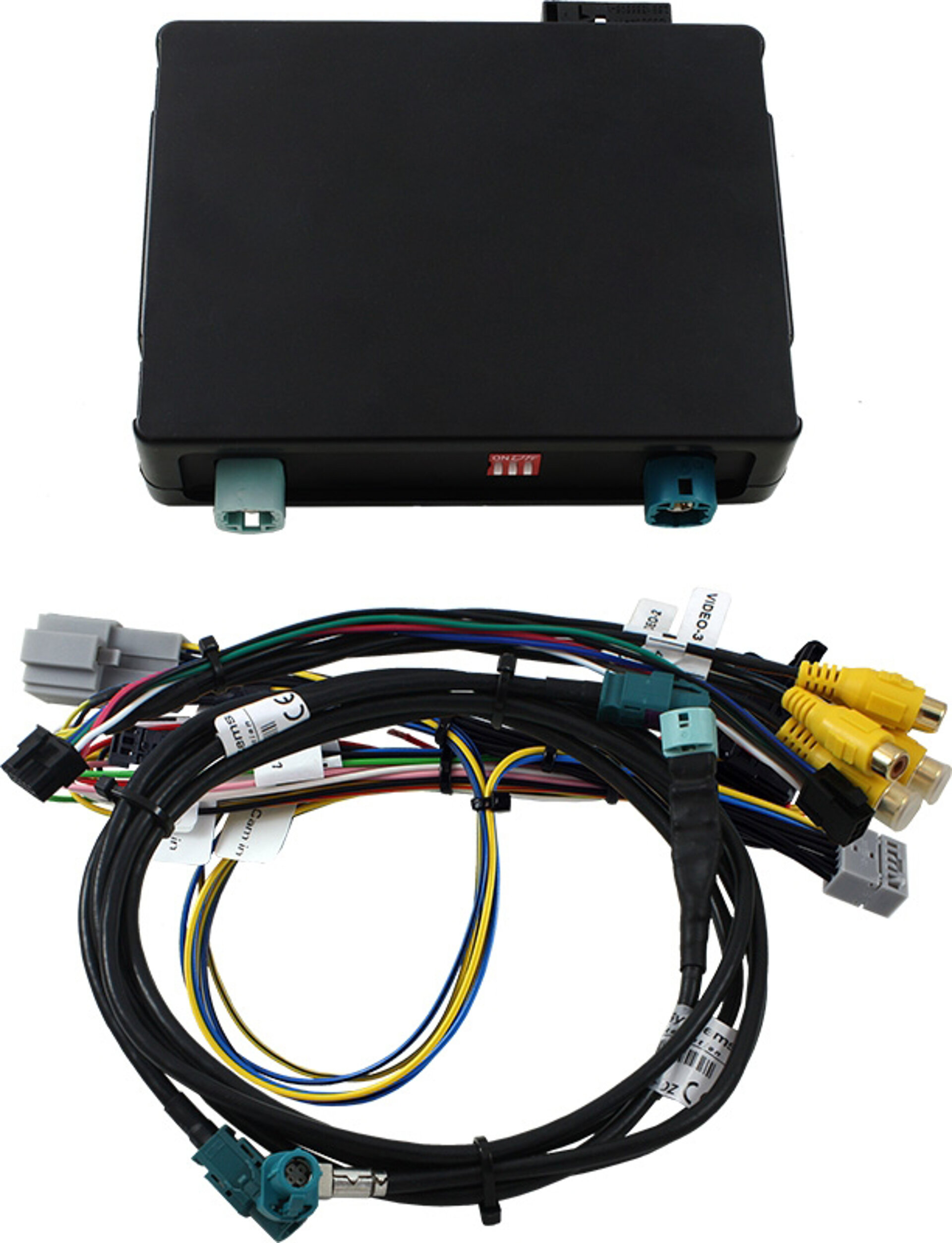

    • Interface box
    • Plug & Play - cable set
    • 2x LVDS cables
    • Operating instructions
  • Audi with MMI Navigation Plus with MMI Touch 7" or 8.3" - MIB/MIB II Main Unit:

    • A3 (8V) from 05/2012-
    • A4 (8W) from 08/2015-
    • Q7 (4M) from 03/2015-

    Porsche with PCM 4.0:

    • Boxster
    • Cayenne

    Skoda with MIB - Amundsen - 8 inch monitor:

    • Octavia3 (5E) MJ 2017 -

    VW with MIB/MIBII Composition Media/Discover Media - 5.8 inch and 6.5 inch monitor:

    • Golf7 MJ 2015-
    • Golf7 Sportsvan MJ 2015-
    • Passat (B8) MJ 2016-

    VW with MIB/MIBII Discover Pro - 8 inch monitor:

    • Passat (B8) MJ 2016-
Technical changes and errors excepted.
