Interface for rear-view camera input coding & TV-Free for Chrysler, Dodge, Jeep, RAM with Uconnect 5 inch or 8.4 inch system and 52 pin connector

MI-UCON52

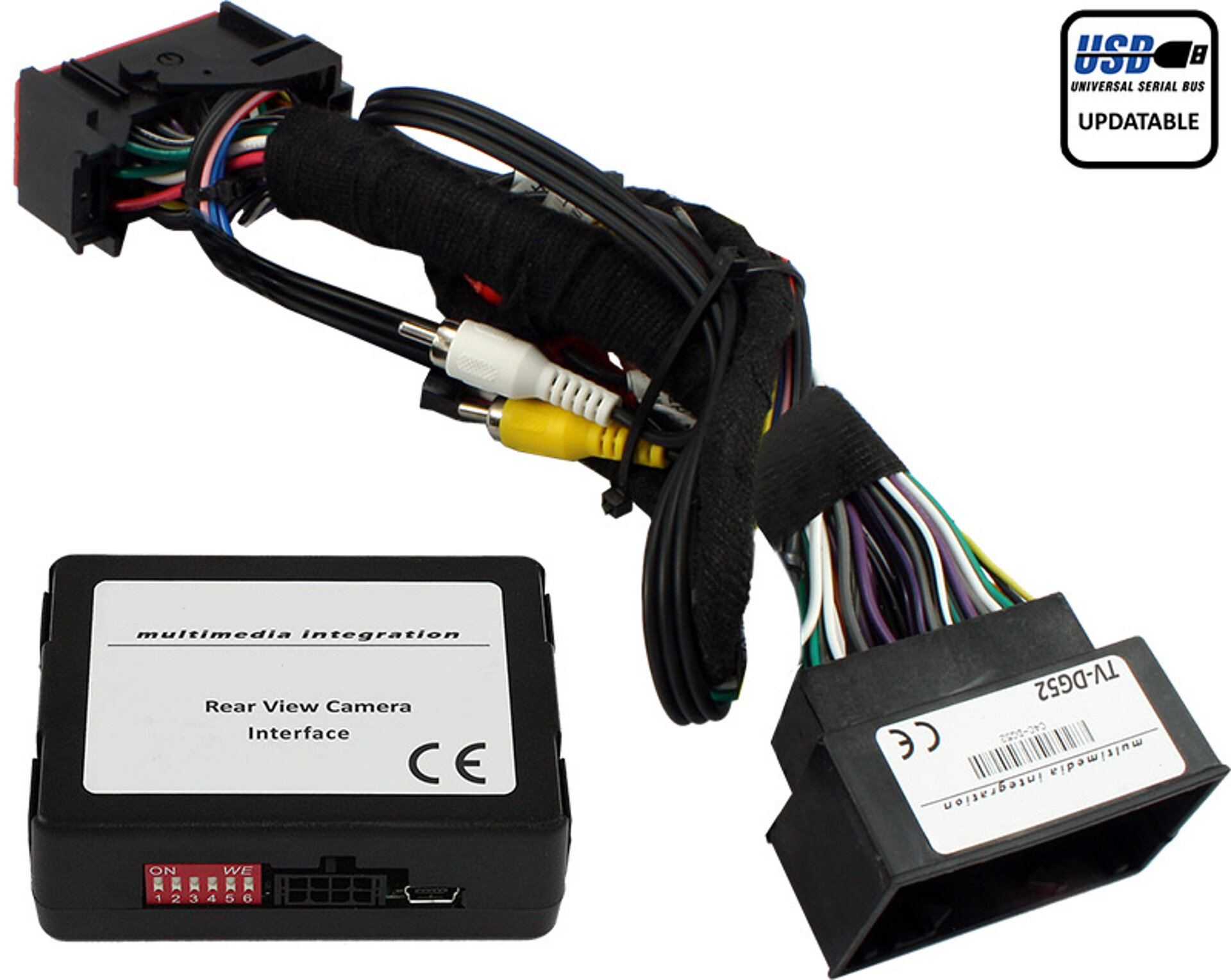

The interface MI-UCON52 allows the easy connection of a rear-view camera to the original system of the manufacturer.
A Coding of the rear view camera is necessary and can be carried out directly by the interface.
TV-Free is included.

request product find a merchant
  • description
    • 1 x Rear-view camera input incl. coding
    • Camera power supply output (+ 12V max. 500mA)
    • TV-Free while driving
    • The automatic changeover to the rear-view camera is carried out by put in the reverse gear
    • Optional coding of the park assistant guide for retrofitting factory PDCs
    • USB Update port for several software updates
    • Installation Plug & Play
  • specifications
    Working current <2mA
    Rated current ~60mA
    Power consumption ~0,08W
    Voltage working range 6.0 V up to 14.8V
    Operation temperature -35 °C up to + 85 °C
    Weight 53 g
    Dimensions (W x H x D) 72 x 23 x 50mm
  • shipment
    • CAN-box
    • Plug & Play cable kit
    • Instruction manual
  • compatibility

    Chrysler, Dodge, Jeep, RAM vehicles with Uconnect 5 "or 8.4" system and 52 pin connector.
    For vehicles "WITHOUT" original rear-view camera of the manufacturer.

    Dodge with Uconnect 8.4AN/RA4 and 8.4A/RA3, 5.0/RA2:

    • RAM 1500/2500/3500 model years 2013-
    • Durango model years 2014-
    • Viper model years 2013-
    • and other vehicles with All-in-One Head-Unit

    Jeep with Uconnect 8.4AN/RA4 and 8.4A/RA3, 5.0/RA2:

    • Cherokee
    • Grand Cherokee model years 2014 and
    • other vehicles with All-in-One Head-Unit
Technical changes and errors excepted.
