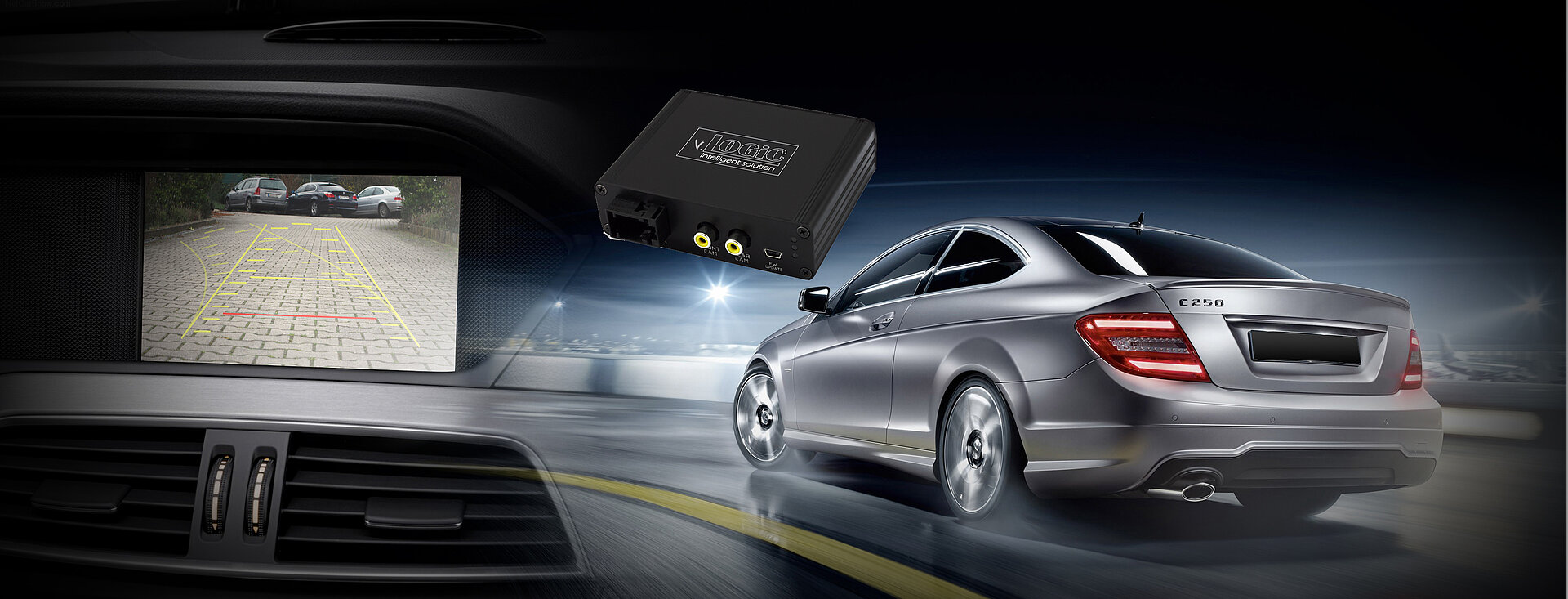

Interface to retrofit a rear-view camera for MERCEDES Comand Online NTG4.5 or Audio20 NTG4.5 incl. guide lines

MI-NTG45RV

The MI-NTG45RV interface allows easy retrofitting of up to 2 cameras (front and rear view camera) including switchable guide lines to the original factory system of the respective car manufacturer.
The connection of the interface is "Plug & Play" - no modification of the original vehicle wiring harness is necessary.

request product find a merchant
  • description
    • Control is via the original factory infotainment
    • Settings can be changed via a separate on-screen menu

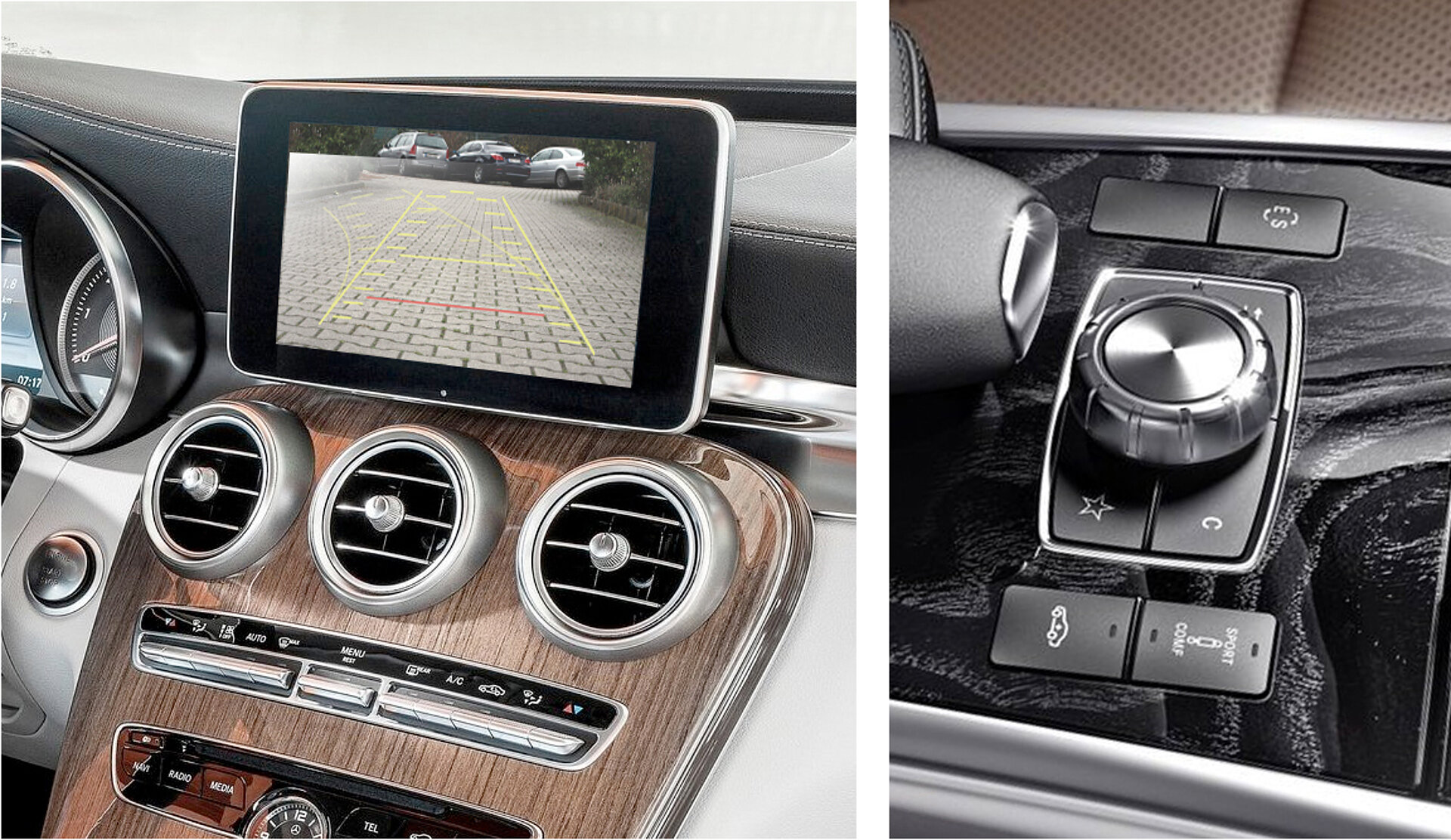

    • 1 x rear view camera input incl. display of guide lines
    • 1 x front camera input
    • By engaging reverse gear, the automatic switchover to the rear view camera takes place
    • In the OSD adjustable switching logic for the display rear view camera (e.g. reverse gear or with caster up to 20 seconds / 20km/h)
    • Manual switching to rear view camera possible
    • Manual activation of rear and front camera (interruption of automatic switching) possible
    • Compatible with all factory video applications (e.g. rear view camera, DVD changer, TV tuner)
    • USB update port for software updates
    • Installation Plug & Play
    • Video activation

    !!! No coding of the vehicle manufacturer necessary !!

  • specifications
    Working current ~190mA
    Rated current <0,1mA
    Power consumption ~2.6W
    Voltage working range 10.5V to 14.8V
    Operation temperature -30°C to +80°C
    Weight 284g
    Dimensions 141 x 30 x 105 mm
  • shipment
    • Interface-Box
    • Plug & Play cable kit
    • 2 LVDS cable
    • Instruction manual
  • compatibility

    Mercedes Benz with 6“ / 7“ Monitor and 4-Pin HSD LVDS connection, Comand Online NTG4.5 and Audio20 NTG4.5:

    • A-Class (W176) from 07/2012 to 08/2015
    • B-Class (W246) from 11/2011 to 10/2014
    • C-Class (W204) from 03/2011 to 10/2014
    • C-Class Coupé (C204) from 06/2011 to approx. 2014
    • CLA-Coupé (C117) from 01/2013 to approx. 09/2014
    • CLS-Coupé (C218) from 06/2011 to approx. 07/2014
    • E-Class (S / W212) from 06/2011 to approx. 10/2014
    • E-Class Coupé (C207) from 06/2011 to approx. 05/2015
    • G-Model (G463) from 07/2012 to 09/2016
    • GL-Class (X166) from 11/2012 to 08/2016
    • GLA Class (X156) from 09/2013 to approx. 08/2015
    • GLK Class (X204) from 01/2011
    • ML-Class (W166) from 11/2011 to 07/2015
    • SLK-Class (R172) from 03/2011 to approx. 2015
    • SL-Class (R231) from approx. 2012 to approx. 09/2015
Technical changes and errors excepted.
