Interface to retrofit a rear-view camera for MERCEDES Audio20 and Comand Online NTG5 / NTG5.1 systems Plug & Play

MI5-NTG5-PNP

The MI5-NTG-PNP allows to retrofit 2 cameras(front and rear-view camera) to the original system of the manufacturer.
The connection of the interface is "Plug & Play"- there is no need to modificate the original vehicle wiring harness.

    • Settings are changed via a separate on-screen menu
    • 2 switching outputs (+ 12V max. 1A), adjustable switching logic (CAN, ignition, reversing camera, reversing)
    • 1 x rear-view camera input
    • 1 x front camera input
    • The automatic changeover to the reversing camera is carried out by put in the reverse gear
    • Manual changeover to rear view camera is possible
    • Manual activation of rear view and front camera
    • Compatible with all factory video applications (e.g., rear view camera, DVD changer, TV tuner)
    • USB-port for software updates

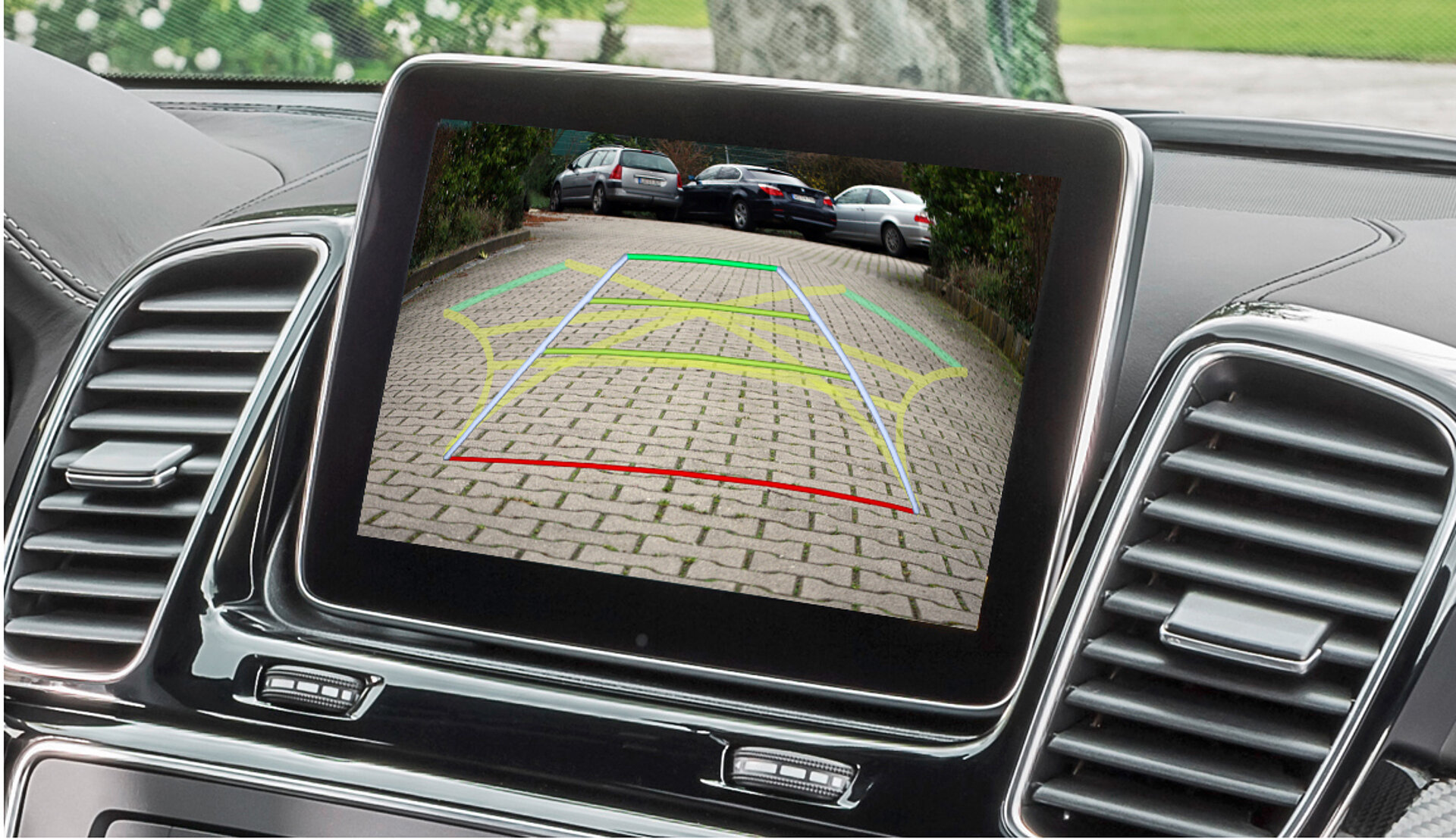

    • Dynamic guide lines for parking
  • Working current ~190mA
    Rated current <0,1mA
    Power consumption ~2.6W
    Voltage working range 10.5V bis 14.8V
    Operation temperature -30°C bis +80°C
    Weight 208g
    Dimensions 103 x 30 x 105mm

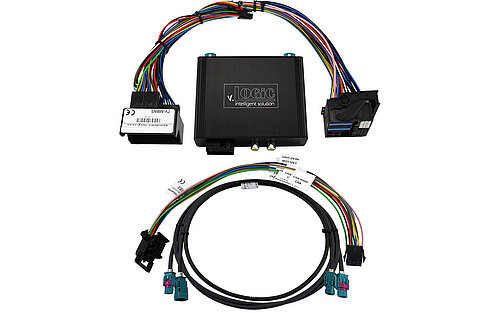

    • Interface-box
    • Plug & Play cable kit
    • LVDS cable
    • Instruction manual
  • Mercedes with Comand Online NTG5/NTG5.1, Audio20 CD NTG5/NTG5.1, Audio20 USB NTG5/NTG5.1
    Only for vehicles without factory TV tuner:

    • A-class (W176) from 09/2015
    • B Class (W246) from 11/2014
    • C-Class (W205) until approx. 06/2018
    • C-Class Coupé (C205) from approx. 2015
    • CLA Coupé (C117) from approx. 10/2014
    • CLA Shooting B (X117) from 03/2015
    • CLS Coupé (C218) from approx. 08/2014 to 01/2018
    • CLS Shooting B (X218) from approx. 08/2014
    • E-Class (S/W212) from approx. 11/2014
    • E-Class Coupé (A/C207) from approx. 06/2015 to 08/2017
    • G-model (G463) from 10/2016
    • GL-Class (X166) from 09/2016
    • GLA (X156) from 09/2015
    • GLC (X253)
    • GLE class (C292)
    • GLS class (X166) from approx. 11/2015
    • GT AMG (C190)
    • ML class (W166) from 08/2015
    • SL class (R231) from approx. 10/2015
    • SLC class (R172) from 2016
    • V Class (W447) from 2014
Technical changes and errors excepted.
