Interface to retrofit a rear-view camera for BMW vehicles of the F-Series, MINI with CIC-Navigationssystem or Radio Plug & Play


The MI5-CIC-F-PNP allows to retrofit 2 cameras(front and rear-view camera) to the original system of the manufacturer.
The connection of the interface is "Plug & Play"- there is no need to modificate the original vehicle wiring harness.

    • Settings are changed via a separate on-screen menu
    • 2 switching outputs (+ 12V max. 1A), adjustable switching logic (CAN, ignition, reversing camera, reversing)
    • 1 x rear-view camera input
    • 1 x front camera input

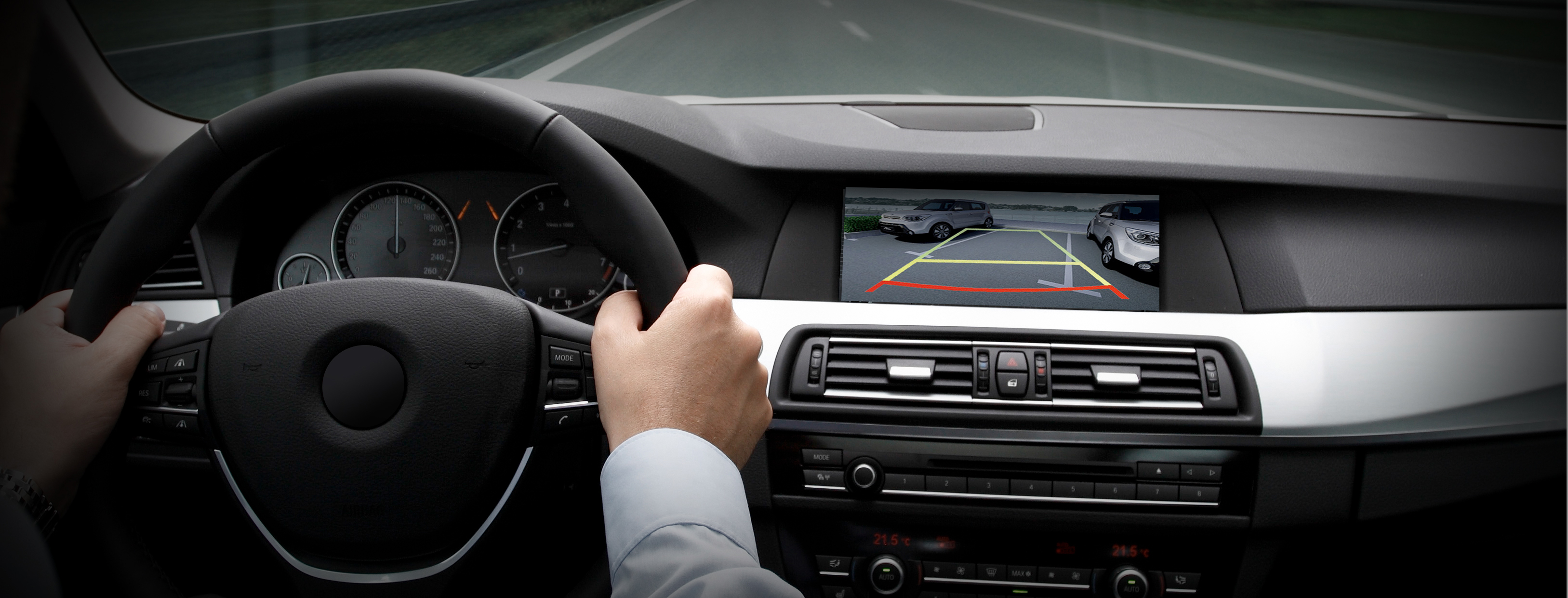

    • The automatic changeover to the reversing camera is carried out by put in the reverse gear
    • Manual changeover to rear view camera is possible
    • Manual activation of rear view and front camera
    • Compatible with all factory video applications (e.g., rear view camera, DVD changer, TV tuner)
    • USB-port for software updates
    • Installation Plug & Play
  • Working current <0,1mA
    Rated current ~190mA
    Power consumption ~2.6W
    Voltage working range 10.5V - 14.8V
    Operating temperature range -30°C bis +80°C
    Weight 284 g
    Dimensions 141 x 30 x 105 mm

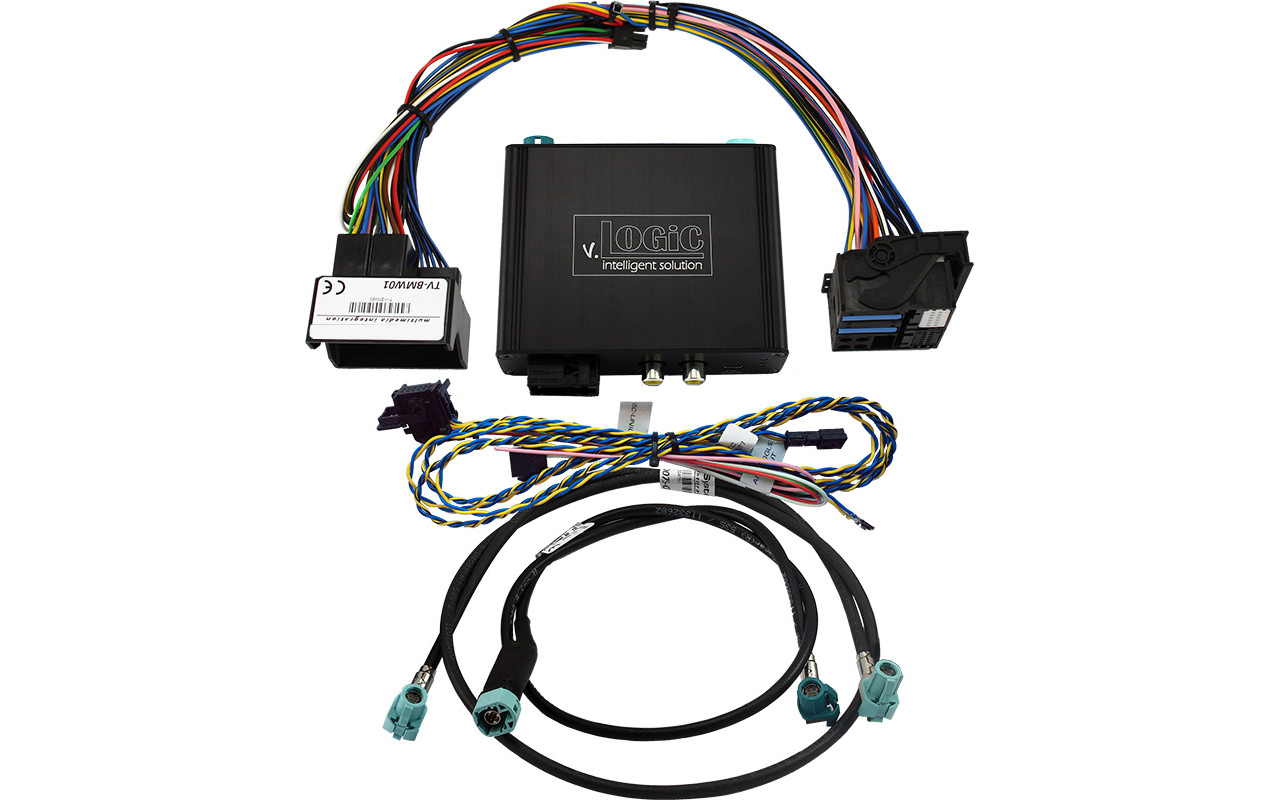

    • Interface-box
    • Plug & Play cable kit
    • 2 x LVDS cable
    • Instruction manual

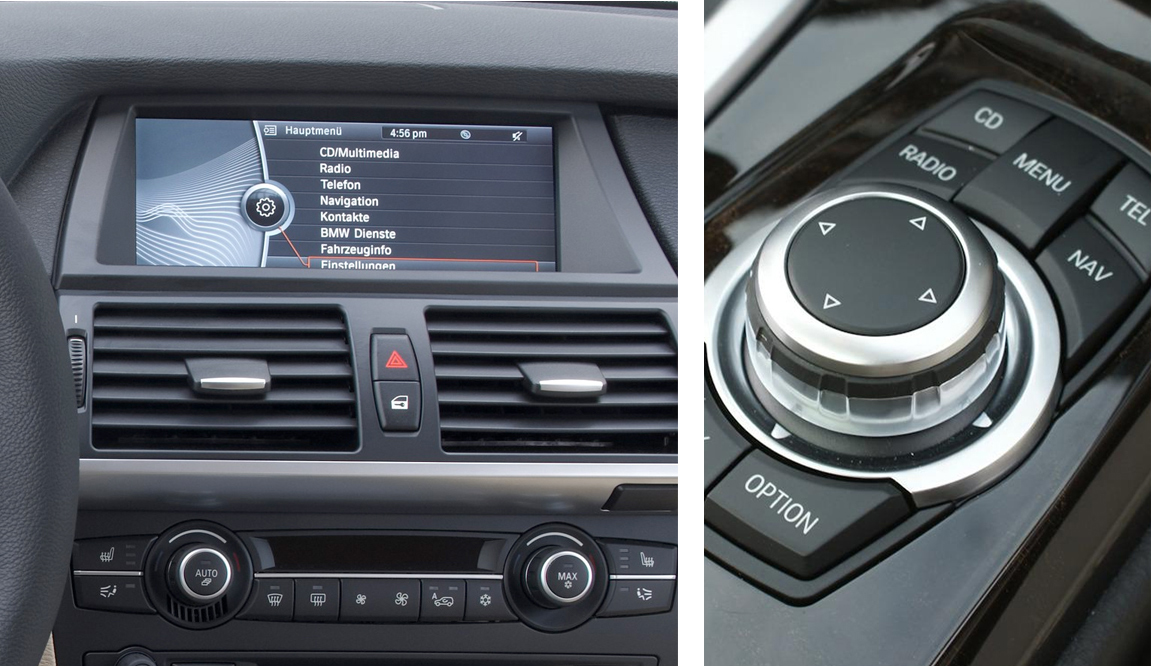

  • BMW with Professional Navigation CIC, Business Navigation M-ASK, Radio CHAMP - F Series - 6.5", 7", 8.8" or 10.25" monitor:

    • 5 Series (F10/11)
    • 6er (F12/F13)
    • 7 series (F01/F02)
    • GT5 (F07)
    • X3 (F25) with 8-button iDrive
Technical changes and errors excepted.
