RVC-In CAN BUS Interface for VW, Skoda, Seat(MQB plattform)

CA-VWM01

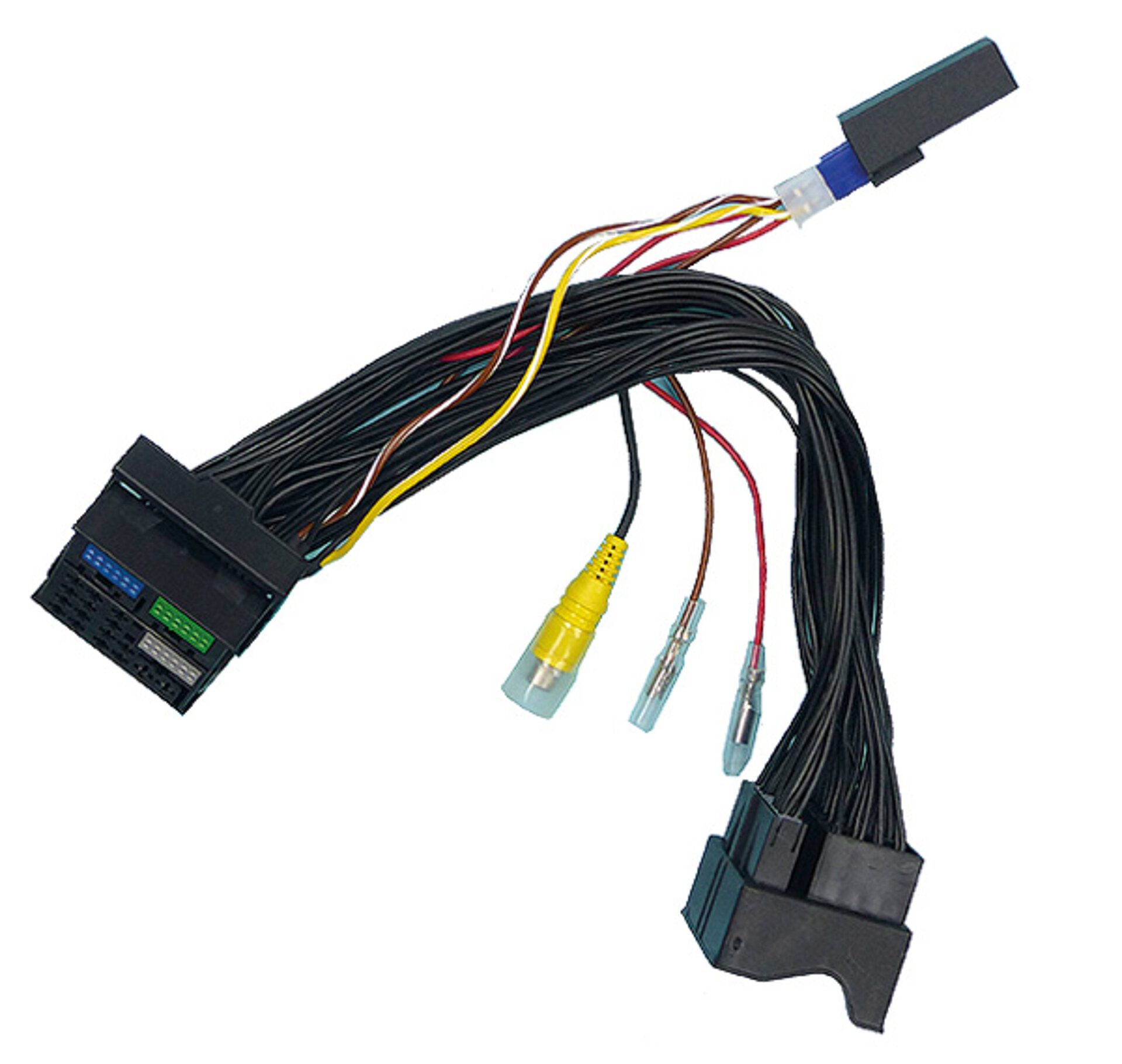

Interface kit for connecting a rear view camera on original VW, Skoda, Seat radios of the MIB generation Plug & Play harness with CAN BUS Interface.

request product find a merchant
  • description
    • Interface kit for connecting a rear view camera on original VW, Skoda, Seat radios of the MIB generation
    • Plug & Play harness with CAN BUS Interface
    • The CAN BUS Interface provides the following signals: +12V reversing signal; +12V Ignition
    • The following original radios can currently be coded by VCDS or VW diagnosis to rear-camera :
      VW: Composition Media, Discover Media, Discover Pro
      Skoda: Bolero, Amundsen, Columbus
      Seat: Mediasystem Plus, Navigation
    • Coding is possible, but only for vehicles with min. PDC in the back
    • 1 camera-input (RCA), 50 cm cable length
    • Maximum total current for both outputs together 200mA

    Plug & Play Installation – No modification on the original cable harness necessary!
    Provides all needed signals – No hassle by searching signals and extra wiring!
    Saves time and costs on the installation!

    (*only to be used in combination with NTSC cameras)

  • compatibility

    Vehicles:

    • VW T6 (2015-)
    • VW Caddy 4 (2015-)
    • VW Golf 7 (AU, 2012-)
    • VW Passat B8 (3G, 2014-)
    • VW Polo (6C, 2014-)
    • VW Sharan II (7N, 2015-)
    • VW Touran II ( 5T, 2015-)
    • VW Crafter (2017-)
    • Skoda Octavia III (2014-)
    • Skoda Superb III ( 2015-)
    • Seat Leon (5F)
    • Audi A3 (8V, 2012-)
  • downloads

    CA-VWM01 - Datenblatt

    Download

    VW T6 - Nachrüstlösungen

    Download

    MAN TGE & VW Crafter - Nachrüstlösungen

    Download
Technical changes and errors excepted.
