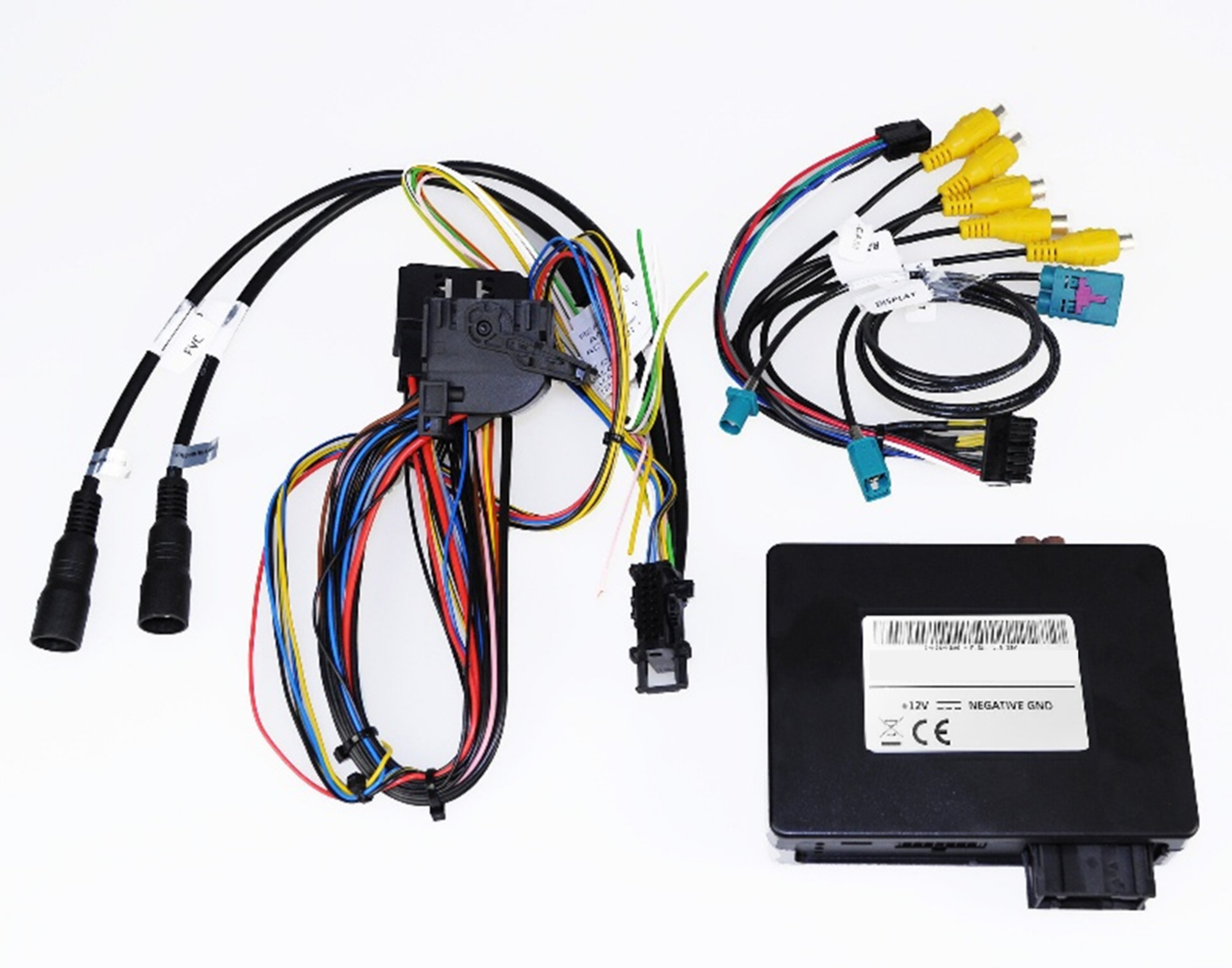

Camera-video interface for Mercedes-Benz MBUX 2G NTG7

MI7-MBN7

Plug-and-play video interface for cameras on Mercedes-Benz 10.25" multi-touch displays and MBUX 2G NTG7 (26-pin)

request product find a merchant

  • Camera interface for the retrofitting of AXION cameras (reversing camera, side camera, front camera, etc.) in Mercedes-Benz Sprinter W907/W910 from model year 2024 onwards with a (26 cm/10.25") multi-touch display / MBUX2G

    • 4x camera inputs (2x AXION MinDIN, 2x RCA) (rear-view, front and side camera inputs)
    • Automatic switching to camera input when reverse gear is engaged
    • Front/side camera activation via indicator function
    • Can be used in combination with the original GSRII camera
    • Manual trigger/switching signals possible
    • CVBS & AHD (720p/1080p, PAL/NTSC) with automatic format detection. Picture format individually adjustable for each input
    • Dedicated on-screen display (OSD) for all settings
    • USB-C update port for software updates and configuration via our configuration/flash tool
    • Plug-and-play cable set for easy installation



  • Power supply10.5 – 14.8 V
    Standby current consumption1 mA
    Current consumption (operating)190 mA
    Power consumption2.6 W
    Temperature range-20 to +80 °C
    Weight (box only)285 g
    Dimensions (box only) (W x H x D)141 x 30 x 105 mm
    Switching outputs2 x 12 V (max. 1 A)



    • Sprinter/V-Class from 2024
    • MBUX 2G NTG7, 26-pin
Technical changes and errors excepted.
