Front camera with perspective change

DBC 114029 FV

Versatile front camera with change of perspective at the push of a button
Perspectives: Side & Front view, side view, close up view front (switchable)

request product find a merchant
  • description

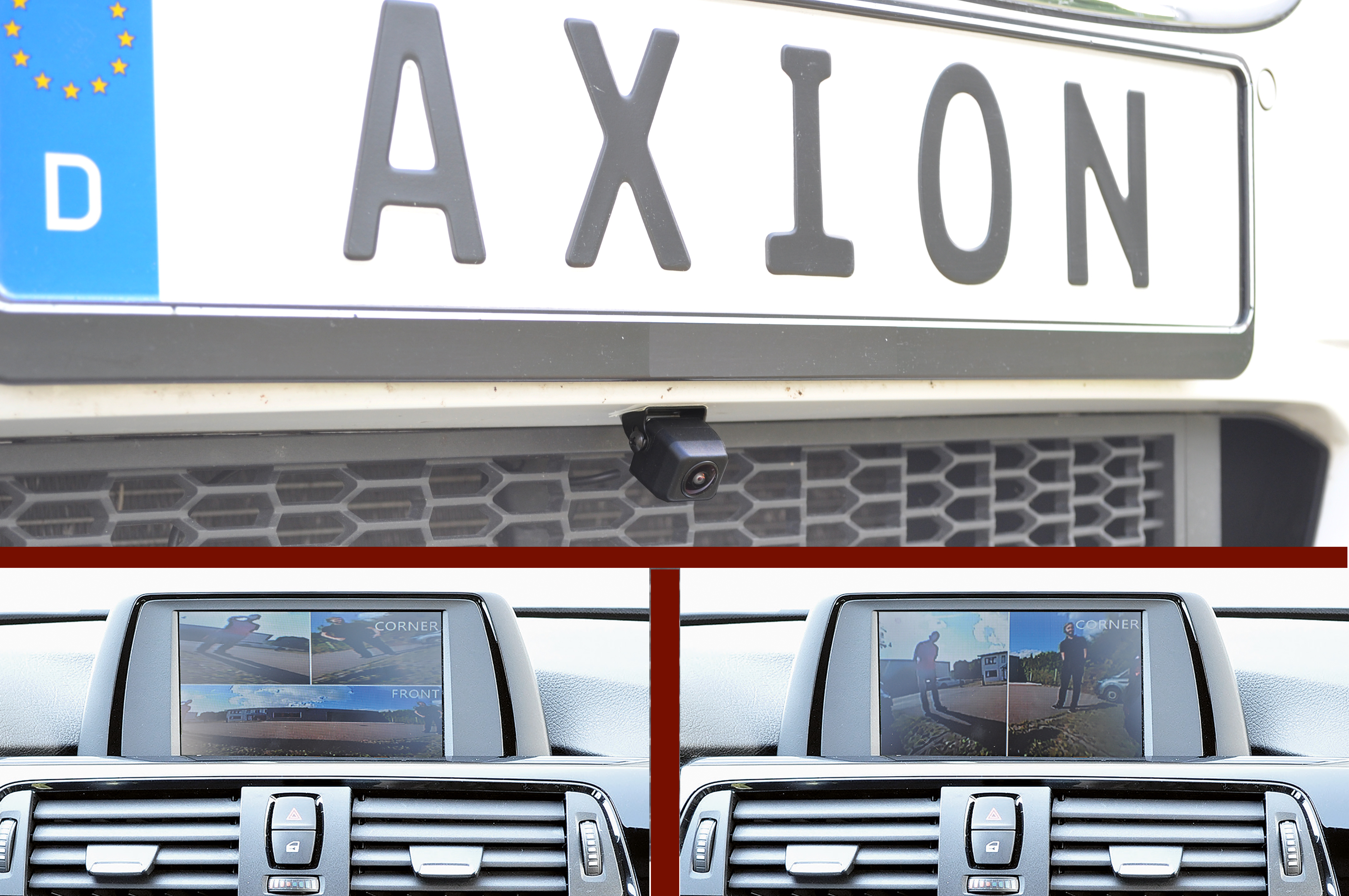

    Blind spots and hidden obstacles jeopardize the safety of drivers, pas-sengers, pedestrians and objects. AXION’s innovative DBC 114029FV Split View Front Camera technology provides a comprehensive overview of the environment and warns drivers of obstacles even on blind junctions.

    The compact and versatile camera measures 21 x 22 x 24 mm and is designed for quick and easy integration. It provides extended overviews thanks to switchable side-, front- and front-close up view and wide view-ing angle.

    • Versatile front camera with change of perspective at the push of a button
    • Perspectives: Side & Front view, side view, close up view front (switchable)
    • Wide viewing angle (200° diagonal)
    • Protection class IP68
    • Illumination 0,5 Lux
    • Very small design
    • Easy to install
  • specifications
    Image-Sensor 1/4 " CCDS sensor
    Resolution 384.000 pixels ; 420 TV lines
    Visual angle 200°
    Lens
    Illumination 0,5 Lux
    Video-System NTSC
    Mirror-Function
    Guide-Lines
    Camera-Input RCA
    Protection class IP 68
    Integrated heating
    Operating temperature range -40 °C bis + 85 °C
    Vibration resistant 6 G
    Power supply 12 V
    Power consumption max. 60 mA
    Dimensons (WxHxD) 21x22x24 mm
    Weight
    Certification ECE-R10
  • shipment

    DBC 114029 FV - Camera

    5 m connection cable (RCA)

  • downloads

    DBC 114029 FV - Datenblatt

    Download
Technical changes and errors excepted.
