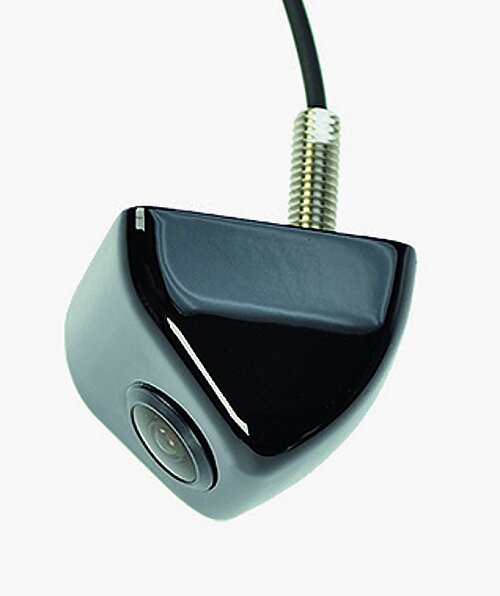

Universal applicable multi-camera

DBC 114021 Multi

Universal applicable multi-camera.
For rear or side view, for mounting or submounting.
PAL/NTSC switchable, mirror/normal switch, flip able.
Super compact design.

request product find a merchant
  • description
    • Universal applicable multi-camera!
    • For rear or side view, for mounting or submounting!
    • PAL/NTSC switchable, mirror/normal switch, flip able
    • Super compact design
    • Easy to install with very small drilling
    • Wide viewing angle 160°
    • Minimum illumination > 0,3 lux
    • Protection class: IP68
  • specifications
    Image-Sensor 1/3 " CMOS Sensor
    Resolution 380.000 Pixel
    Visual angle 160°
    Illumination 0,3 Lux
    Video-System PAL/NTSC umschaltbar
    Mirror-Function ja
    Camera-Input RCA
    Protection class IP 68
    Operating temperature range -40 °C bis + 70 °C
    Power supply 12 V
    Power consumption max. 40 mA
    Dimensons (WxHxD) 39x26,5x36,5 mm
    Weight 95 g
    Certification ECE-R10
  • shipment

    DBC 114021 Multi - Camera

    7,5 m connection cable (RCA)

  • downloads

    DBC 114021 Multi - Datenblatt

    Download
Technical changes and errors excepted.
