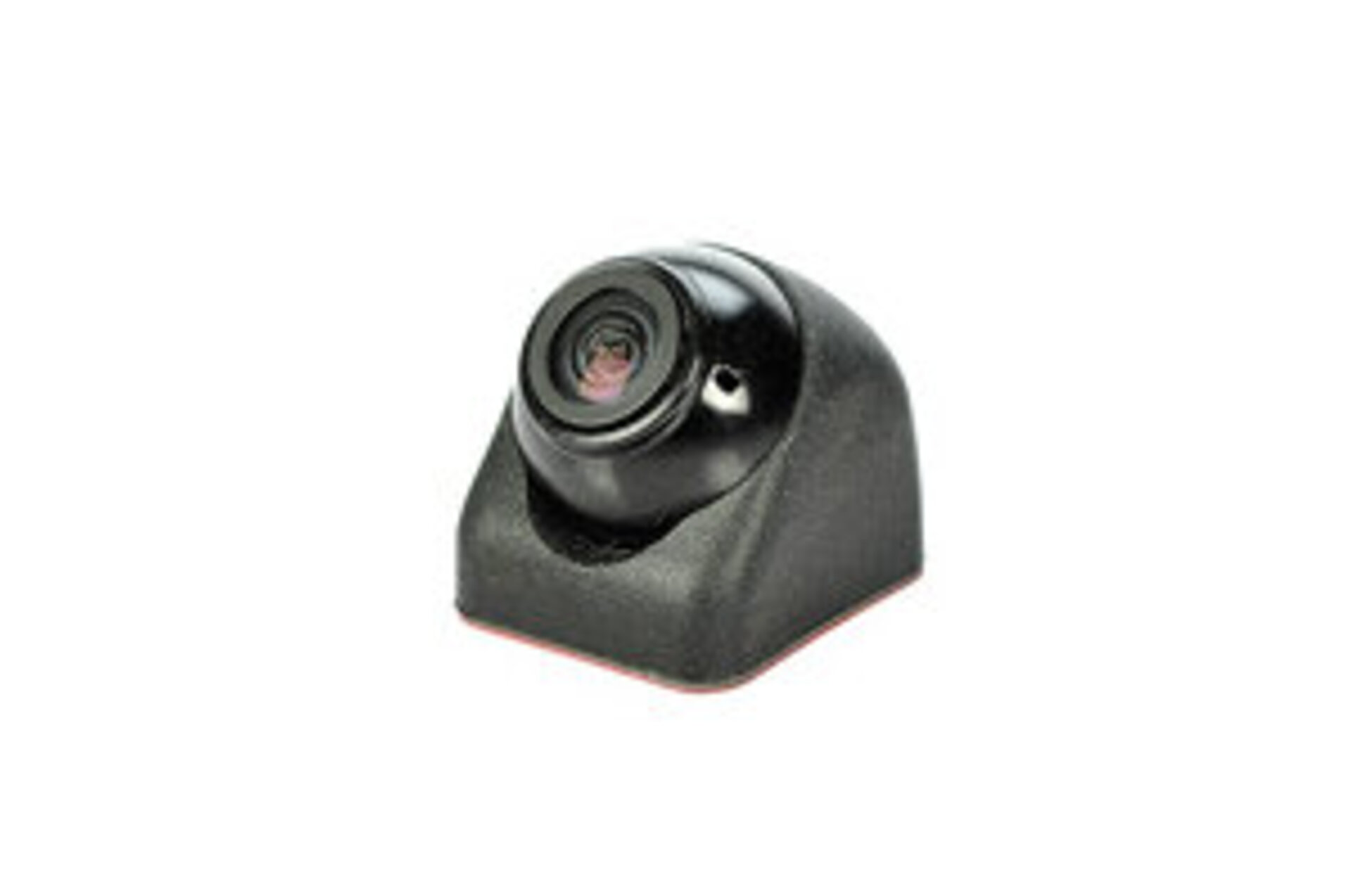

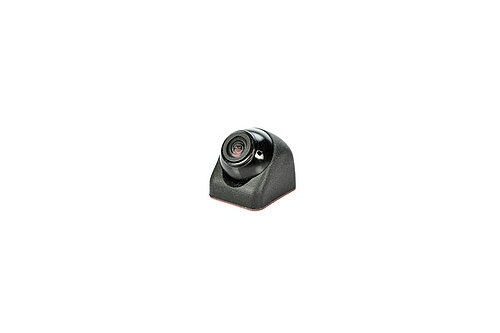

Universal multifunctional mini ball-camera

DBC 114025 MB

Universal multifunctional mini ball-camera
Universal mounting options due to different camera adapters
Wide viewing angle (160° diagonal)
Protection class: IP68

 - also available with guide lines -

request product find a merchant
  • description
    • Universal multifunctional mini ball-camera
    • Wide viewing angle (160° diagonal)
    • Protection class: IP68
    • Very compact design (19 mm Ø)
    • Minimum illumination 0,5 lux
    • Easy to install
    • Universal mounting options due to different camera adapters
  • specifications
    Image-Sensor 1/4 " CCDS Sensor
    Resolution 384.000 pixels
    Visual angle 160°
    Lens
    Illumination 0,5 Lux
    Video-System NTSC
    Mirror-Function yes
    Camera-Input RCA
    Protection class IP 68
    Operating temperature range -30 °C bis + 70 °C
    Vibration resistant
    Shock resistant
    Power supply 12 V
    Power consumption max. 60 mA
    Dimensons (WxHxD) 19 mm
    Weight 20 g
    Certification ECE-R10
  • shipment

    DBC 114025 MB - Camera

    8 m connection cable (RCA)

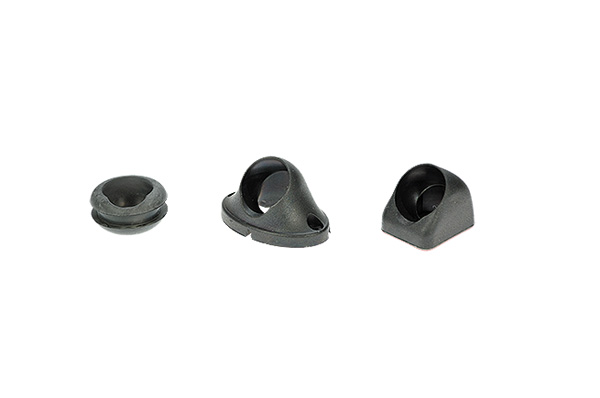

    different camera adapters

  • downloads

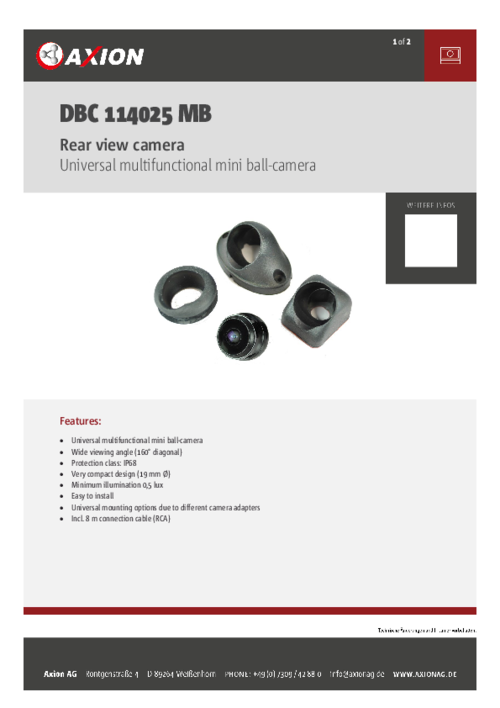

    DBC 114025 MB - Datenblatt

    Download
Technical changes and errors excepted.
