tailgate handle camera for Mercedes


High resolution colour camera in model-specific tailgate handle housing. Suitable for various Mercedes models.

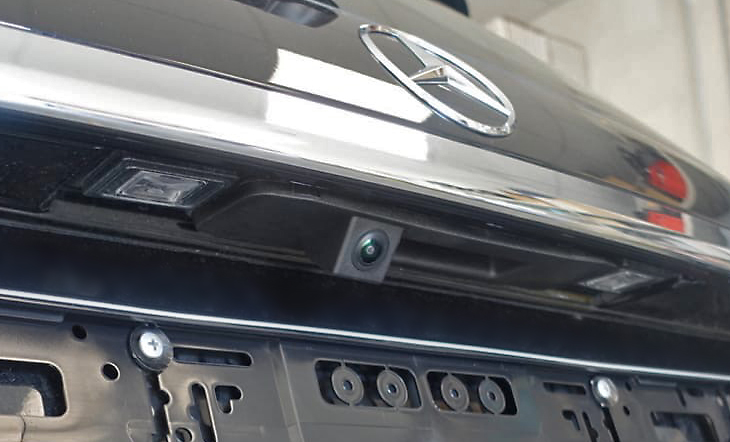

  • Rear view camera in the push-button for opening the tailgate for easy retrofitting by replacing the original tailgate opener handle with the AXION grip bar camera.

    Reliable and quick installation without drilling into the vehicle body is thus possible.

    Suitable for various Mercedes models, such as A-Klasse (W176), C-Klasse (W205), CLA (C117), GL (X166), GLA (X156), GLC (X253), ML-Klasse (W166), V-Klasse (W447),Vito with tailgate (W447)


    Special features:

    • Automatic day/night switchover
    • Protection class IP69K
    • Resolution 800 TV lines
    • Automatic backlight compensation
    • Parking lines can be switched on/off
    • IP69K
    • 8m camera cable (RCA)
    • 1/3 cmos HD image sensor
    • Video format: NTSC
    • Resolution: 800 TV lines
    • Viewing angle: 180° (D), 150° (H), 100° (V)
    • Minimum lighting: 0.02 lux
    • Parking lines on/off switchable
    • Power consumption: 40~ 50mA
    • Power supply: DC 6V ~ 26V
    • Dynamic range: 62dB
    • Automatic backlight compensation
    • Automatic brightness adjustment
    • Operating temperature range: -30°C to +75°C
    • Storage temperature range: -40°C to +85°C
    • Protection class: IP69K
    • A-Klasse (W176)
    • C-Klasse (W205)
    • CLA (C117)
    • GL (X166)
    • GLA (X156)
    • GLC (X253)
    • ML-Klasse (W166)
    • V-Klasse (W447)
    • Vito with tailgate (W447), not compatible with models with split tailgate
Technical changes and errors excepted.
