AHD Rear View Camera, IP69K

DBC 124035 AHD

Waterproof, high-resolution color camera
130° viewing angle (diagonal)
High night vision capability with 0 lux

request product find a merchant
    • High-resolution 2.1 megapixel color camera
    • CMOS image sensor
    • AHD 1080p video signal
    • Infrared LEDs for even illumination in the dark
    • High light sensitivity (0 lux)
    • Wide viewing angle (130°)
    • Waterproof microphone
    • Resistant to vandalism and moisture (IP69K)
    • 12 V DC power supply
    • Including sun visor, mounting bracket and screws
  • Image sensor1/3" CMOS color camera / 2.1 megapixels
    resolution>1000 TV lines / 1080p AHD
    Viewing angle130° diagonal (108° horizontal / 62° vertical)
    Light sensitivity0 lux
    Signal-to-noise ratio> 50 dB (AGC off)
    Power supply12 V
    Power consumption< 2 W
    Horizontal mirroringno
    Integrated microphoneyes
    Protection classIP69K
    Vibration resistantup to 10 G
    Working temperature range-30 °C to +80 °C
    Dimensions (WxHxD)70x43x57 mm (without mounting bracket and sun visor)
    Weight215 g (without mounting bracket and sun visor)
    Test marks, certificatesCE, ECE-R10

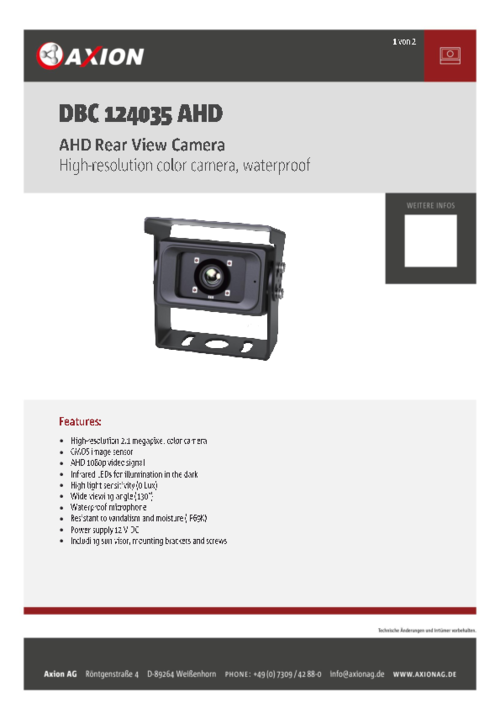

  • Download
Technical changes and errors excepted.
