Rear view camera in 3rd rear brake light integrated

DBC 114086 BL v2

Rear view camera in 3rd rear brake light integrated, especially for VW Crafter (until 2016) & Mercedes Sprinter (also W907/910)

request product find a merchant
  • description
    • Rear view camera in 3rd rear brake light integrated, especially for Mercedes Benz Sprinter & VW Crafter
    • Simple and quick installation - no drilling necessary!
    • NTSC
    • Protection class IP69K
    • 120° viewing angle
    • Including 10m system cable with adaption to AXION MiniDIN and adaption to RCA
  • specifications
    Image-Sensor 1/3“ CMOS
    Video system NTSC
    Image Type Mirror image
    Visual angle 120°
    Illumination 0,1 Lux
    Camera-Input 4Pin System cable with adapters
    Power supply 12V
    Protection class IP69K
    Operating temperature -30 °C to +70 °C
    Storage temperature -40 °C to +80 °C

    Certificate CE, E-mark, ROHS, FCC
  • downloads

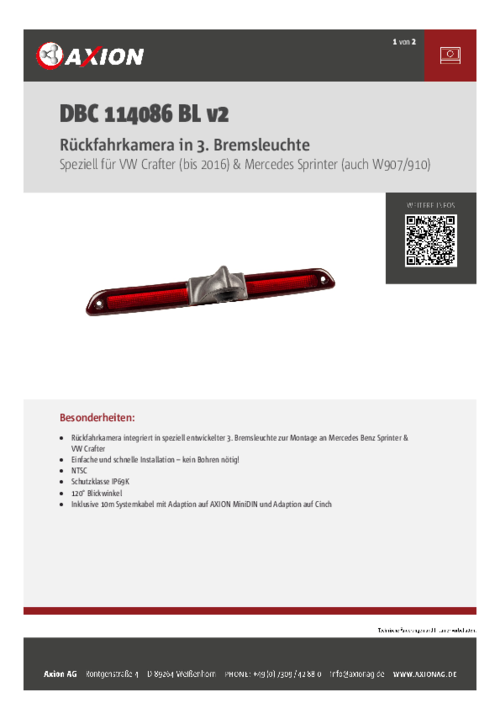

    DBC 114086 BL v2 - Datenblatt

    Download
Technical changes and errors excepted.
