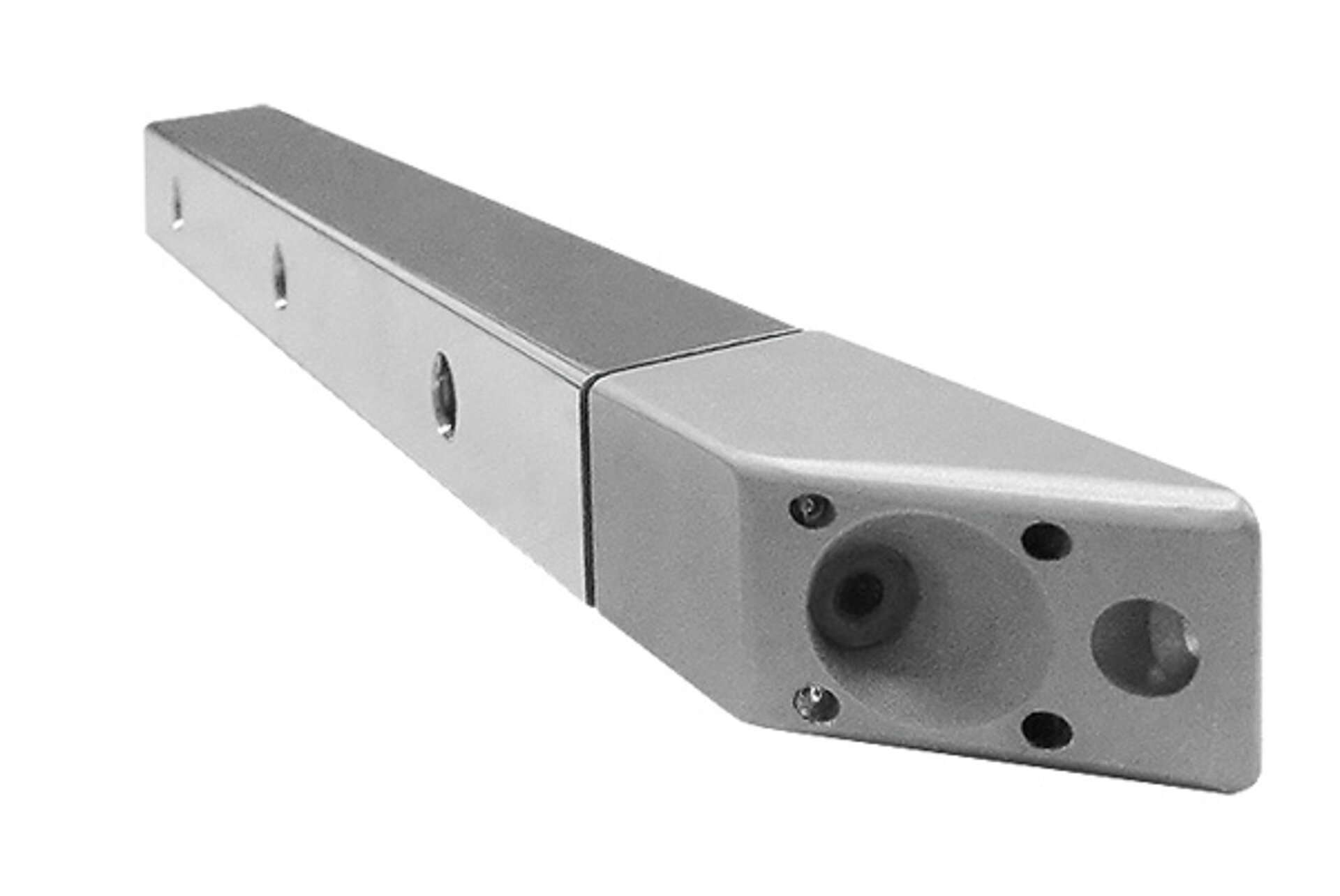

Fork-Lift Camera

DBC 114083FL

Compact color-camera, specially designed for the application at the forks of the fork lift.

request product find a merchant

  • Compact color-camera, specially designed for the application at the forks of the fork lift.
    The camera enables the driver to control the position of the forks, the load and the area surrounding the fork lift so that he can work faster and reduce risks.

    • Extremely resistant design
    • Good night vision by 4 LEDs (more than 1,5 m)
    • Easy and fast installation
    • Waterproof and dust resistant: IP68
    • Camera viewing angle: 55° (horizontal)
    • Operating temperature range: -30 °C to +70 °C
    • Dimensions (L × D × W): 300 × 25,4 × 25,4 mm
  • Image-sensor ¼ Zoll Sony CCD Sensor
    Resolution (pixels) PAL: 500 (H) x 582 (V); NTSC: 510 (H) x 492 (V)
    Monitor ¼ Zoll
    Lens 3,7 mm
    Viewing angle 55° (horizontal)
    Horizontal Resolution 420 TV-lines
    LED`s 4 LEDs (> 1,5 m)
    Waterproof IP68
    Synchronisation internal
    S/N ratio > 48dB (AGC output)
    Video-output 1Vp-p, 75 Ohm
    Power supply 12 V  10 %
    Power consumption ≤ 2,5 W
    Operating temperature range -30 °C up to +70 °C
    Storage temperature range -40 °C up to +80 °C
    Dimensions (LxHxD) 300 x 25,4 x 25,4 mm
Technical changes and errors excepted.
