Digital wireless set for cameras

DWS-Set3

Digital wireless system for cameras for an interference-free transmission of the camera picture to the monitor.
Digital encrypted 1-channel transmission technology.

request product find a merchant
  • description
    • Digital wireless system for cameras for an interference-free transmission of the camera picture to the monitor
    • Digital encrypted 1-channel transmission technology

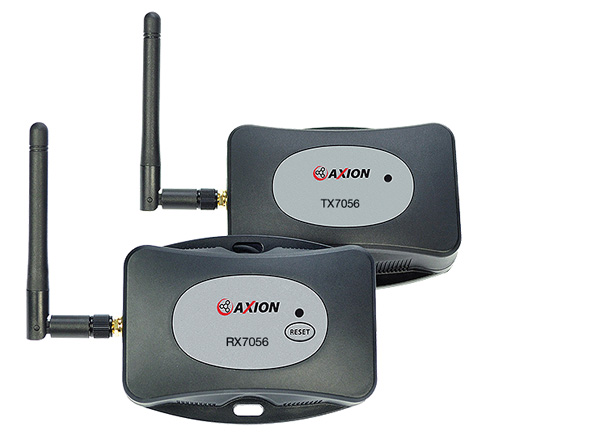

    • DWS-TX7056 transmitter with MINAX camera connector, 12/24 V
    • DWS-RX7056 receiver with AXION mini DIN plug for direct connection to our system monitors, 12 V
    • Easy pair technology – for easy and fast linking of the systems to alternating towing vehicles or additions
    • Transmitter & receiver available separately
  • specifications

    Wireless Transmitter DWS-TX7056

    Frequency Range: 2400-2483.5MHz
    Barrier-free Transmission Distance <170 m
    Power Supply 12V/24V
    Power Consumption ≤2W
    Image Quality: 640*480(P)/720*570(N)
    Start Up Time 1S Max
    Latency < 120 ms
    Transfer Rate 4Mbps
    Frame Rate NTSC: 30f/s ,PAL:25f/s
    Waterproof IP65
    Operation Temperature -20°C up to +70°C
    Dimension 104(L)*80(W)*30(H)mm
    Weight 200±10 g

    Wireless Receiver DWS-RX7056

    Frequency Range 2400-2483.5MHz
    Barrier-free Transmission Distance <170
    Start Up Time 1S Max
    Latency < 120 ms
    Video Code MPEG4
    Audio Code MP3, 1 channel
    Frame Rate NTSC:30f/s PAL:25f/s
    Power Supply 12V
    Power Consumption ≤2W
    Waterproof IP65
    Operation Temperature -20°C up to +70°C
    Dimension 104(L)*80(W)*30(H)mm
    Weight 200±10 g

    Cerftificates

    Rohs
    CE
    FCC
    E-Mark
  • shipment

    Wireless Transmitter DWS-TX7056

    Wireless Receiver DWS-RX7056

  • downloads

    DWS-Set3 - Datenblatt

    Download
Technical changes and errors excepted.
