Front headlights

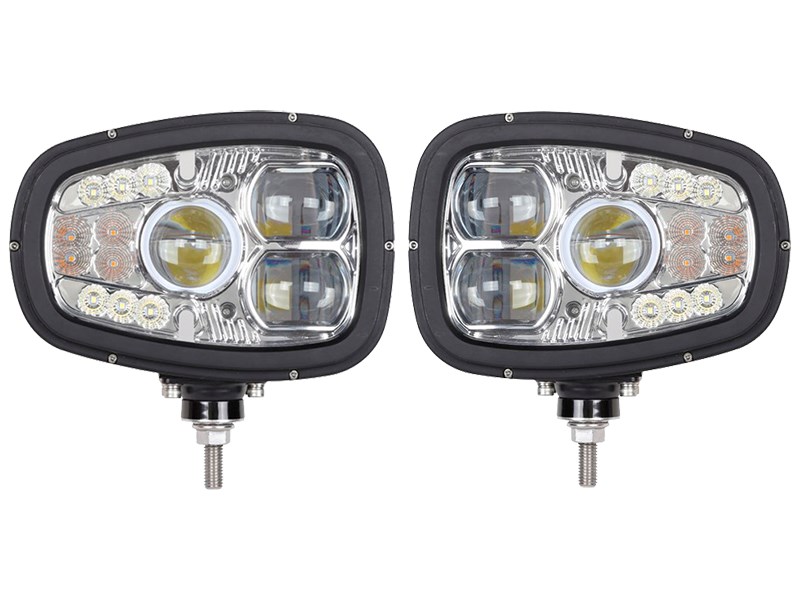

LED front headlights with integrated heating

Heated front headlight

request product find a merchant
  • description
    • E-24 certified LED headlamp with integrated direction indicators in industry standard

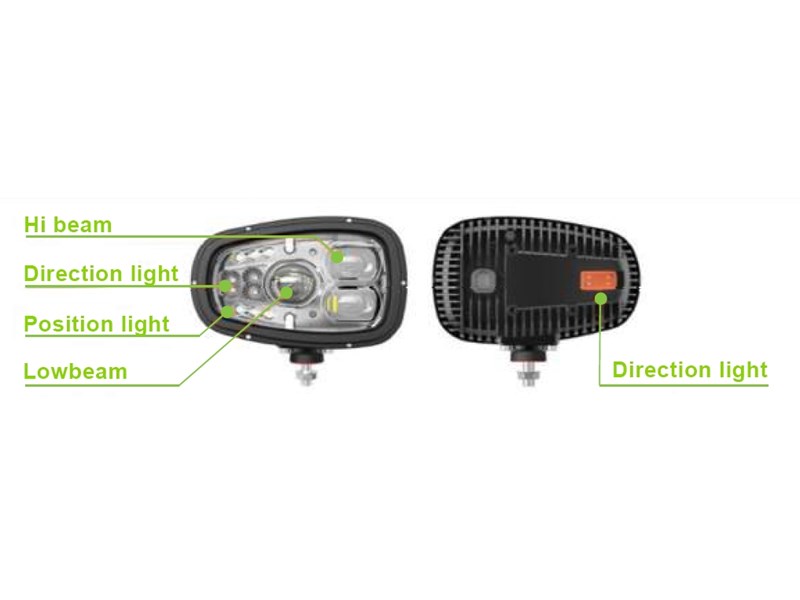

    • Headlamp with main-beam, high-beam, parking light and direction indicator
    • Integrated headlight heating against snow and ice
    • Robust die-cast aluminium housing with headlamp lens made of extremely resistant PMMA plastic
    • Connection via 6-pin DT connector
    • Dust and waterproof, protection class IP 69K
    • Protected against overheating and short circuit
    • Durability over 20,000 operating hours
    • Only available as a set
    • 3-year warranty
  • specifications
    Case Aluminium die-cast case
    Headlamp lens PMMA plastic
    Connection DT 6 pin
    Colour temperature main beam 5,500 K, high beam 5,500 K, parking light 5,700 K, indicator 1,700 K
    Power main beam 22 W, high beam 44 W, parking light 1.2 W, indicator 3.8 W
    Heating element Headlight 20-24 W
    EMC R6, R7, R 112, R10 – CISPR25 class 3
    SAE/ECE ECE
    Vibration resistance 6 G
    Durability > 20,000 operating hours
    Protection class IP69K
    Power supply 12 – 30 V
    Current consumption main beam 0.6 A, high beam 1.3 A, parking light 0.04 A, indicator 0.3 A
    Operating temperature range -40 °C to +85 °C
    Dimensions (LxHxW) 214 x 173 x 92 mm
  • downloads
    Download
Technical changes and errors excepted.
