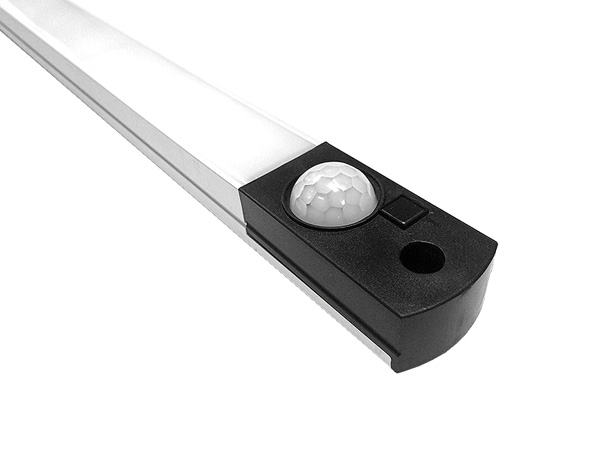

High Power Light Rails with built-in PIR-Sensor

LED High-Power PIR Rails with Moving Sensor

More light on the same length and with the same consumption via the latest generation of ultra-brightness LEDs.
40 % more light than regular High Power Rails.

request product find a merchant
  • description
    • High Power Light Rails with built-in PIR-Sensor
    • Adjustable Timer, 1-10 min. interval
    • More light on the same length and with the same consumption via the latest generation of ultra-brightness LEDs;40 % more light than regular High Power Rails
    • Innovative 4 wire connection system for installation with or without active PIR sensor & "Follow-Me" option for activating more Rails at the same time
    • High color rendering, CRI>90, which ensures the best light quality
    • IC controlled - for better light effi ciency, longer lasting by optimal conditions via voltage control for both high and low peaks and temperature control
  • specifications
    Item No. Length Power Ampere Power supply Brightness Light color Lifetime
    63690 50 cm 11 W 0,84 A 12 V 1.050 Lumens 4.000 Kelvin > 50.000
    63692 100 cm 22 W 1,68 A 12 V 2.100 Lumens 4.000 Kelvin > 50.000
    63694 50 cm 11 W 0,42 A 24 V 1.050 Lumens 4.000 Kelvin > 50.000
    63696 100 cm 22 W 0,84 A 24 V 2.100 Lumens 4.000 Kelvin > 50.000
  • downloads

    LED High-Power PIR Rail - Datenblatt

    Download
Technical changes and errors excepted.
