mObridge DA-G2.Pro Most150 Mercedes

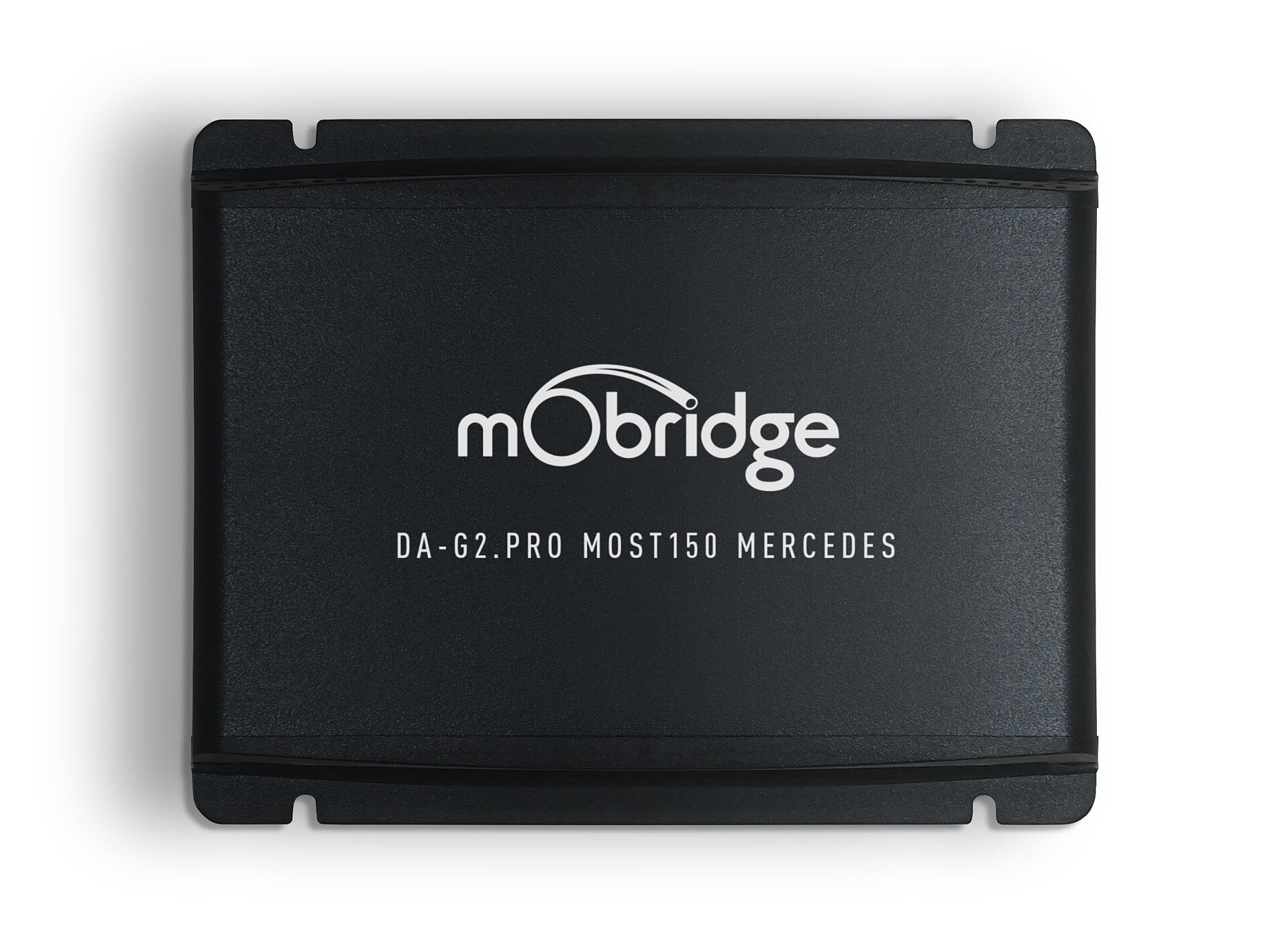

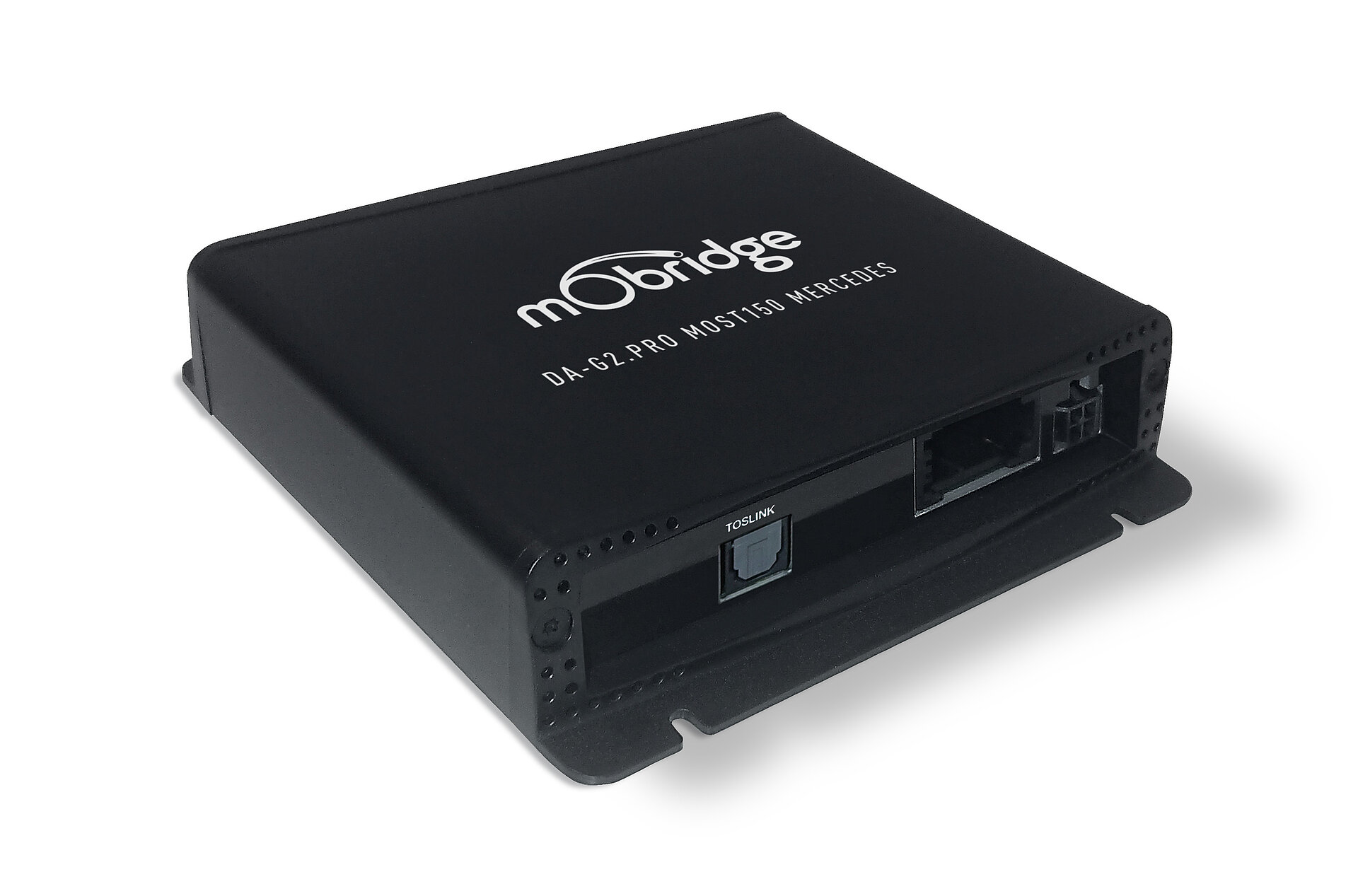

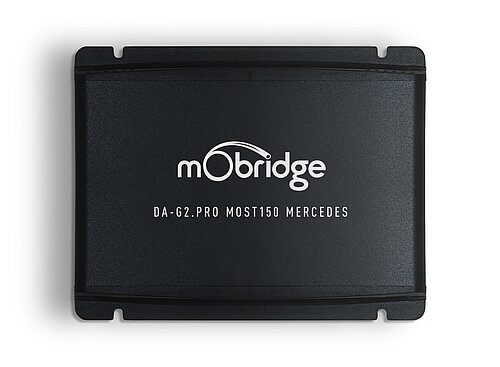

The mObridge DA-G2.Pro MOST150 pre-amplifier provides a connection between the in-vehicle MOST150 system with any aftermarket analog/digital DSP/amplifier.
It provides 10 channels of RCA analog outputs, a TOSLINK output, and an amplifier turn on/off control. Multi-vehicle compatibility is provided via DIP switches, and a USB connection can be used to connect it to the mObridge DSP user interface for configuration and firmware updates.
The DA-G2.Pro MOST150 is a complete DSP solution, with advanced DSP algorithms. If only basic analog + TOSLINK outputs are required, the DA-G2.Standard MOST150 can be used. Where only basic TOSLINK outputs are required, the DA-G2.Entry MOST150 can be used.request product find a merchant
The DA-G2.Pro MOST150 has been specifically designed for MOST150 systems to interface seamlessly into the vehicle bus network for unprecedented control and audio reproduction.
The heart of the device is a 533MHz Blackfin Digital Signal Processor (DSP). With it, the DA-G2.Pro MOST150 is capable of concurrently running advanced DSP algorithms on up to 12 channels. It provides full access to channel mapping, channel summing, parametric crossovers, a 1024 point graphic equalizer, channel high/low/band-pass filters, phase inversion, time alignment, master/channel gain control, center channel upmixing algorithms, in-vehicle preset control, and many other features.
The pre-amp stage is driven by a Burr Brown DAC converter, providing an audiophile quality without compromise.
The DA-G2.Pro MOST150 interfaces seamlessly with the controls of the vehicle. Volume, fade, balance, bass, and treble remain completely controllable via the existing vehicle controls, and all factory audio such as parking sensors, navigation, voice, and telephone are integrated to behave exactly as per the original system. This means that unlike other integration options, there is no need for mounting of any additional controls inside the vehicle. The vehicle will look and feel stock, with exceptional audio quality.
mObridge DSP User Interface
The DA-G2.Pro MOST150 utilizes the mObridge DSP desktop application for Windows/macOS to harness the full potential of the DSP. The application is also able to provide automatic online firmware updates.
Windows/macOS: mObridge DSP application
Note: This product is only compatible with Mercedes-Benz vehicles equipped with MOST150 audio systems.
- 10 channels RCA full-range
- 4V RMS
- 192kHz Sampling 24-bit digital to analog converter (DAC)
Digital TOSLINK Output
- Stereo TOSLINK output
- Support for volume/fade/balance on factory radio and/or steering wheel
- Support for all factory-fitted audio sources (eg telephone/navigation/voice recognition/television/dvd)
- Support for reverse park sensor audio overlay
- Support for factory multi-band equalizer
- MOST ‘T’ piece harness
- Wiring harness
- 8x RCA plug adapter
- Female 2+0 MOST connector for harness extension
- Male 2+0 shell for harness extension
- MOST150 install booklet
- DA-G2.Pro MOST150 instructions
