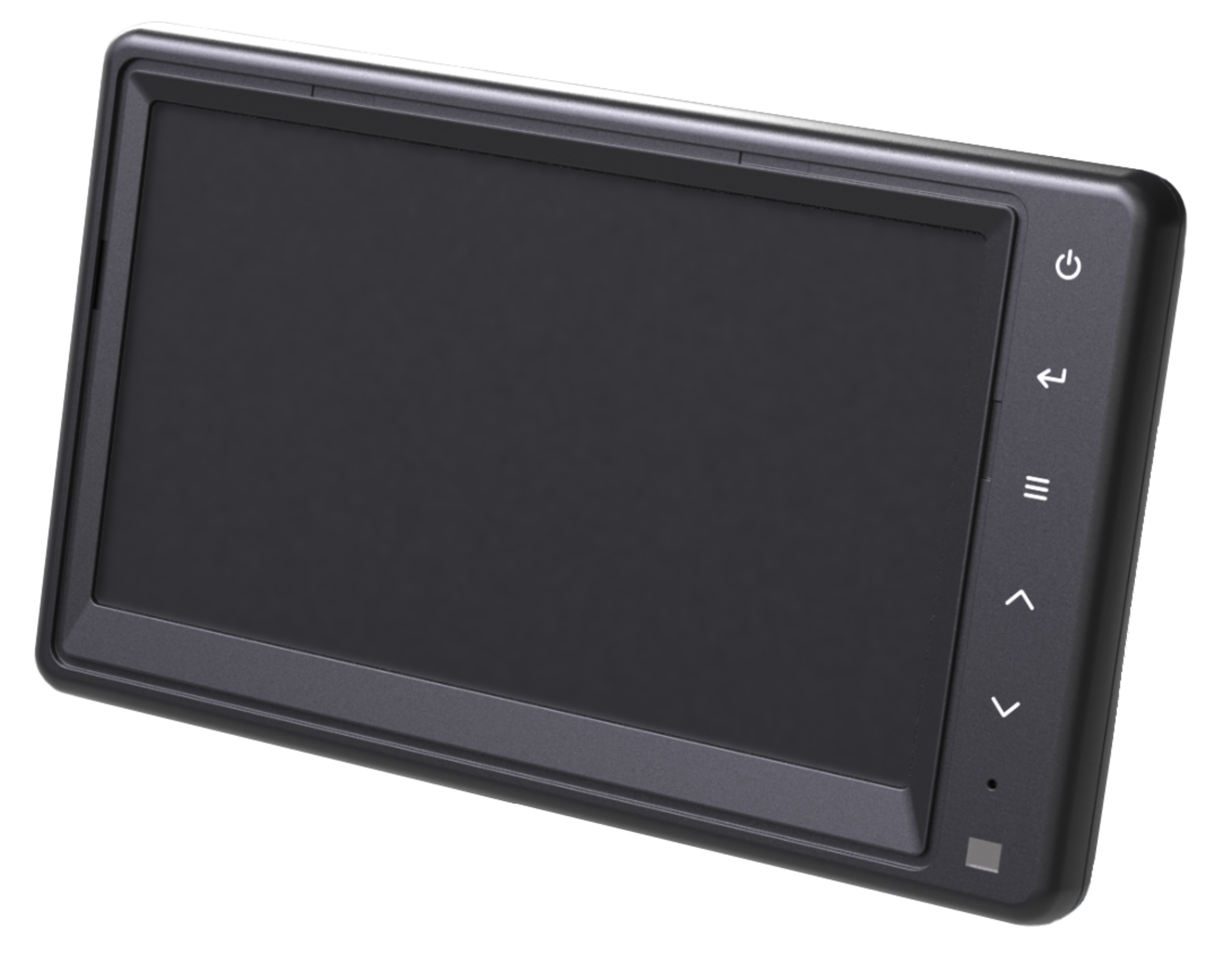

7" LCD AHD monitor for camera systems

CRV 7110M HD

7" (17.8 cm) AHD monitor with 3 camera inputs,
suitable for 12 V & 24 V use

request product find a merchant
    • High-resolution 7" (17.8 cm) AHD reversing monitor
    • 3 camera inputs (AXION MiniDIN)
    • Supported video signals: AHD 1080p/720p, CVBS PAL/NTSC
    • 3 trigger inputs
    • Trigger priority adjustable
    • Switchable guide lines
    • Automatic switching to night mode
    • Multilingual OSD menu
    • Built-in loudspeaker
    • Easy to install and connect (plug & play)
    • Incl. monitor stand

  • Screen diagonal7 inch
    Screen format16:9
    Picture brightness550 cd/m²
    resolution1024x600
    Horizontal image mirroringYes
    Vertical image mirroringYes
    Video systemAHD / PAL / NTSC
    Day/night switchingYes, sensor
    Video signal detectionAutomatic
    Power supply10-32 V DC
    Power consumption< 15W
    Operating temperature-30 °C to +70 °C
    Dimensions (WxHxD)195x117x26 mm
    LoudspeakerYes
    Camera input3x AXION Mini-DIN
    Weightapprox. 450 g (without stand)
    Test marks, certificatesECE-R10, CE

  • CRV 7110 M HD - Monitor

    Connection cable set

    Monitor stand

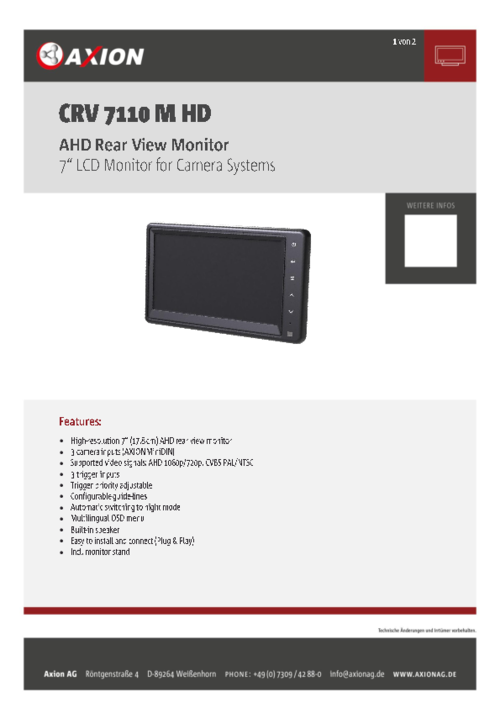

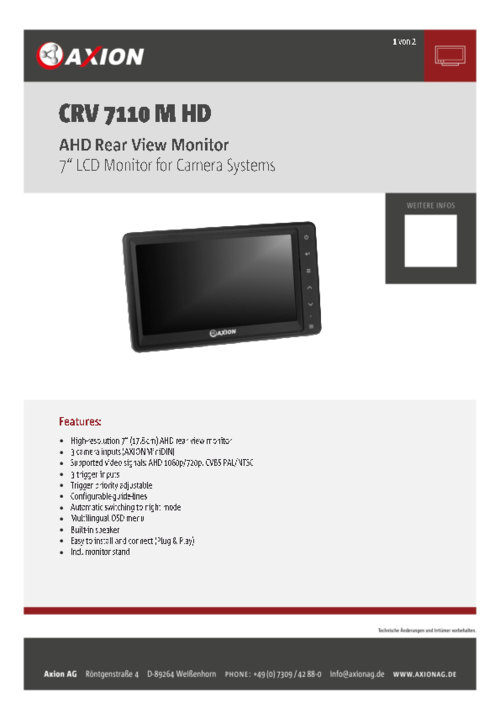

  • Download
Technical changes and errors excepted.
