Standard rear view camera
DBC 114073 Basic
Standard rear view camera
Vandal- & waterproof IP69K
Wide viewing angle 124°
Power supply 12 V
7 inch Rear Vision System

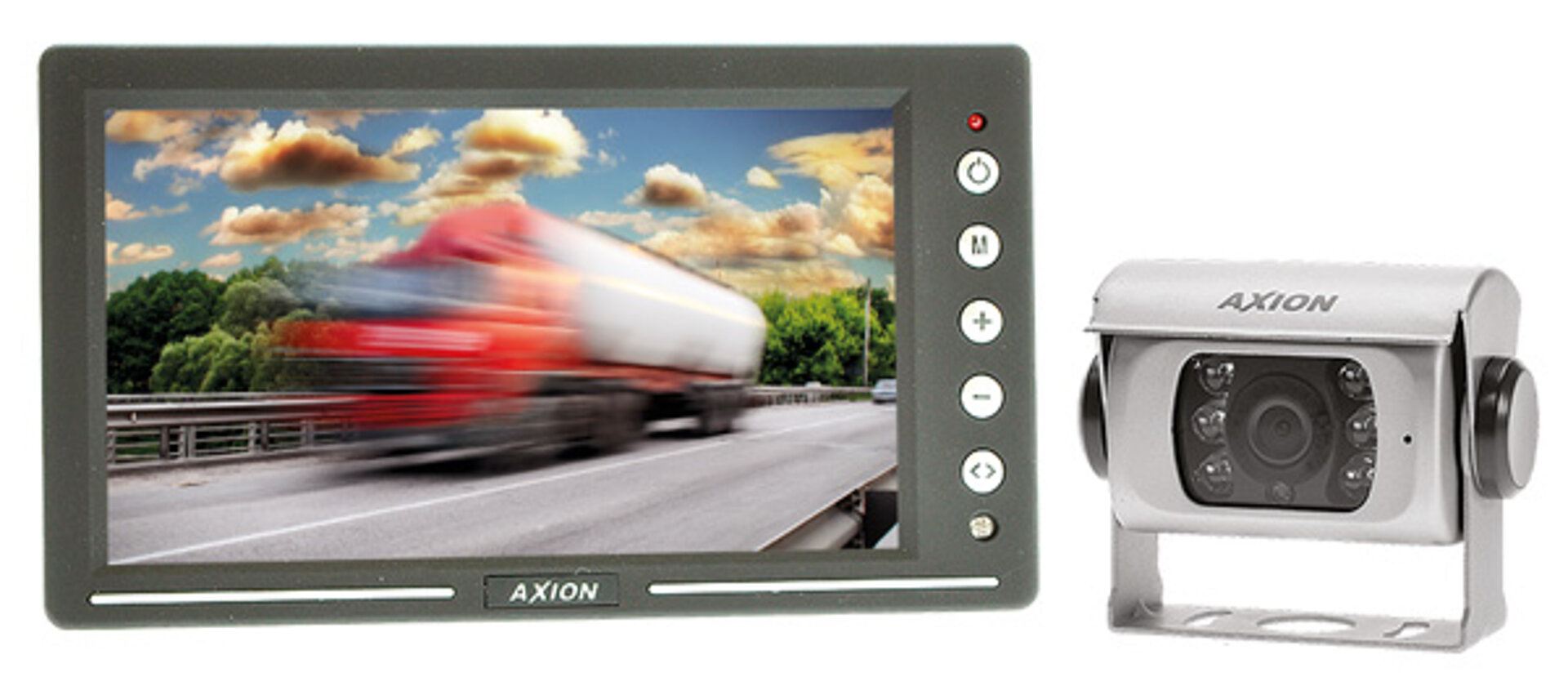

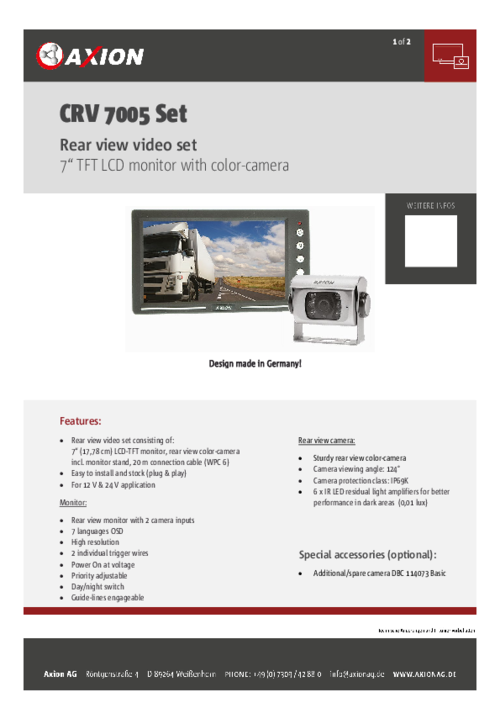

CRV 7005 Set
Complete professional Rear View System with Color Camera, incl. Monitorstand, 20m cable. Easy to install & connect - Plug & Play. For 12V and 24V use.
-
Complete professional Rear View System with Color Camera
CRV 7005 M - Monitor
- Digital 7 inch LCD-TFT Monitor with 2 camera-inputs
- Wide viewing angle (l/r 80°, up/down 40°/60°)
- High Brightness
- Day-/Night-sensor
- Mirror-/ Normal switch available
- Adjustable guide lines
- 2 individual trigger wires to activate Cameras
- automatically
- Built-in speaker
- Power requirement: DC 12/24 V
- Dimensions(W × H × D): 200 × 115 × 29 mm
DBC 114073 Basic - Rear view camera
- CCD Camera
- Low light performance 0,01 lux
- Built-in microphone
- Automatic electronic iris
- 124° viewing angle
- Vandal resistant & waterproof IP69K
- Input voltage: 12 V
- Aluminium die-cast
- Dimensions(W × H × D): 76 × 73 × 85 mm
-
CRV 7005M
Monitor 7 inch (17,78 cm) Resolution 1.152.000 pixels Brightness 500 cd/m2 Wide viewing angle r/l 80° , u/d 40/60 ° Mirror-Imaged Yes Video-System PAL / NTSC (auto) Day/Night sensor Yes Built-in speakers Yes Video-Input 2x AXION 4p DIN Signal CVBS(FBAS) 1 Vpp / 75 Ohm Power supply 12/24 V Power consumption < 7W Operating temperature range -20 °C bis +70 °C Storage temperatur range -30°C bis +80°C Vibration resistant > 5G Guide-Lines Yes OSD (User-Manuel) 7 Languages Power-On mode Yes Protection class IP 54 Dimensons (WxHxD) 200x115x29 mm Weight: 400 g Certification ECE-R10 DBC 114073 Basic
Image size 1.3 Megapixel Sony Color CMOS Resolution 800 TVL lines Wide viewing angle 124° ( diagonal) Lens 2.8mm Illumination 0,001 Lux LED-IR beamer yes, 6 pieces Microphone Yes Signal CVBS(FBAS) 1 Vpp / 75 Ohm Video-System PAL Mirror-Imaged yes Connection MINAX Protection class IP69K Salt and chemicals tested yes Operating temperature range -30 °C bis +80 °C Storage temperatur range -40 °C bis +85 °C Vibration resistant > 6G Shock resistant 50 G Power supply 12 V Power consumption max. 2,5 W Dimensons (WxHxD) 76 x 73 x 85 mm Weight 360 g Certification ECE-R10 -
- CRV 7005M incl. Monitorstand
- DBC 114073 Basic
- WPC 6 - 20m cable
Technical changes and errors excepted.
