Interface for rear view camera input coding + TV activation for VW/AUDI/PORSCHE MIB systems Chrysler, Dodge, Jeep, Fiat, Lancia with Uconnect 8.4N/RB5 and 8.4/RE2 and 22 pin connector

MI-UCON22

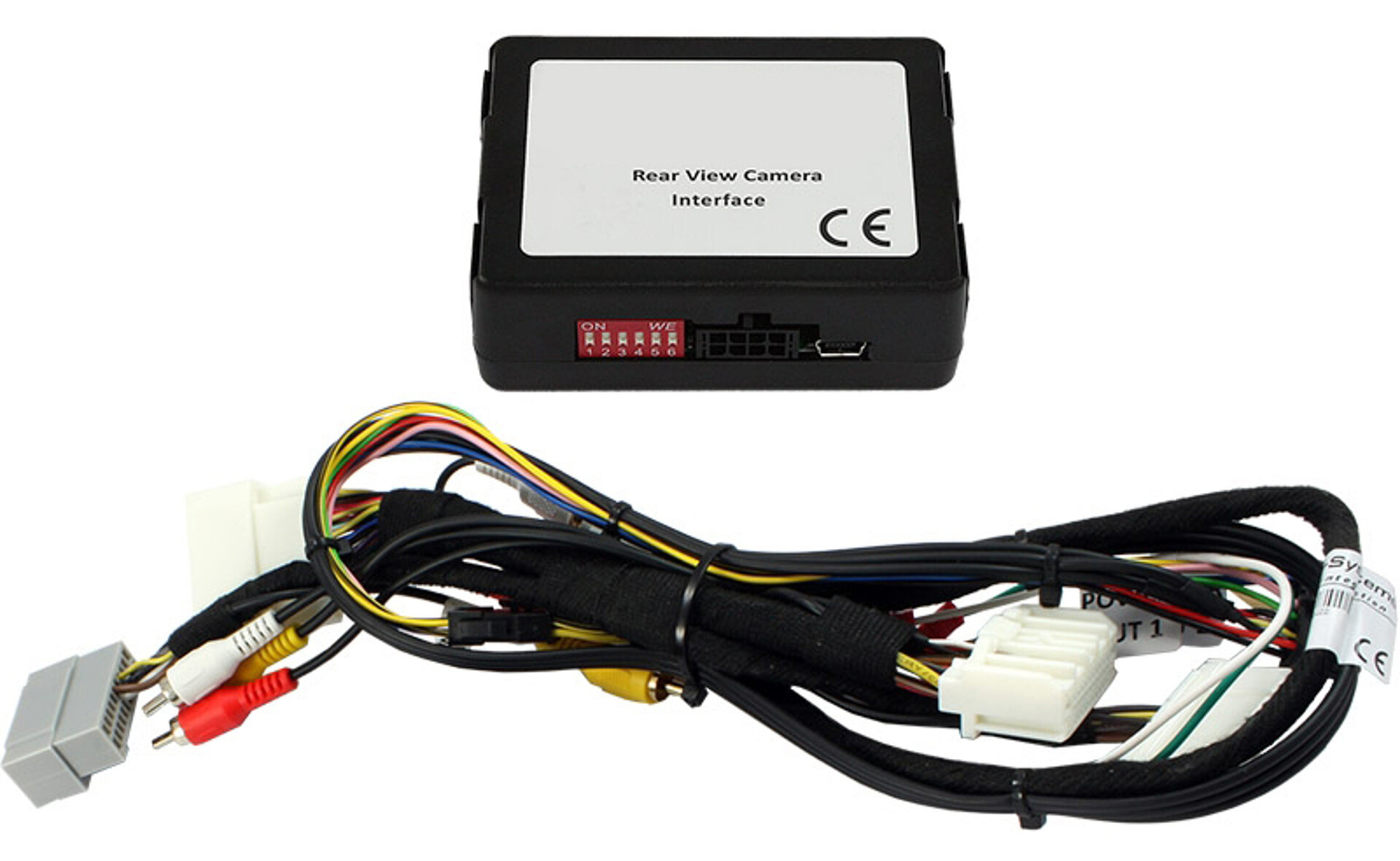

TV activation with the possibility of activating the rear view camera input of the factory infotainment. For Chrysler, Dodge, Jeep, Fiat, Lancia with Uconnect 8.4N/RB5 and 8.4/RE2 and 22 pin connector. The MI-UCON22 intelligent interface allows easy connection of a rear view camera to the factory navigation system. The necessary coding of the rear view camera input can be performed by the interface. The TV activation is included.

request product find a merchant
  • description
    • Plug and Play interface
    • Integration into the plant infotainment
    • Rear view camera input (+ coding)
    • Rear camera power supply output (+12V max. 500mA)
    • Activation of picture playback while driving (TV activation)
    • Automatic switching to rear view camera input when reverse gear is engaged
    • USB update port for software updates by the end user
  • specifications
    Working current <2mA
    Rated current ~60mA
    Power consumption ~0,08W
    Voltage working range 6.0V up to 14.8V
    Operation temperature -30°C up to +80°C
    Weight 44 g
    Dimensions (W x H x D) 70 x 20 x 47mm
  • shipment
    • CAN-box
    • Plug & Play cable kit
    • Instruction manual
  • compatibility

    Chrysler with Uconnect 8.4N/RB5 and 8.4/RE2:

    • 300C model years 2011-
    • and other vehicles with head unit and separate 8.4 inch monitor

    Dodge with Uconnect 8.4N/RB5 and 8.4/RE2

    • Charger, Journey model years 2011-
    • and other vehicles with head unit and separate 8.4 inch monitor
Technical changes and errors excepted.
