2 in 1 Camera for Fiat Ducato, Peugeot Boxer, Citroen Jumper

DBC 1140182 DV Dual View

Rear view camera integrated into specially designed brake light bracket for mounting on Fiat Ducato, Peugeot Boxer and Citroen Jumper.

request product find a merchant
  • description
    • Rear view camera integrated into specially designed brake light bracket for mounting on Fiat Ducato, Peugeot Boxer and Citroen Jumper .
    • The DualView technology delivers simultaneously a TOP-DOWN view oft the rear of the vehicle for maneuvering and a view of the traffic behind on one sreen.
    • Wide viewing angle 200°(D) (172°(H) /130°(V))
    • Protection class IP69
    • 12 V power supply
    • Operating temperature range: -30° bis +70°C
  • specifications
     High resolution 1/3” CMOS image sensor with 580 TV-lines
     Wide viewing angle  200° (diagonal), 172° (horizontal), 130° (vertical)
     Protection class  IP69
     Power supply  12 V
     Operating temperature range  -30 °C to +70 °C





  • downloads

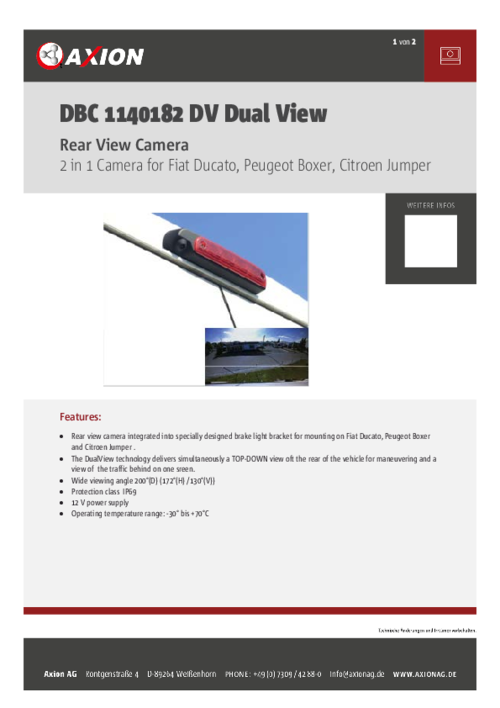

    DBC 1140182 DV Dual View - Datenblatt

    Download
Technical changes and errors excepted.
