Color- camera waterproof IP 69K

DBC 1140179

Aerodynamic, compact, waterproof color-camera. Ideal mounting possibilities: side, rear, front, above or down mountable.

request product find a merchant
  • description
    • Aerodynamic, compact, waterproof color-camera
    • Ideal mounting possibilities: side, rear, front, above or down mountable
    • High quality CMOS sensor
    • Minimum illumination (0 lux)
    • IR LED beamer for day & night view
    • Viewing angle 140°
    • Electronic auto-shutter
    • Built-in microphone
    • Vandalproof, rust-protected Al. die-cast housing (IP69K)
    • Incl. 20 m connection cable
  • specifications
    Sensor 1/3“ CMOS
    Resolution PAL: 728(H) x 488(V) ; 500 TV Lines
    Synchronization system Internal SYNC
    Video-Output 1.0VP-p, 75 Ohm
    Signal/Noise Ratio better than 43.3 dB
    Operating Temperature Range - 20 °C ~ 70 °C
    Storage Temperature - 30°C ~ 80°C
    Power Supply 12V
    Protection Class IP 69K
    Dimensions (DxWxH) 75 x 59 x 43 mm
    Viewing Angle 140°
    Illumination 0 Lux





  • downloads

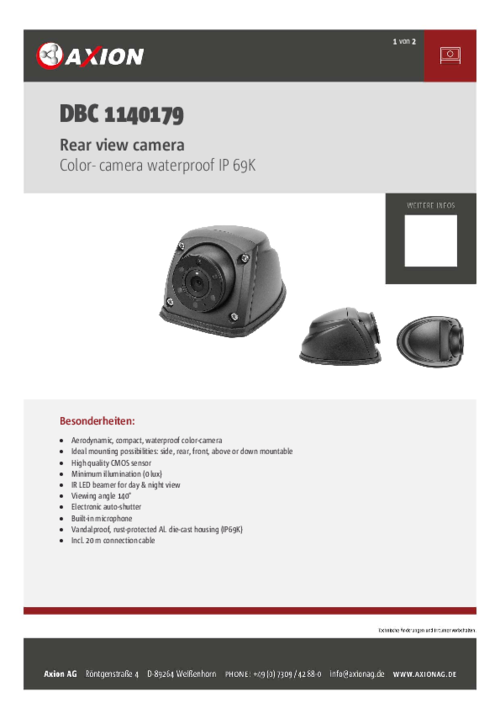

    DBC 1140179 - Datenblatt

    Download
Technical changes and errors excepted.
