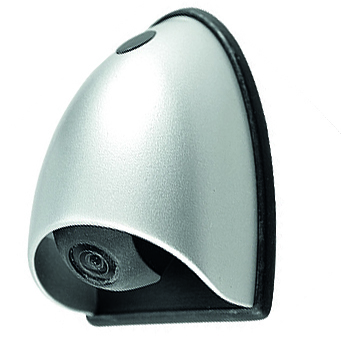

DualView Design rear view camera - 2 in 1

DBC 114027 Smartback DV

2-in1: The camera provides a splitted picture with a TOP-DOWN view of the rear of the vehicle for maneuveringand a view of the traffic behind.
Well suited for mobile homes, buses, etc.

request product find a merchant
  • description
    • DualView Design rear view camera
    • 2-in1: The camera provides a splitted picture with a TOP-DOWN view of the rear of the vehicle for maneuvering and a view of the traffic behind
    • Well suited for mobile homes, buses, etc.
    • High resolution: 1/3” CMOS image sensor with 580 TV-lines
    • Wide viewing angle 200° (diagonal), 172° (horizontal), 130° (vertical)
    • Protection class IP68
    • 12 V power supply
  • specifications
    Image-Sensor 1/3 Zoll CMOS sensor
    Resolution 580 TV-lines
    Visual angle 200°(diagonal, 172°(horizontal),130°(vertical)
    Video-System PAL
    Guide-Lines no
    Camera-Input MINAX
    Protection class IP 68
    Operating temperature range -30 °C bis +70 °C
    Power supply 12 V
    Dimensons (WxHxD) 55x43x76 mm
    Certification ECE-R10





  • shipment

    DBC 114027 Smartback DV - Rear view camera

    WPC 6 (20 m connection cable)

  • downloads

    DBC 114027 Smartback DV - Datenblatt

    Download
Technical changes and errors excepted.
