Color pin rear view camera

DBC 114034 P

Waterproof color-camera ideal for installation
Vandal- &waterproof (IP68)
Wide viewing angle 155°
Power supply 12 V DC

request product find a merchant
  • description
    • Waterproof color-camera ideal for installation
    • High performance in dark areas 0,3 lux
    • Wide viewing angle 155°
    • Vandal- &waterproof (IP68)
    • Mirror/normal switch
    • Electronic brightness adjustment
    • Automatic electronic iris
    • Weatherproof Al. die-cast case
    • With distance, angle and screwing ring
  • specifications
    Image-Sensor 1/3" CCD
    Resolution 320.000 pixels ; 480 TV lines
    Visual angle 155°
    Illumination 0,3 Lux
    Video-System PAL
    Guide-Lines no
    Camera-Input AXION DIN 4 PIN
    Protection class IP 68
    Operating temperature range -20 °C up to + 65 °C
    Vibration resistant 8 G
    Power supply 12 V
    Power consumption 200 mA
    Dimensons (WxHxD) 30 x 58 mm
    Weight approx 150 g
    Certification ECE-R10
  • shipment

    DBC 114034 P - Camera

    WPC 5 (20m connection cable)

  • downloads

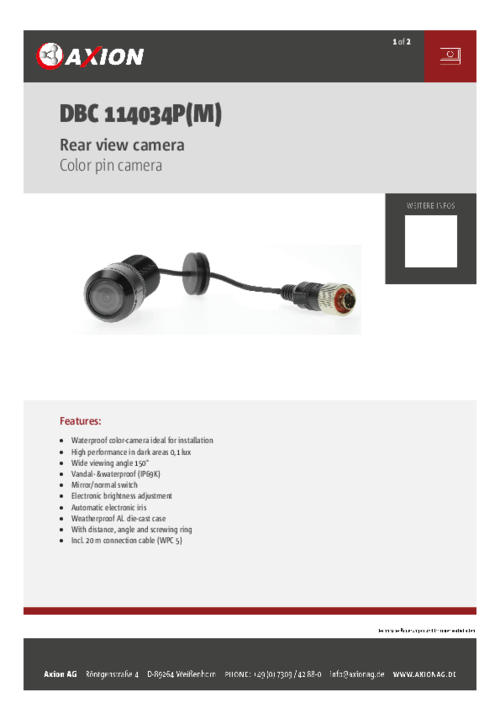

    DBC 114034 P - Datenblatt

    Download
Technical changes and errors excepted.
