Colour waterproof rear view camera

DBC 114036 SB

1/3’’ CCD color-rear view camera
Vandal- & waterproof (IP69)
Power supply 12 V DC

request product find a merchant
  • description
    • High resolution megapixel CMOS colour camera
    • 1/3.2'' image sensor
    • Infrared LEDs for uniform illumination in the dark
    • High light sensitivity (0 Lux)
    • Electronic brightness compensation
    • Automatic electronic IRIS
    • Mirror/normal image function
    • Large viewing angle (130°)
    • Waterproof microphone
    • Resistant to vandalism & moisture (IP69K)
    • Power supply 12 V DC
    • Weatherproof die-cast aluminium housing with sun visor / mounting brackets & screws
  • specifications
    Image-Sensor 1/3.2" CMOS colour camera
    Resolution >700 TV-Linien
    Visual angle 130° diagonal (100° horizontal / 80° vertikal)
    Illumination 0,0 Lux
    Mirror/normal image Function yes
    Integrated microphone yes
    Signal-to-noise ratio 46 dB
    Protection class IP69K
    Power supply 12 V
    Power consumption < 2 W
    Vibration resistant up to 10 G
    Shock resistance 100 G
    Operating temperature range -40 °C to +85 °C
    Dimensions (WxHxD) 69x41x52 mm
  • shipment
    • DBC 114036 SB - Rear view camera
    • WPC 5 (20 m connection cable)
  • downloads

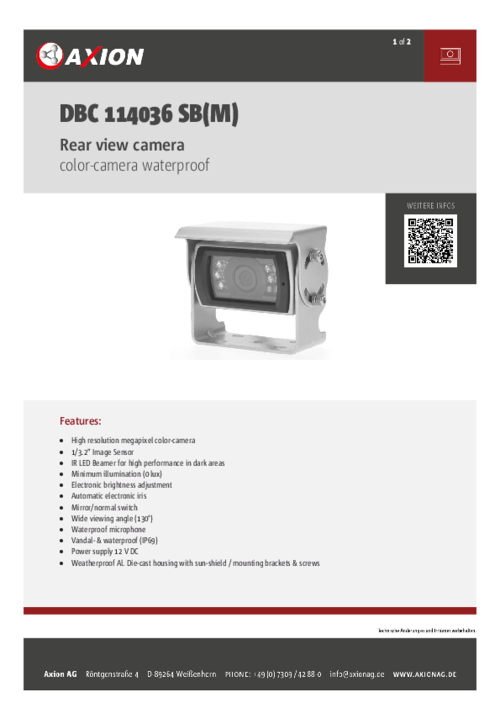

    DBC 114036 SB - Datenblatt

    Download
Technical changes and errors excepted.
