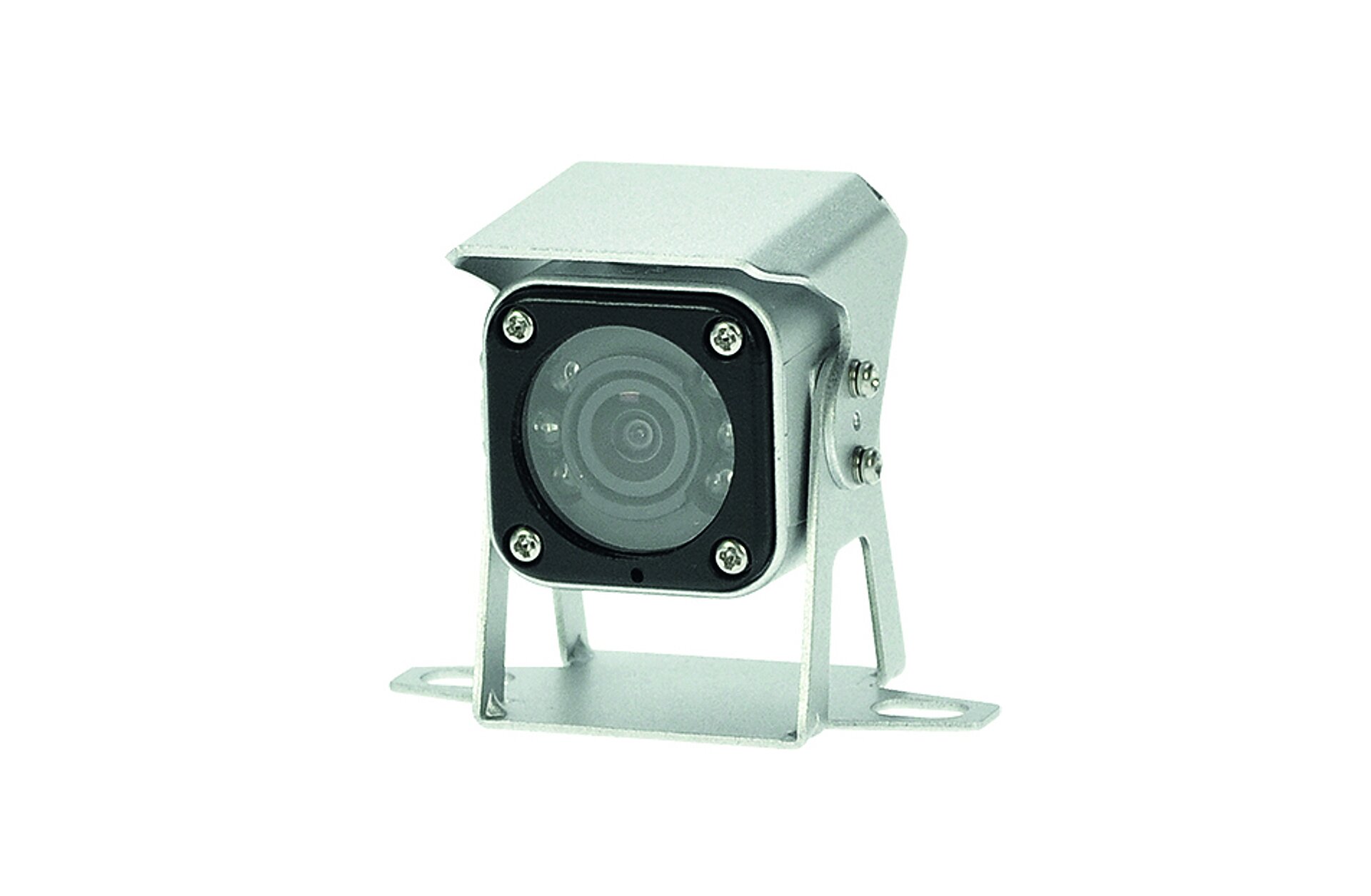

High End Mini Color-Camera

DBC 114041 M

1.23 Megapixel CMOS mini color camera for challenging applications.
Special mounting system for application as a front/rear/side camera.
Auto activation of the infrared LEDs in the dark.

request product find a merchant
  • description
    • 1.23 Megapixel Sony CMOS mini color camera for challenging applications
    • Special mounting system for application as a front/rear/side camera
    • Auto activation of the infrared LEDs in the dark
    • Minimum illumination: 0 lux
    • Built-in microphone
    • Wide viewing angle 120°
    • Resistant against vandalism/moisture IP69K
    • Vibration resistance: 7G / shock: 100G
    • Operating temperature range: -40 °C to +85°C
    • Power supply: 12 V DC
    • Dimensions (W × H × D): 30 × 30 × 36,7 mm

    • NTSC-Version also available
  • specifications
    Image-Sensor 1.23 Megapixel Sony CMOS
    Resolution >700 TVL
    Visual angle 123° ( H: 92° / V: 81°)
    Illumination 0 Lux
    IR-LED Beamer yes
    Microphone yes
    Video-System PAL
    Mirror-Function yes
    Guide-Lines no
    Camera-Input MINAX
    Protection class IP 69 K
    Operating temperature range -40 °C up to + 85 °C
    Vibration resistant 7 G
    Shock resistant 100 G
    Power supply 12 V
    Dimensons (WxHxD) 30x30x36,7 mm
    Certification ECE-R10





  • shipment

    DBC 114041 M - Camera

    WPC 6 (20m connection cable)

  • downloads

    DBC 114041 M - Datenblatt

    Download
Technical changes and errors excepted.
