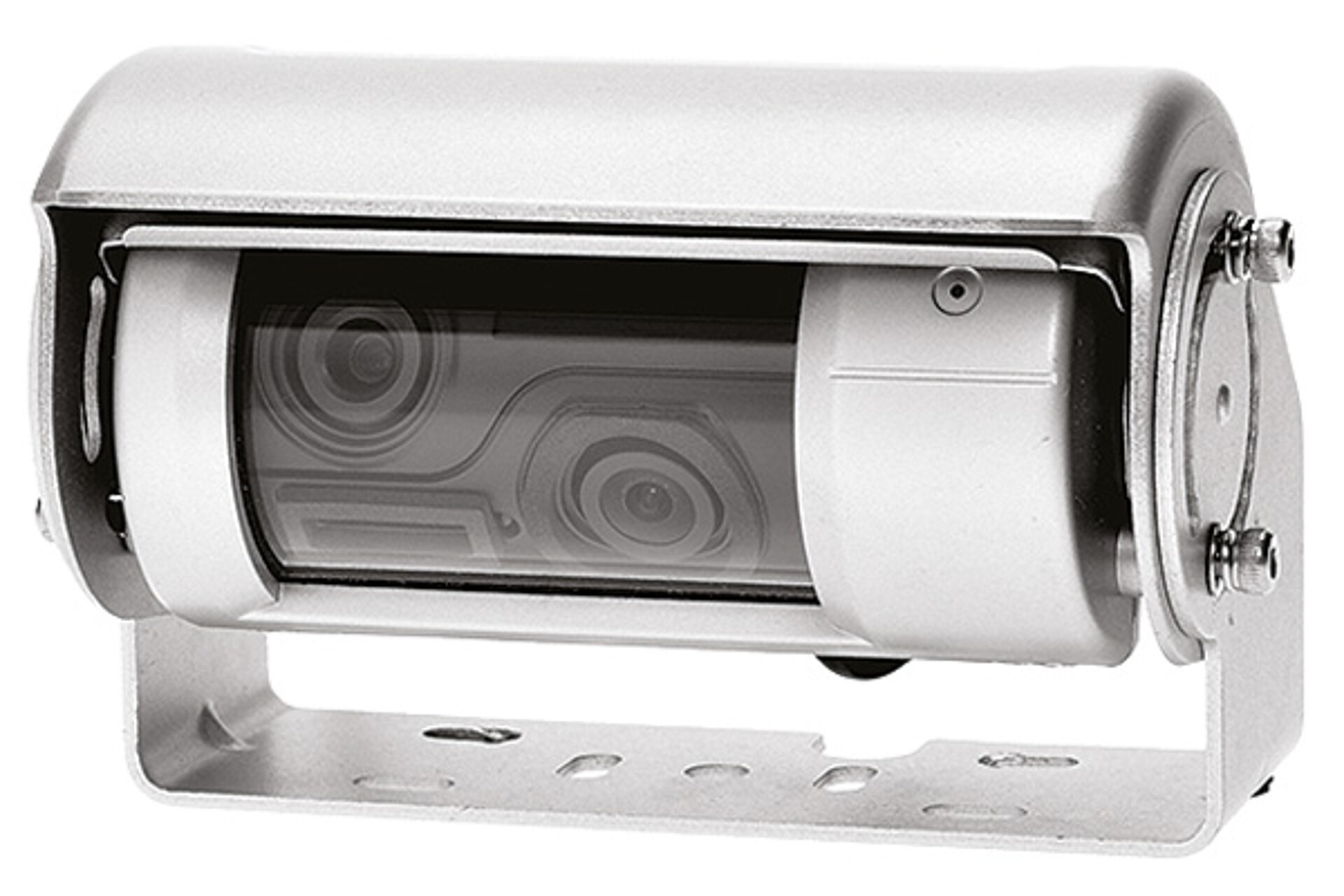

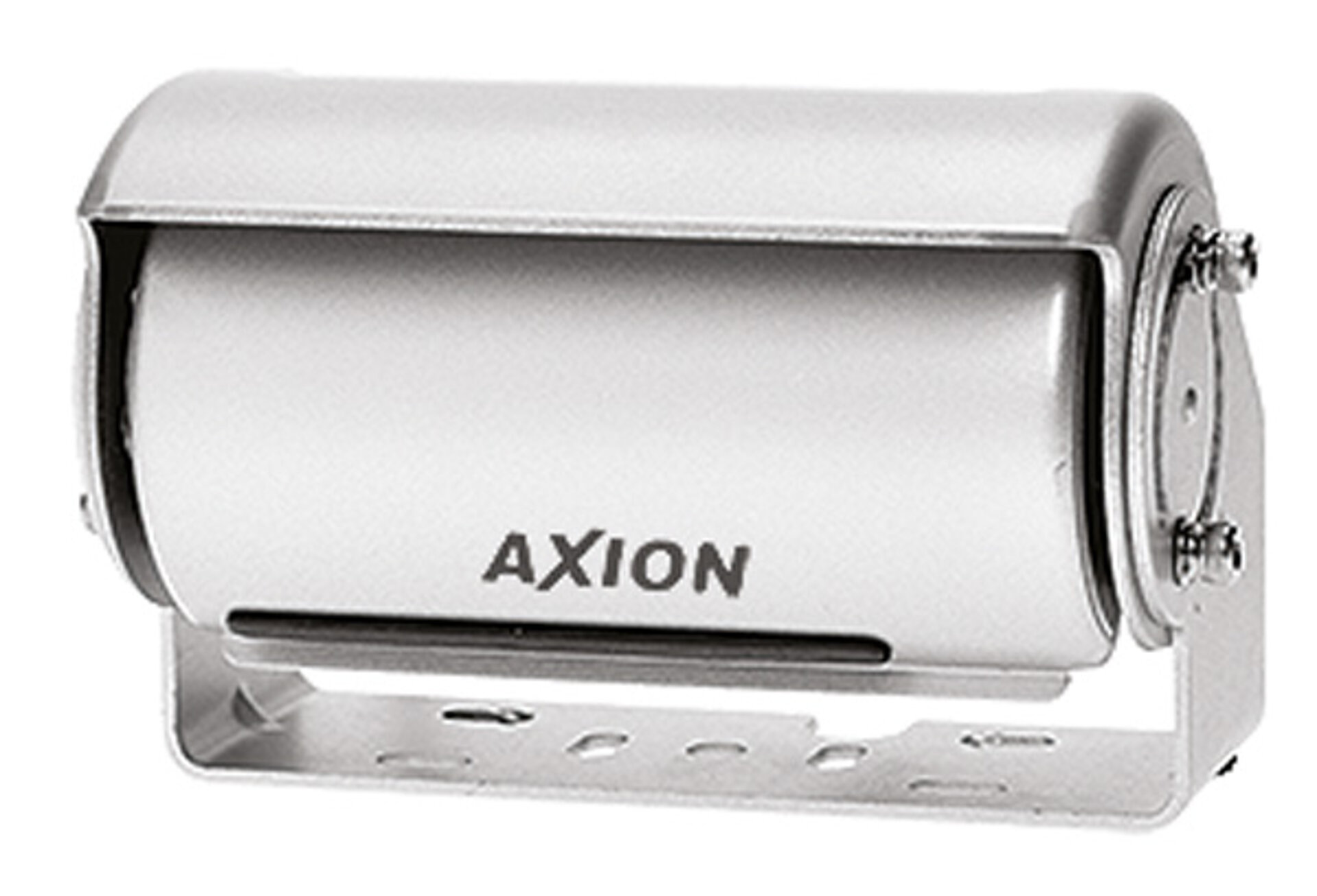

Motorized twin-shutter camera

DBC 114066 TS

This high-class twin-shutter-camera with motorized shutter and cleaning wiper provides full back and rear view of the vehicle at the same time.

request product find a merchant
  • description
    • 2 separate cameras, one for reversing (short distance), the other for viewing to the rear (long distance)
    • Motorised protection flap with wiper function
    • 2 cameras, 1 x 150°, 1 x 53°
    • Good visibility in the dark (0 Lux) due to built-in LED beamer
    • Built-in microphone
    • Protection class IP69K
    • Integrated heating
    • Incl. 20 m connection cable (WPC 9)
  • specifications
    Image-Sensor Sony 1.23 Megapixel CMOS chipset
    Viewing angle cameras 1 150° (diagonal), 116° (horizontal), 93° (vertical)
    Viewing angle cameras 2 53° (diagonal), 43° (horizontal), 32° (vertical)
    Resolution 1,230,000 pixels
    TV lines > 700 TVL (CVBS)
    Light sensitivity 0 Lux
    Protection class IP 69K
    Vibration resistant up to 10 G
    Impact resistant up to 100 G
    Signal/noise ratio better than 46 dB (with AGC off)
    Power supply 12 V
    Power consumption max. 5W
    aluminium housing, window curved glass
    Operating temperature -40 °C to +85 °C
    Dimensions (WxHxD) 114 x 57 x 59 mm
    Weight 480 g





  • shipment
    • DBC 114066 TS - Rear view camera
    • WPC 9 (20 m connection cable)
  • downloads

    DBC 114066 TS - Datenblatt

    Download
Technical changes and errors excepted.
