Compact ball color-camera

DBC 114074 K

Compact ball-type camera for application as front/side and/or rear view camera

request product find a merchant
  • description
    • Compact ball-type camera for application as front/side and/or rear view camera
    • Plastic bracket prevents signal disturbances between camera and vehicle
    • Ideal as side/front/rear view camera, due to easy installation and adaptability in all directions
    • 9 IR LED beamer for high performance in dark areas (max. 6~8 m)
    • Day/night sensor for automatic switch on/off of the IR-LEDs
    • Weatherproof Al. die-cast housing
    • Minimum illumination (0,01 lux)
    • Viewing angle 110°
    • Built-in microphone
    • Mirror/normal switch
    • Automatic electronic iris
    • Vandal- & waterproof (IP68)

    • NTSC-Version also available!
  • specifications
    Image-Sensor 1/4" CCD
    Resolution 500x582, 420 TVL lines
    Visual angle 110° ( diagonal)
    Lens 2,6mm
    Illumination 0,01 Lux
    IR-LED Beamer 9
    Microphone yes
    Video-System PAL
    Mirror-Function yes
    Guide-Lines no
    Camera-Input MINAX
    Protection class IP 68
    Operating temperature range -30 °C bis +65 °C
    Vibration resistant 10 G
    Power supply 12 V
    Power consumption max. 1,5 W
    Dimensons (WxHxD) 50x52 mm
    Weight approx 154 g
    Certification ECE-R10
  • shipment

    DBC 114074 K - Camera

    WPC 6 (20 m connection cable)

  • downloads

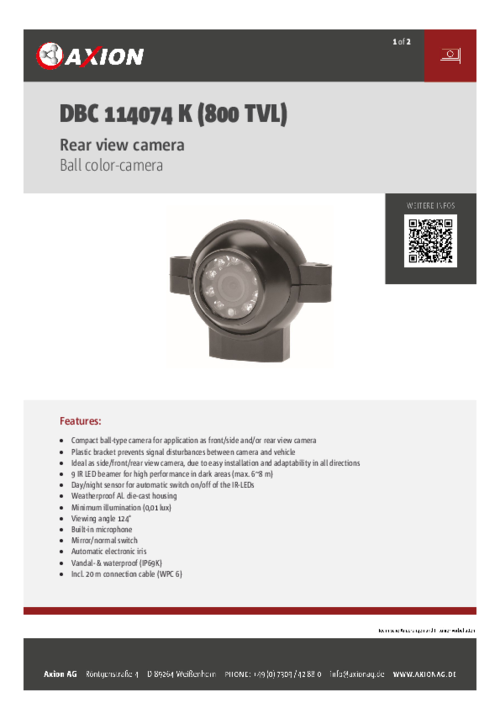

    DBC 114074 K - Datenblatt

    Download
Technical changes and errors excepted.
