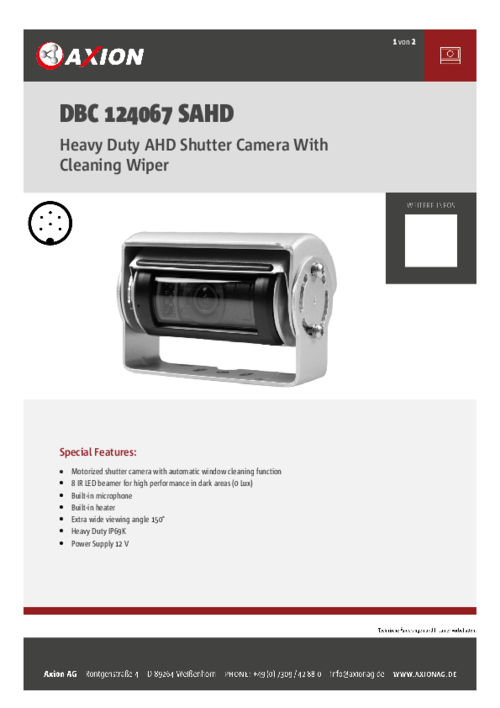

Heavy-Duty Shutter AHD Rearview Camera

DBC 1204067 SAHD

 Motorized AHD colour camera with protective flap (shutter) and cleaning/wiping function.

    • 1.23 megapixel SONY CMOS image sensor
    • AHD video signal (HD resolution 720p) >1000 TVL
    • Motorized colour camera with protective flap with cleaning rubber wiper
    • Large field of view with 150°
    • Highest moisture protection with IP69K
    • Good sight even in the dark (0 lux)
    • Built-in microphone
    • Normal/mirror switching
    • Automatic heating
    • Incl. 20 m connection cable
    • Optional accessories: Shutter control box CCB-267SAHD
  • Image sensorSony 1.23 megapixel chipset
    TV linesmore than 1000
    built-in microphoneyes
    Protection classIP69K
    Normal/mirror switchingyes
    Viewing angle146° diagonal, 116° horizontal, 93° vertical
    Wiper function when opening and closing the flapyes
    Signal / noise ratio>50 dB (AGC off)
    Waterproof aluminum housingyes
    Automatic, electronic irisyes
    High light sensitivityup to 0 lux thanks to 8 IR LEDs
    Vibration resistantup to 10 G
    Shock resistance100 G
    Power supply12 V
    Power consumptionless than 450 mA
    Operating temperature-40 °C to +85 °C
    Dimensions (WxHxD)104 x 57 x 61 mm
    Weightapprox. 480 g
    CertificationCE,ROHS,REACH, ECE-R10
    • DBC 124067 SHD - Rear view camera
    • WPC 6 (20m connection cable)
Technical changes and errors excepted.
