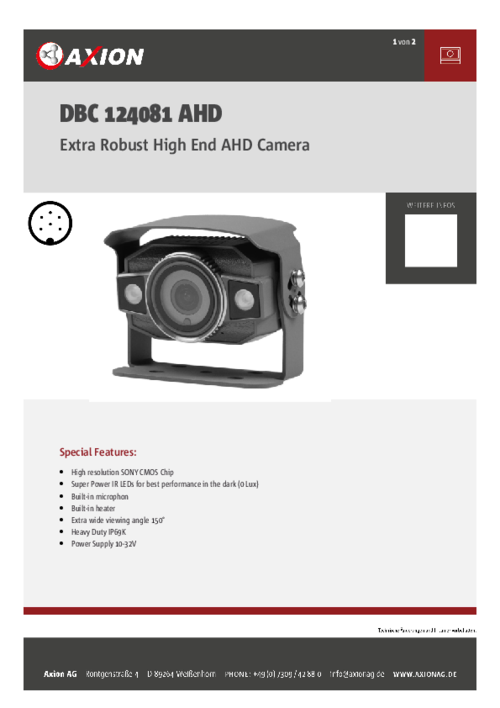

Extra Robust High END AHD Camera
DBC 124081 AHD
Compact heavy-duty color camera with AHD (FullHD) resolution.
Ideal for use on construction machinery, agricultural machinery, off-road vehicles, etc.
-
high-resolution 2.1 megapixel SONY CMOS image sensor
- High resolution SONY CMOS Chip
- AHD Signal (FHD: 1920 x 1280) with more than 1200 TV lines
- Super Power IR LEDs for best performance in the dark (0 lux)
- Built-in microphon
- Built-in heater
- Extra wide viewing angle 150°
- Heavy Duty IP69K
- Power Supply 10-32V
-
- High resolution 2,1 Megapixel SONY CMOS
- AHD Signal (FHD: 1920 x 1280) with more than 1200 TV lines
- Smart Power IR LEDs for best low light performance (0 Lux)
- Viewing angle: 152° Diagonal, 134° Horizontal, 72° Vertical
- Built-in microphone
- Signal / Noise Ratio: 50 dB
- Automatic, electronic Iris
- Vibration resistant up to 10 G
- Shock resistance 100 G
- Power consumption: >500mA
- Operating temperature: -40 °C to +85 °C
- Storage temperature: -40 °C to +85 °C
- Dimensions (WxHxD) 78 x 45 x 48 mm
- Weight: approx. 250g
Technical changes and errors excepted.
