Extra robust QHD camera with the highest resolution

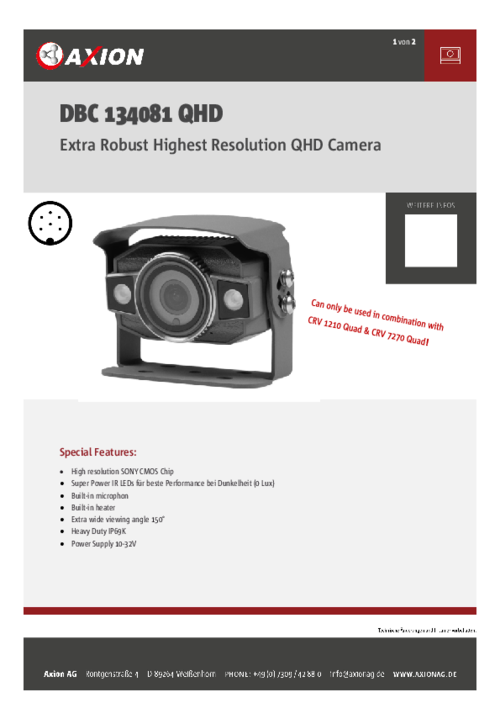

DBC 134081 QHD
Compact heavy-duty color camera with 2K resolution.
Ideal for use on construction machinery, agricultural machinery, off-road vehicles, etc.
-
High-resolution 5.1 megapixel SONY CMOS image sensor
- AHD / THD video signal (QHD: 2560 x 1400) with >1200 lines resolution
- DBC 134081 QHD can only be used in combination with CRV 1210Quad & CRV 7270 Quad
- Large field of view 150°
- Super Power IR LEDs for best performance in the dark (0 Lux)
- Built-in microphone
- Integrated heating
- Normal/mirror switching
- Vibration/ Shock: 10G / 100 G
- Heavy Duty IP69K protection class
- Operating temperature: -40° to +85°C
- 10-32 Vdc power supply
- Dimensions (W × H × D): 78 × 45 × 48 mm
-
- High resolution 5,1 Megapixel SONY CMOS
- AHD / THD Signal (QHD: 2560 x 1400) with more than 1200 TV lines
- Smart Power IR LEDs for best low light performance (0 Lux)
- Viewing angle: 148° Diagonal, 128° Horizontal, 75° Vertical
- Built-in microphone
- Signal / Noise Ratio: 50 dB
- Automatic, electronic Iris
- Vibration resistant up to 10 G
- Shock resistance 100 G
- Power consumption: >500mA
- Operating temperature: -40 °C to +85 °C
- Storage temperature: -40 °C to +85 °C
- Dimensions (WxHxD) 78 x 45 x 48 mm
- Weight: approx. 250g
Technical changes and errors excepted.
