4,3 inch touch rear view mirror monitor

VRM 4302

4,3 inch (10,9 cm) touch screen LCD mirror-monitor(12~16V) for navigation and rear view camera.
1× rear view camera input (RCA) / 1× video input (RCA).

request product find a merchant
  • description
    • Extremely bright 4.3 inch (10.9 cm) display and highly reflective mirror
    • The display is in the off state completely invisible
    • 1x video input (RCA)
    • 1x rear view camera input (RCA) with automatical switch (switch contact line)
    • Video system: PAL / NTSC auto
    • Selectable & adjustable Guidelines for reversing camera
    • Automatic brightness adjustment
    • 4mm thick mirror glass with "Third Surface Reflector Technology" for durability and high visibility.
    • Power supply: 12 V DC
  • specifications
    Monitor 4,3 inch (10,9 cm)
    Resolution 480(B)x272(H)
    Brightness 2000-2600 cd/2
    Contrast 300:1
    Video-System PAL / NTSC (auto)
    Day/Night sensor yes
    Video-Input 1 x RCA
    Trigger 1
    Power supply 12 V
    Power consumption < 8W
    Operating temperature range -30 °C up to + 80 °C
    Storage temperature range -40 °C up to + 85 °C
    Guide-Lines yes
    Dimensons (WxHxD) 270x81x45 mm
    Certification ECE-R10





  • shipment

    VRM 4302 Mirror-monitor

    Power cord

    Universal mounting bracket

    Basic plate



    Special vehicle specific mirror brackets available to ensure a Safe and OE-lookalike operation

  • downloads

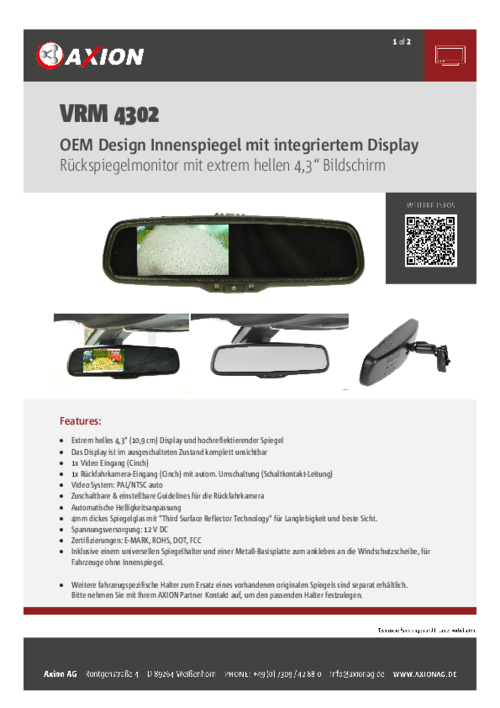

    VRM 4302 - Datenblatt

    Download
Technical changes and errors excepted.

mirror support for your vehicle

We have a lot of brackets which can cover a lot of vehicles on the market.
