Truck turn-assist-system with 10" monitor

ICA-Turn Assist AAS Set 1.2

BMVI conformal turn-assist-system with ABE. Eligible version.

request product find a merchant

  • Turn-assist-system (10" monitor) with ABE - BMVI conform

    Collisions of commercial vehicles with cyclists and pedestrians are among the most serious accidents, especially for weaker road users. Around 60 percent of all serious truck-bike accidents could be avoided by Turn-assist-system, according to calculations by the German Insurers Accident Research (UDV) based on its accident database.
    According to the requirements for turn-assist-systems by the Federal Ministry of Transport and Digital Infrastructure (BMVI) AXION offers two versions of the turn-assist-systems.

    Our proven ICA sets are now also available with a 10 inch monitor.

    • AXION ICA-Turn Assist AAS Set 1.2 with 10" monitor
    • AXION ICA-Turn Assist AAS Set 2.2 with 10" monitor (with Steering angle sensor)

    Thanks to the extension of the General Operating License (ABE) by the Kraftfahrt Bundesamt (KBA), the AXION ICA-Turn Assist systems with 10 inch monitor can now also be subsidized.

    The ABE was issued independently of the vehicle type, but the following range of use is defined:
    Commercial vehicles of category N2 and N3 and buses (M2 & M3) with more than 9 seats including driver's seat, which meet the following installation conditions. The system must be completely installed on the vehicle in which the driver receives the warning.

    • The camera must be positioned within the distance of min. 0.2 m - max. 6.0 m from the front edge of the vehicle.
    • The minimum mounting height is 2.0 m.
    • The maximum mounting height is 4.0 m.
    • Further details are described in the instructions.

    The turn-assist-system (AAS) is a camera-based system consisting of a side camera for observing the monitored area, a monitor for displaying the camera image and an ECU (control unit), which evaluates the information in the camera image using an intelligent software algorithm and triggers a warning in the event of defined dangerous incidents.

    Functionality:

    The camera of the ICA system detects the area next to the vehicle and monitors an area next to the vehicle defined during the installation during the turning process.
    The ICA-Turn Assist system uses a software-based algorithm to detect movements in this area which are classified as defined as dangerous and warns the driver both optically and acoustically by changing the colour of the monitored area in the monitor from green on red, and acoustically via the included buzzer.

    The system is permanently active at least in the recommended speed range of 0-30 km/h.

    As an option, it is also possible to warn the driver by means of the ICA-WLED, a warning LED. We recommend this as an accessory.

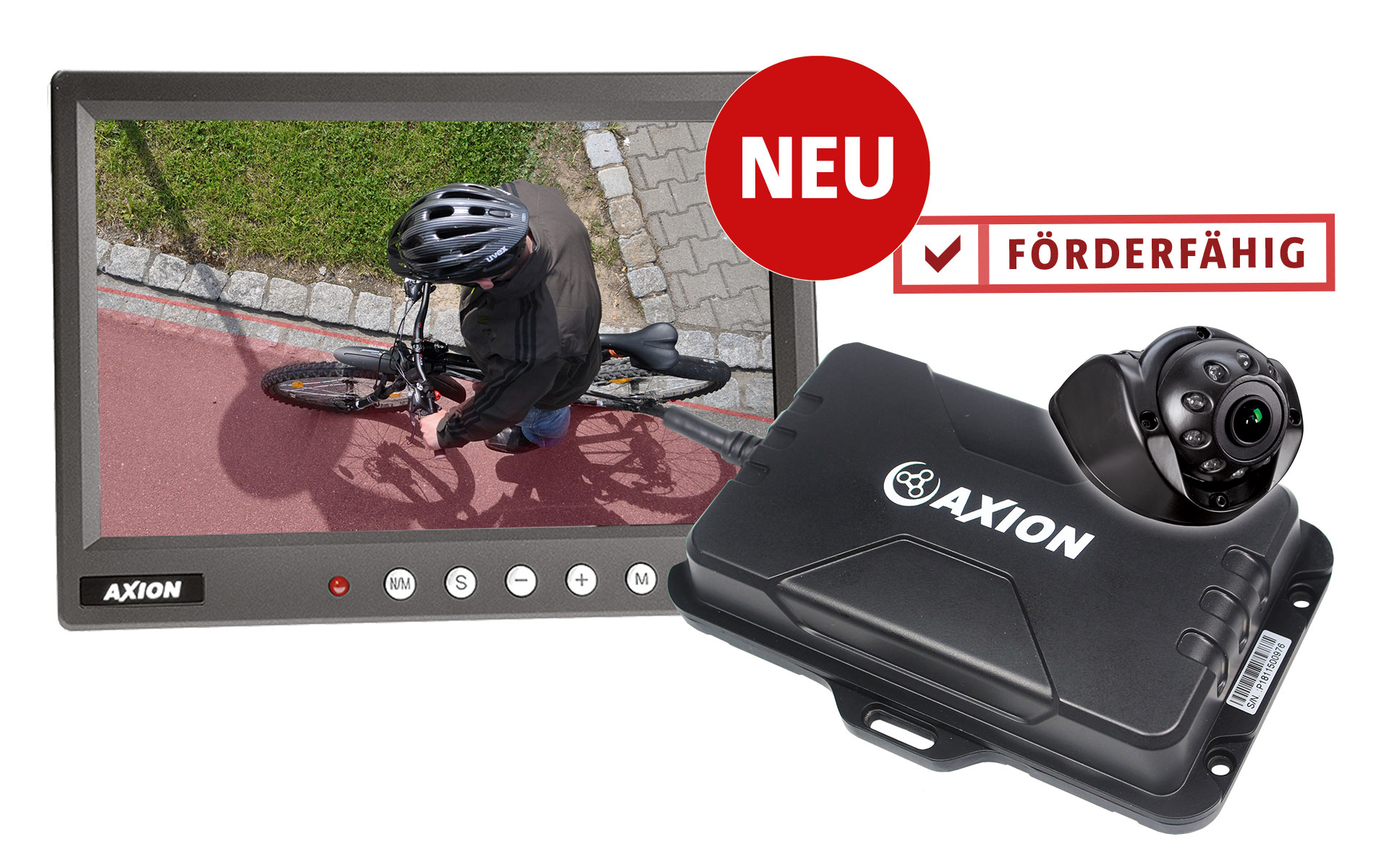

    ICA-Turn Assist AAS Set1.2 consists of:

    • ICA-Control-Box
    • 1 x front/side camera
    • 10m camera line
    • CRV 1010 Monitor

    Optional accessories:

    ICA-WLED LED warning indicator for mounting on the A-pillar
    AVS-Controler Control unit for adjusting the system during installation
    Rear view camera various AXION models possible

  • ICA-B2CH Control Box:

    Video-Input 2
    Video-Output 1
    Video-Output Formats PAL/NTSC(Auto)
    Power supply 12/24 V
    Power consumption <15W
    Operating Temperature -40°C to + 85° C
    Protection class IP68
    Dimensions 170(L) x 120(W)x40(H)mm
    Weight 497 g



    DBC 1140202B (150°) Camera:

    Image typ 1/4 " color CCD
    Resolution(pixels) PAL:752(H)*582(V)
    Lens 150° (horizontal) 1.61mm, F2.5
    9 pcs LED for night vision >8m
    Horizontal resolution 600 TV-Lines
    Protection class IP 68
    Synchronization Internal
    Signal to noise ratio >46dB(AGC off)
    Power supply DC12 V
    Power consumption <2.5 W
    Operating temperature range -30°C to + 70° C
    Storage temperatur range -40°C to + 80° C
    Dimesnions 85(L)*78(W)*97(D)MM
    Weight 235 g



    CRV 1010 Monitor:

    Monitor 10,1 inch
    Resolution 1024 x 600
    Brightness 450 cd/m2
    Mirror-Function yes
    Video-System PAL / NTSC
    Day/Night sensor yes, sensor
    Built-in speakers yes
    Video-Input 2x AXION Mini-DIN
    Power supply 10-30 V
    Operating temperature range -20 °C bis + 70 °C
    OSD (User-Manuel) 7 languages
    Dimensons (WxHxD) 255x183x42 mm
    Weight approx 720 g
    Certification ECE-R10

  • ICA-Turn Assist Flyer

    Download

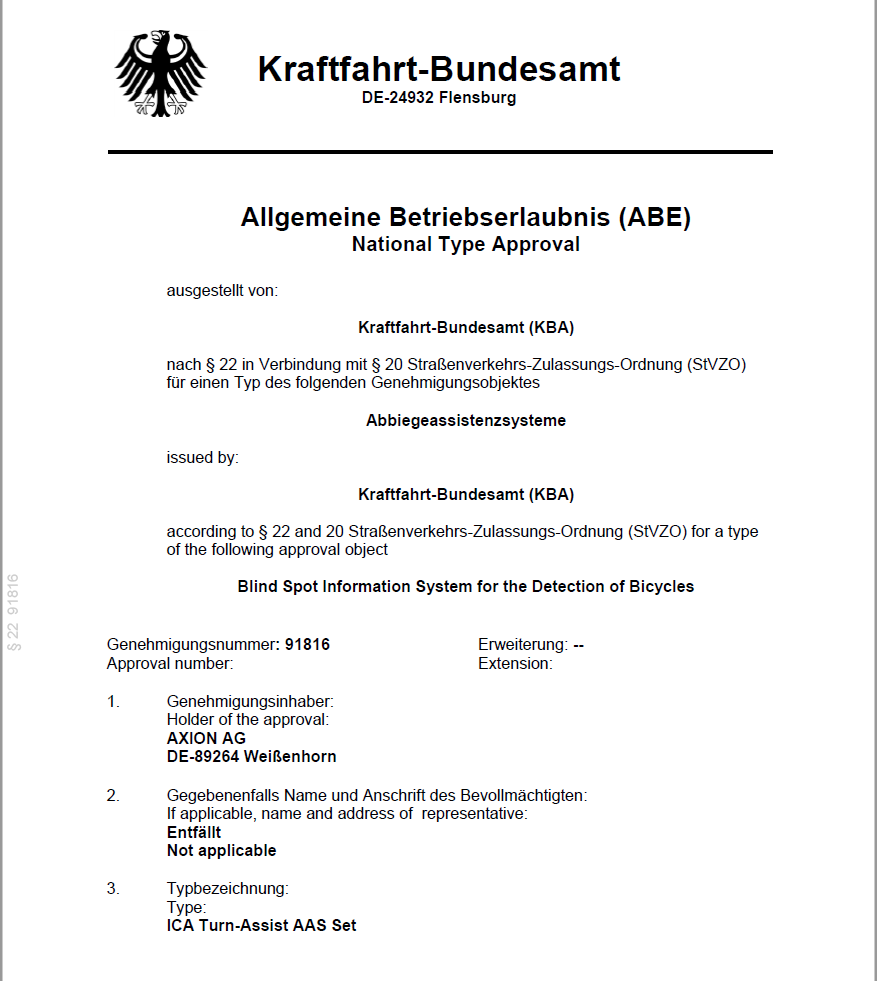

    ABE ICA Turn Assist AAS

    Download

    AXION ICA Turn Assist Zubehör Flyer

    ICA Turn Assist Zubehör Flyer für AXION Abbiegeassistenten

    Download
Technical changes and errors excepted.

optional accessories

optional accessories

AXION ICA Turn Assist solutions help prevent accidents

Traffic situations where an AXION Turning Assistant can support you

When turning right

The cyclist rides on the carriageway next to the truck at a distance of 0-2 m

When passing

The truck overtakes a cyclist and sees in the camera the situation next to the vehicle.

When changing lanes

The truck wants to change lanes and other vehicles thread in from behind.

When turning right

The cyclist rides on a cycle path beside the road at a distance of 2-5 m

When turning right

The cyclist rides on a cycle path next to the road at a distance of 2-5 m. Visibility is partially obscured by parked vehicles.
