Camera-based blind spot information system with artificial intelligence
ICA Turn-Assist AI40
Camera-based BSIS (blind spot information system) with artificial intelligence (deep learning)
compliant with the latest regulations in the EU & UK (DVS 2024)
-

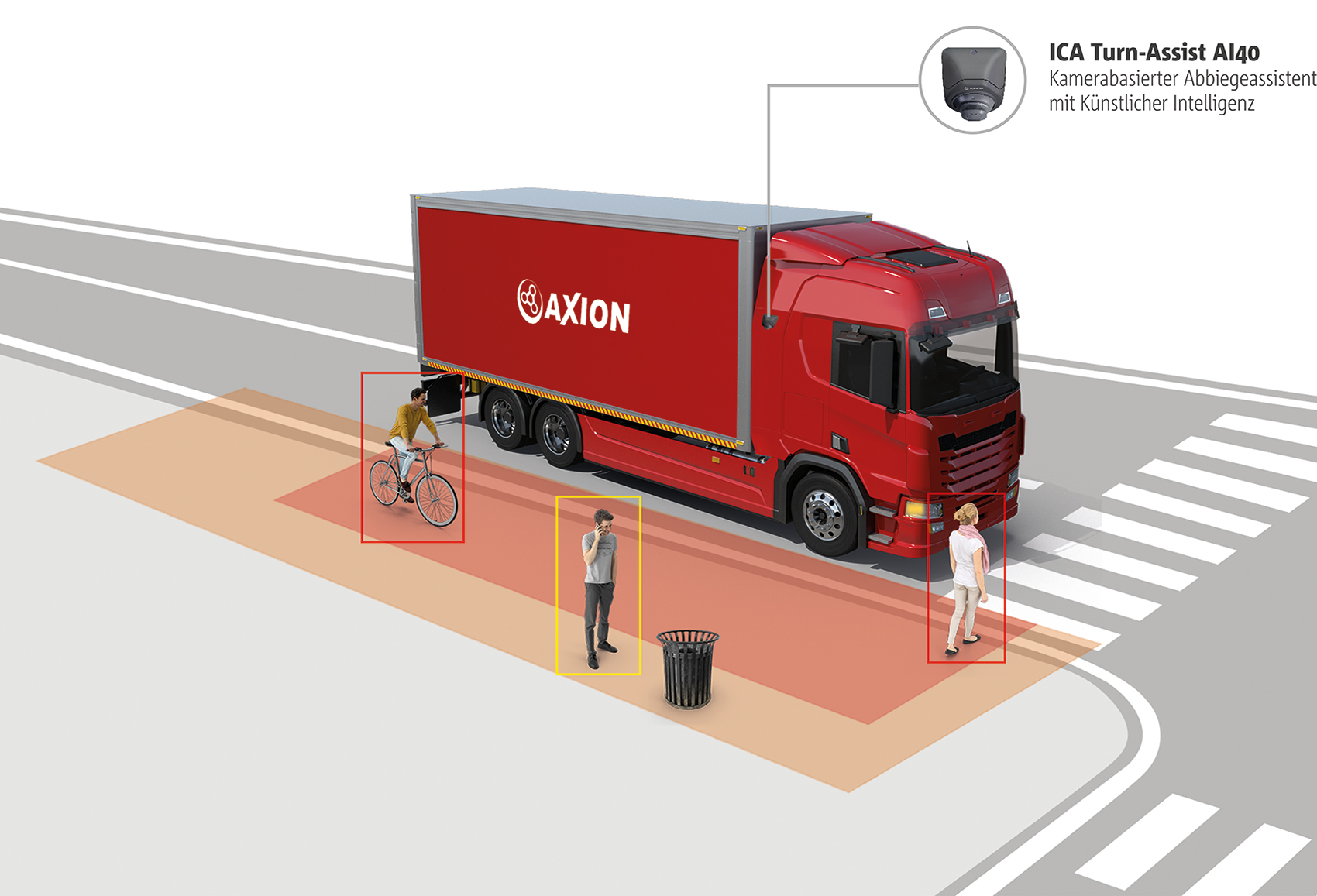

Poor visibility in buses/trucks during turning maneuvers often leads to accidents with cyclists and pedestrians (VRUs). Collisions between commercial vehicles and VRUs are among the most serious accidents. To prevent this and support the driver, AXION's turn assistants continuously monitor the blind spot next to the vehicle and warn the driver in dangerous situations.
The new generation of ICA Turn-Assist uses state-of-the-art technology. With the help of artificial intelligence, the camera image is continuously evaluated. As soon as a VRU is in the coverage area, the driver is alerted. If there is a risk of collision, an additional warning is issued. The multi-level warning concept always helps the driver to better assess the situation and avoid accidents.
System overview:

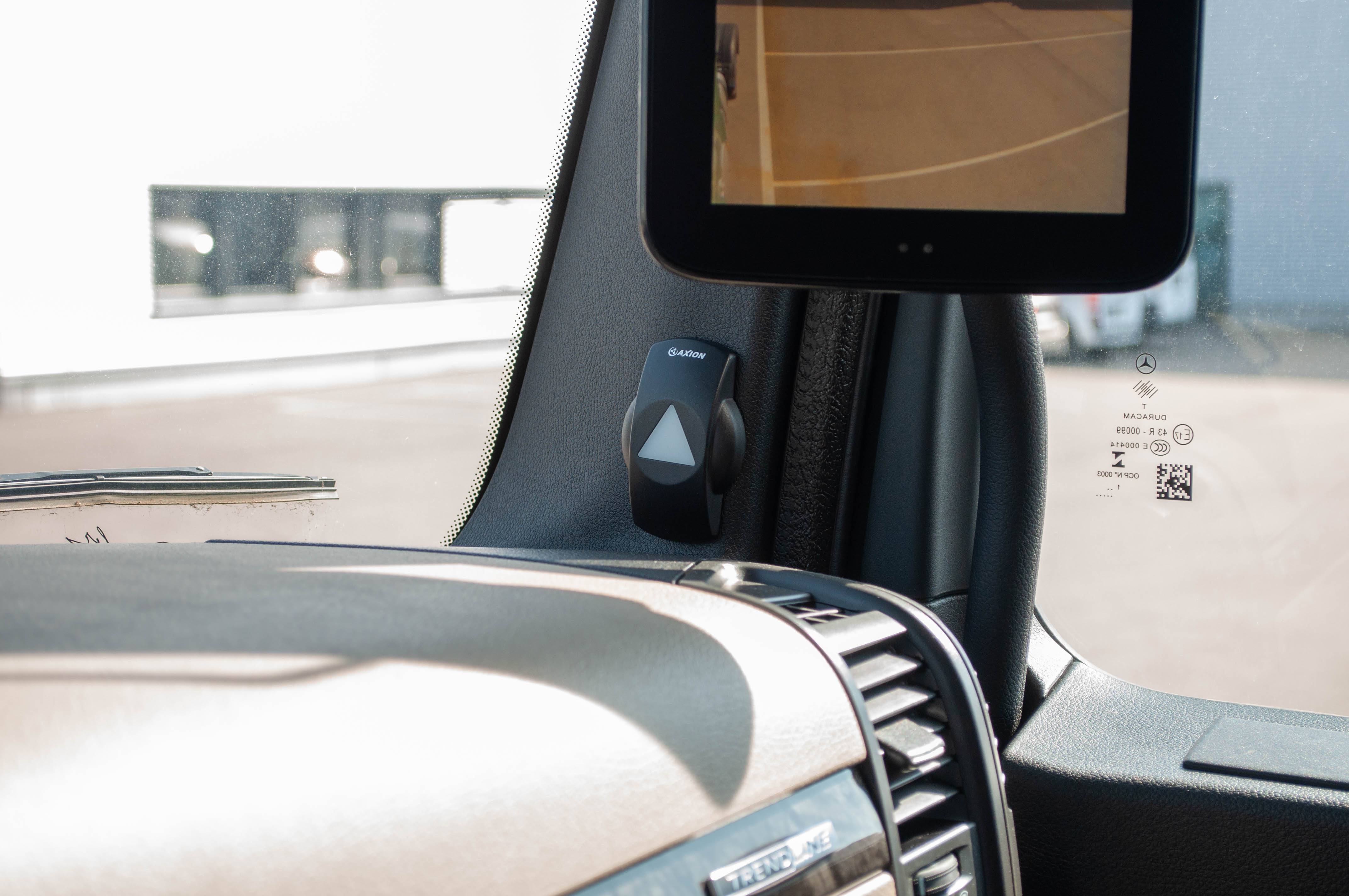

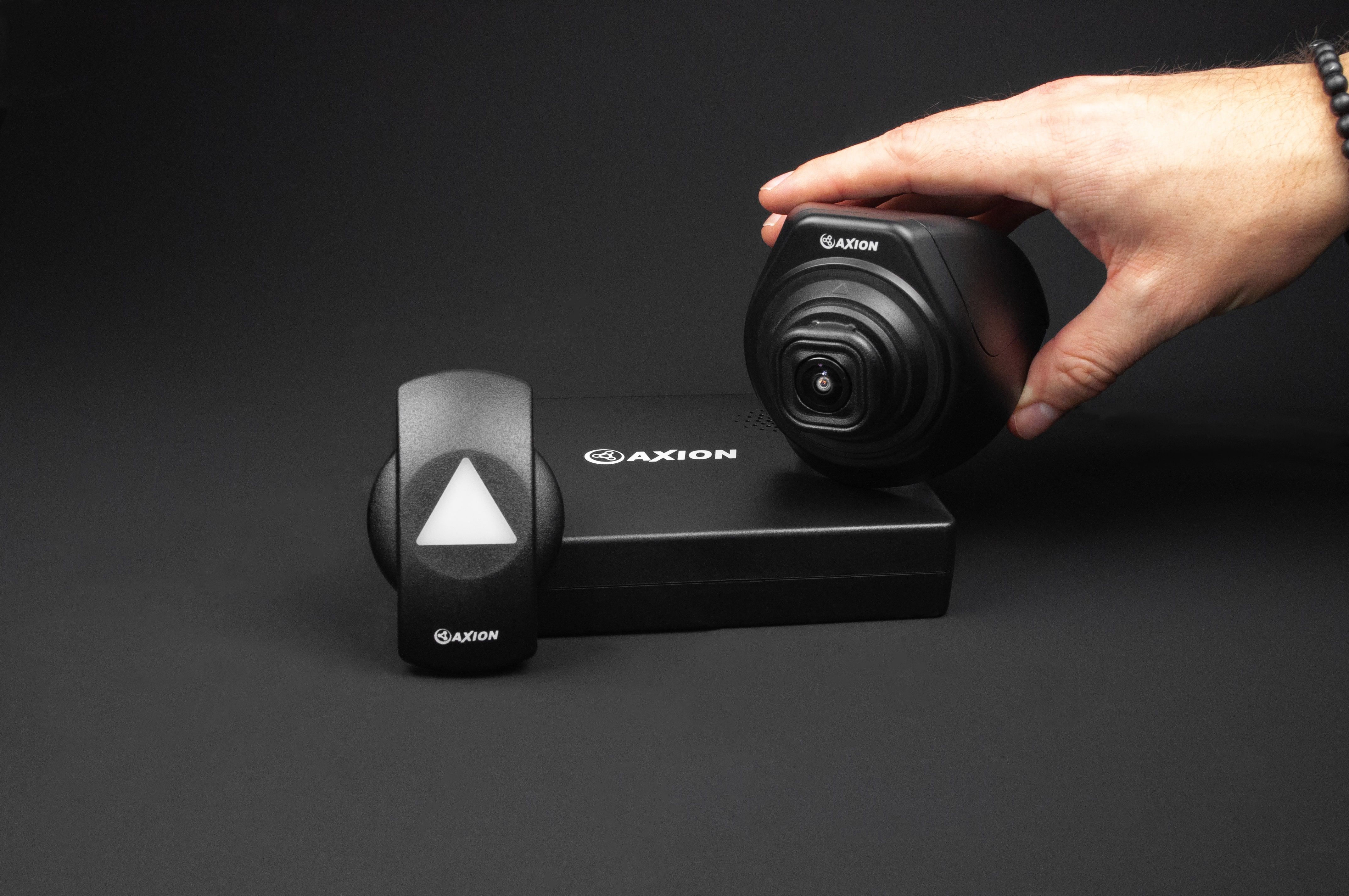

- Compact system consisting of a Smart AI camera, LED warning display, buzzer and control unit
- Developed according to the latest BMVI standard
- Reliable detection of moving cyclists and people (VRU) by classifying objects

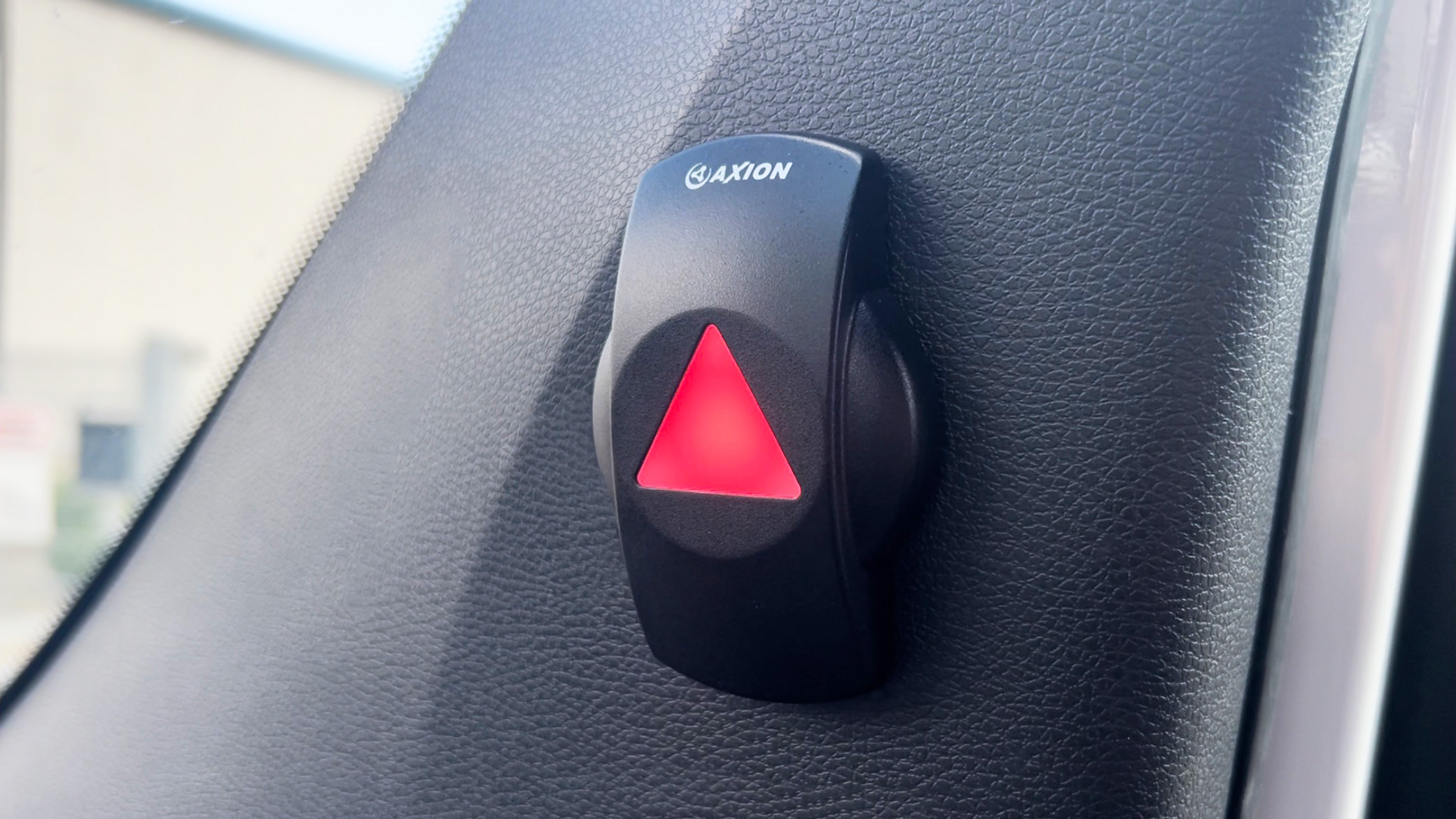

- Multi-stage information/warning strategy to support and relieve the driver, in accordance with ECE-R151 directive
- Avoidance of unwanted warnings by hiding static objects and vehicles

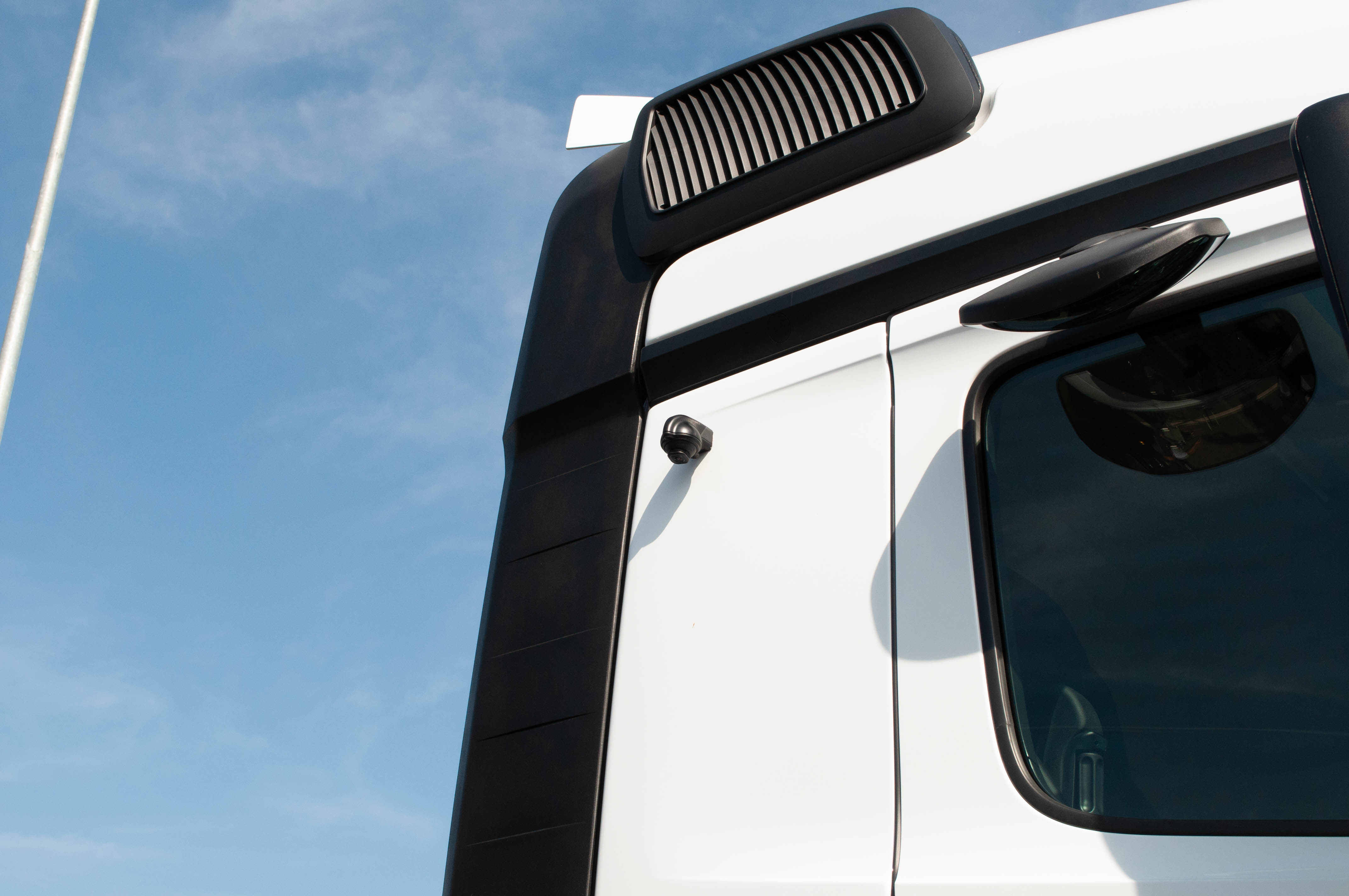

- Special camera design with drip edge to protect against rainwater collecting on the lens
- Can be flexibly retrofitted in almost all vehicles thanks to wide mounting range
- Quick and easy installation without additional sensors
- Optional display of the camera image on an AXION or existing monitor (adaptation may be required)
Area of application:
The system was developed for commercial vehicles (classes N2 and N3) and buses (classes M2 and M3) with more than nine seats, including the driver's seat, which meet the following installation conditions. The system can also be used for vehicles weighing <3.5T if the possible installation position allows this.Optional accessories:
- Camera design housing
- Additional monitor (e.g. CRV 7105 M HD)
- Model-specific installation kits and holders
- Auxiliary mat for system calibration
-
Camera Specifications – DBC-AI40:
Dimensions 50 mm x 46 mm (WxH) Power Supply 9-36 Vdc Power Consumtion ~200mA @ DC 12V Sensor Format CMOS Resolution 1280x960 (720p) HDR Dynamic Range >100dB min. Illumination 0.1 lux Video Format CVBS / AHD Viewing angle H: 165° V: 130° Protection Class IP69K Operation Temp. -40°C - 85°C Storage Temp. -40°C - 105°C ECU Specifications – ICA-MCU40:
Dimensions 110 mm x 140 mm x 28,6 mm (WxHxD) Power Supply 10-36 Vdc Power Consumption < 15 W Interfaces RS232 / LED / Alarm / Button / UART / Analog Operation Temp. -40°C - 75°C Storage Temp. -40°C - 75°C -
- Camera: DBC-AI40
- 10m camera cable
- Control unit: ICA-MCU40 incl. connection cable set
- GPS antenna
- Installation/operating instructions
