Blind Spot Detection System - Box

ICA-B2CH-Box-System "Turn-Assist"

The ICA “Turn-Assist” System observes the side Blind Spot of the vehicle and automatically detects if there is any Obstacle (like other Vehicles, Cyclist, Pedestrian, etc.) enters the defined area. In that case the System will give immediately a warning to the Driver.

request product find a merchant
  • description

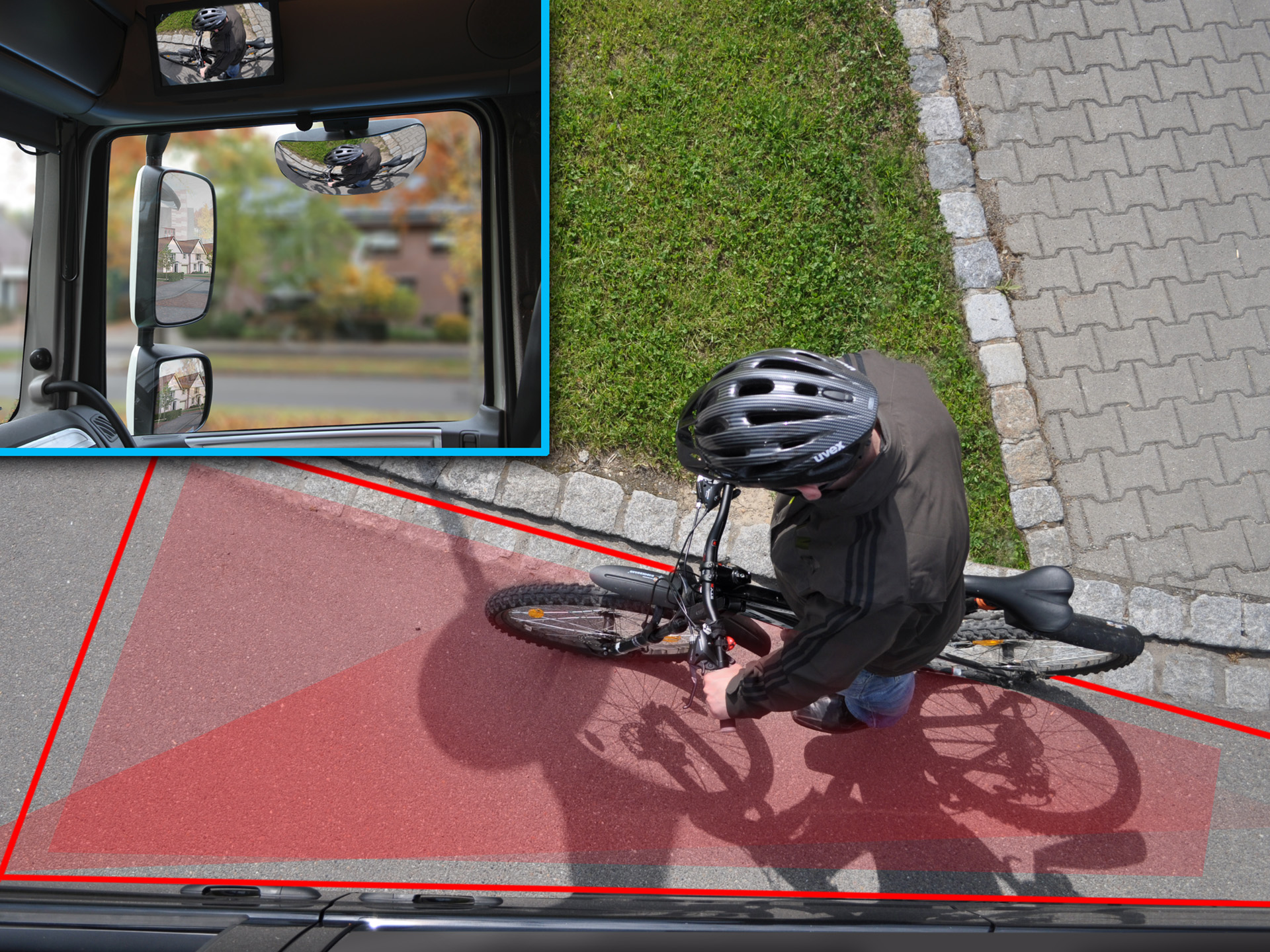

    Turning accidents due to the "blind spot"

    Turning maneuvers with collisions between trucks turning right and cyclists usually have serious consequences for the vulnerable road user.
    The ICA “Turn-Assist” System observes the side Blind Spot of the vehicle and automatically detects if there is any Obstacle (like other Vehicles, Cyclist, Pedestrian, etc.) enters the defi ned area. In that case the System will give immediately a warning to the Driver. By using the right turn signal the system will be activated automatically when the driver tend to turn right.

    • More safety for passengers and staff
    • Easy installation & adjustment of the Detection areas
    • By using the turn-signal-lights detection of the side areas

    The following systems are available:

    ICA-B2CH (2 Channel System with 2 Video-Inputs) is made of:

    • ICA-Control-Box
    • 1 x Front-/Side camera

    Optional accessories:

    • Sensor kit steering angle activation
    • Model-specific installation kits
    • Additional monitor

    A rear view camera is not included in the set - optionally available.





  • specifications

    ICA-Control-Box:

    Video-Input 2
    Video-Output 1
    Video-Output Formats PAL/NTSC(Auto)
    Power supply 12/24 V
    Power consumption <15W
    Operating Temperature -40°C to + 85° C
    Protection class IP68
    Dimensions 170(L) x 120(W)x40(H)mm
    Weight 497 g



    Camera:

    Image typ 1/4 " color CCD
    Resolution(pixels) PAL:752(H)*582(V)
    Lens 150° (horizontal) 1.61mm, F2.5
    9 pcs LED for night vision >8m
    Horizontal resolution 600 TV-Lines
    Protection class IP 68
    Synchronization Internal
    Signal to noise ratio >46dB(AGC off)
    Power supply DC12 V
    Power consumption <2.5 W
    Operating temperature range -30°C to + 70° C
    Storage temperatur range -40°C to + 80° C
    Dimesnions 85(L)*78(W)*97(D)MM
    Weight 235 g
  • downloads

    AXION ICA Turn Assist Zubehör Flyer

    ICA Turn Assist Zubehör Flyer für AXION Abbiegeassistenten

    Download

    ICA Turn Assist Infoflyer

    Download
Technical changes and errors excepted.

AXION ICA Turn Assist solutions help prevent accidents

Traffic situations where an AXION Turning Assistant can support you

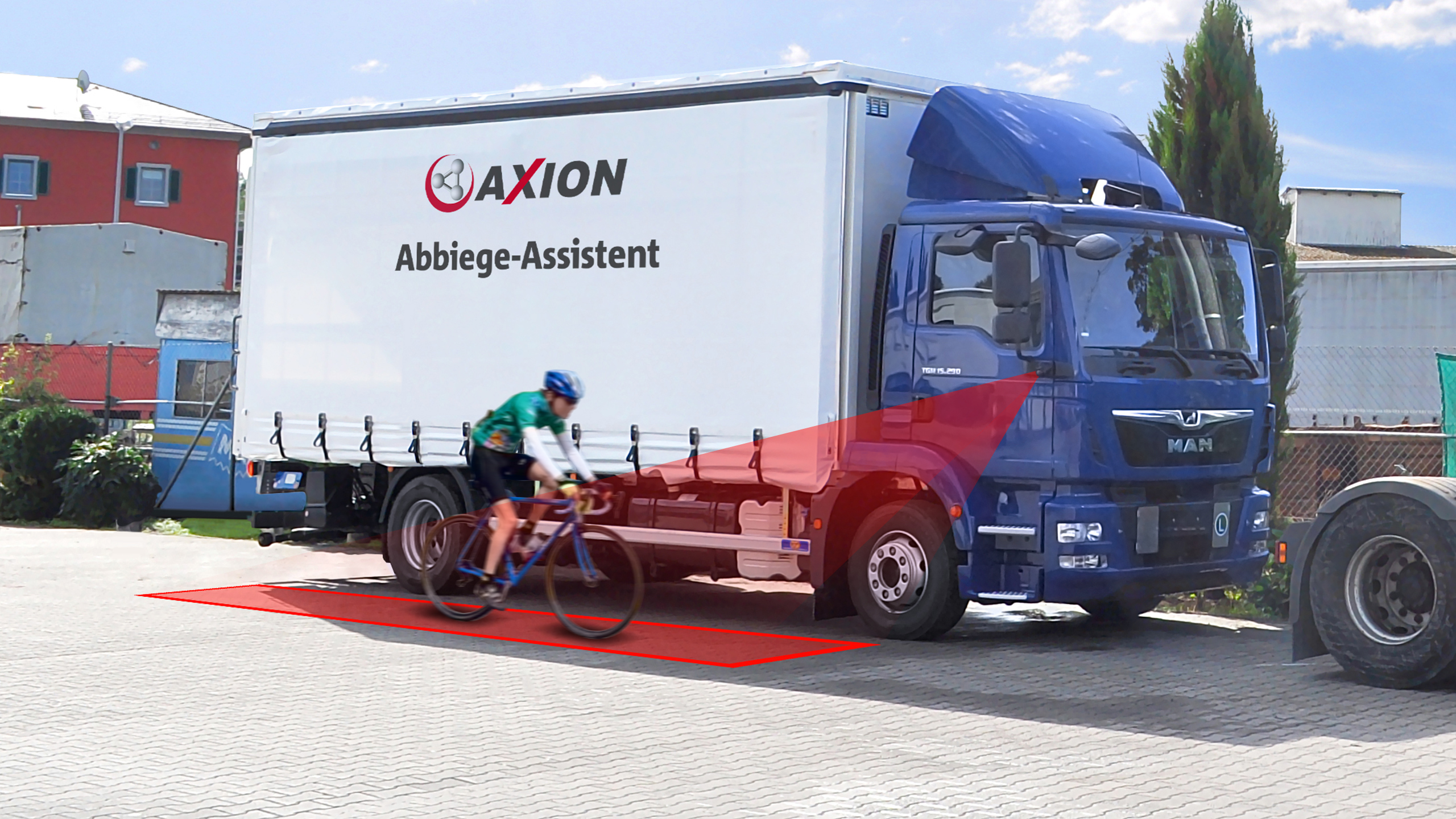

When turning right

The cyclist rides on the carriageway next to the truck at a distance of 0-2 m

When passing

The truck overtakes a cyclist and sees in the camera the situation next to the vehicle.

When turning right

The cyclist rides on a cycle path next to the road at a distance of 2-5 m. Visibility is partially obscured by parked vehicles.

When changing lanes

The truck wants to change lanes and other vehicles thread in from behind.

When turning right

The cyclist rides on a cycle path beside the road at a distance of 2-5 m
