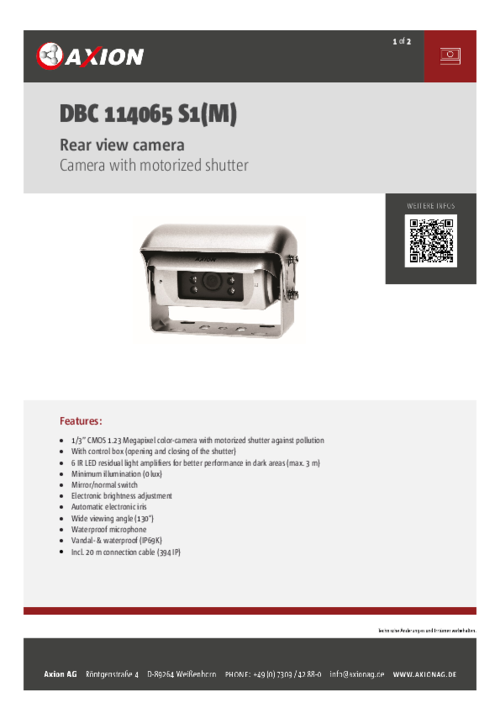

Rear view camera with motorized shutter

DBC 114065 S1

Waterproof color camera with a motorized shutter for outdoor use.

    • 1/3'' CMOS 1.23 megapixel color camera with motorized shutter to protect against contamination
    • With control box (for opening and closing the closing flap)
    • 6 infrared LEDs for uniform illumination in the dark (max. 3 m)
    • High light sensitivity (0 Lux)
    • Mirror/normal image Function
    • Electronic brightness compensation
    • Automatic electronic shutter
    • Large viewing angle (130°)
    • Waterproof microphone
    • Resistant to vandalism & moisture (IP69K)
    • Incl. 20 m connection cable (394 IP)
  • Image-Sensor1.23 Megapixel High Resolution CMOS Senosor
    IR-LED Beamer6
    Light sensitivity0 Lux
    Resolution>700 TV lines
    Viewing angle130°
    Protection classIP 69K
    Power supply12 V
    Power consumptionmax. 3 W
    Vibration resistantup to 10 G
    Shock resistance100G
    Signal/noise ratio46 dB
    Operating temperature-40 °C to +85 °C
    Dimensions (W x H x D)110x85x75 mm
    Weight390 g


    • DBC 114065 S1 - Rückfahrkamera
    • 394-IP (20 m connection cable)
    • Shutterbox (EMC10S32VA)
Technical changes and errors excepted.
