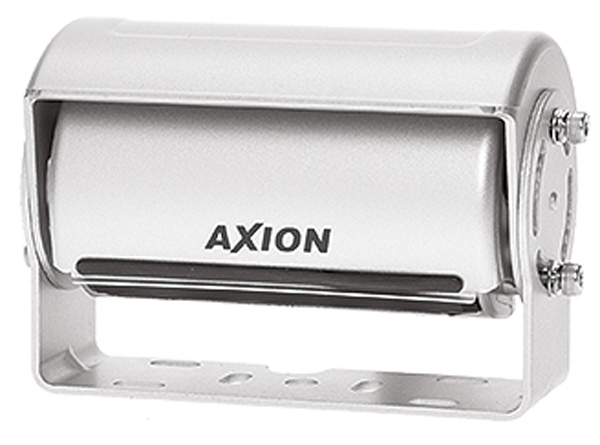

Heavy duty shutter camera

DBC 114067 SHD

Motorized color-camera with shutter and cleaning wiper.

request product find a merchant

- Motorised colour camera with protective cover with cleaning rubber wiper
- Large field of view with 150
- Highest moisture protection with IP69K
- Good visibility even in the dark (0 Lux)
- Built-in microphone
- Normal/Mirror Switching
- Automatic heating
- Incl. 20 m connection cable

Image-Sensor	Sony 1.23 Megapixel chipset
TV lines	more than 700
Built-in microphone	yes
Protection class	IP 69K
Normal/Mirror Switching	yes
Viewing angle	146° diagonal, 116° horizontal, 93° vertical

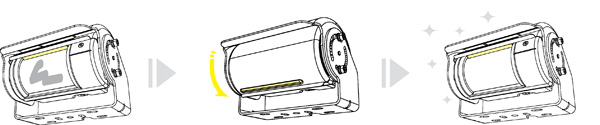

Wiper function when opening and closing the flap	yes
Signal / Noise ratio	>46 dB (AGC off)
Waterproof aluminium housing	yes
Automatic, electronic iris	yes
High light sensitivity	up to 0 lux due to 8 IR LEDs
Vibration resistant	up to 10 G
Shock resistance	100 G
Power supply	12 V
Power consumption	less than 200 mA
Operating temperature	-40 °C to +85 °C
Dimensions (WxHxD)	104 x 57 x 55 mm
Weight	approx. 480 g
Certification	CE,ROHS,REACH, ECE-R10

- DBC 114067 SHD - Rear view camera
- WPC 6 (20m connection cable)
- Shutterbox (EMC10S32V)

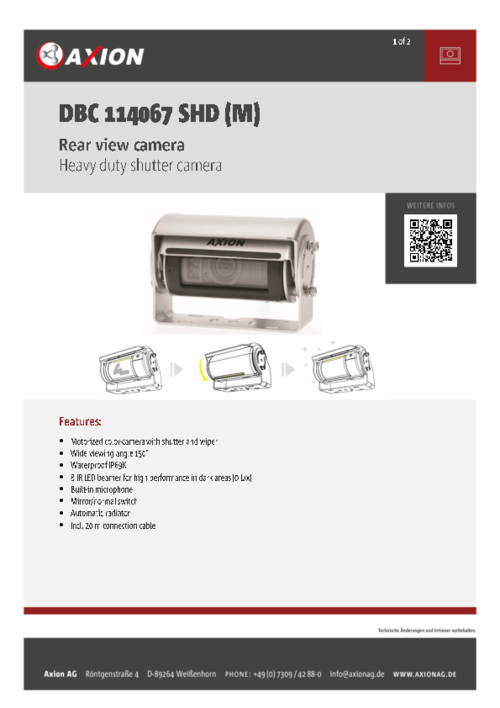

Download

Technical changes and errors excepted.
