High-end color-camera

DBC 114069 SB

Waterproof, high-end color-camera
Wide viewing angle 150°(diagonal)
Minimum illumination 0 lux

request product find a merchant
  • description
    • Waterproof, high-quality colour camera
    • Large field of view with 150° (diagonal)
    • Extreme night vision capability with 0 Lux
    • Normal/Mirror Switching
    • Vandalism safe
    • Highest moisture protection with IP69K
    • Integrated automatic heating
    • Incl. 20 m connection cable (WPC 6)
  • specifications
    Image-Sensor Sony 1.23 Megapixel chipset
    Built-in microphone yes
    Case Aluminium
    Electronic Autoshutter with IR-LED Beamer yes
    Field of view 150°
    Normal/Mirror Switching yes
    Protection class IP69K
    Light sensitivity 0 Lux
    Integrated heating yes
    Power supply 9-14 V
    Operating temperature range -40 °C to +85 °C
    Dimensions (WxHxD) 69 x 41 x 53 mm
    Weight approx. 180 g
  • shipment
    • DBC 114069 SB - Rear view camera
    • WPC 6 (20 m connection cable)
  • downloads

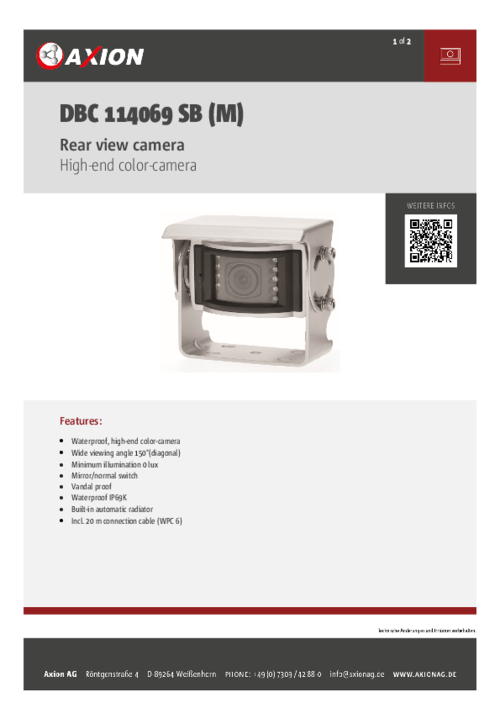

    DBC 114069 SB - Datenblatt

    Download
Technical changes and errors excepted.
