360° Full-HD Around Vision System

AVS-360°-BS05 Doublebird FHD

Name: AVS-360°-BS05 Doublebird FHD
Brand: Axion AG

Around Vision System Set for AHD/CVBS and HDMI Monitors

Now also available in Full HD: The AVS 360° Doublebird FHD system offers the driver a bird's-eye view of the vehicle's surroundings, for use in a wide range of vehicle classes.

request product find a merchant

AVS 360° Doublebird FHD: The around view of the vehicle in Full HD

The latest generation of the AXION around view system expands the capabilities of previous Doublebird solutions to provide an even clearer representation of the vehicle's surroundings.

The camera technology used and the Full HD image output provide the driver with more details, especially on smaller monitors. The camera views can be recorded to an SD card, and the video files can be downloaded as needed. *). The new auto-calibration enables quick commissioning. Numerous 2D and 3D vehicle models enable an attractive display for a wide range of vehicle categories.

The camera system consists of four wide-angle color cameras and a control unit. The cameras are mounted at the front, rear, left, and right of the vehicle at the highest possible position. The system displays the vehicle's surroundings on a suitable monitor from a bird's eye view, in 3D views, or via direct 2D single-camera views. This gives the driver a complete overview of people, vehicles, and other objects in the entire vehicle environment. The system offers:
- 360° around view by 4 cameras
- Full HD image resolution (1080p) for a clear view
- Various display modes 2D/3D
- Adjustable image orientation (horizontal / vertical)
- Wide selection of 2D and 3D vehicle models
- Video output in AHD and PAL/NTSC
- Video output via HDMI (optional)
- Integrated, event-controlled video recording
- Easy to install
- Auto calibration function for easy system setup
- Flexible combination with AXION monitors
- Suitable for 12 V and 24 V vehicles
*) For video recordings, please mind the legal data protection regulations in the respective country in which the vision system is used.

Around Vision System / Control Box

Video	Camera input 4 channels 1080p 25/30 fps
	AHD video output 1080p 30 fps
	SD video output D1 25/30 fps PAL/NTSC
Video recording	Memory size max. 2x 512 Gbyte SD card
	Encoding max. 4 channels, 1080p H.264
	Data rate 1/2/4 Mbit/s
Operating voltage	10 - 32 V DC
Trigger signal voltage	10 - 32 V DC
Power consumption	< 2 A / 12 V
Additional interfaces	USB 2.0 / GPS receiver / IR / HDMI (via adapter cable)
Operating temperature range	-20°C to +70°C
Storage temperature range	-40°C to +85°C
Operation humidity	+10% to +95% non-condensing

Camera DBC 1240205 M

Image sensor	1/2.9" CMOS 2 Megapixel
Viewing angle	200°
Frame rate	25 fps
Resolution	1920 (H) x 1080 (V)
Pixel size	2.8 µm x 2.8 µm
Video signal output	1.0 V p-p / 75 Ohm
White balance	automatic
Minimal ambient Illumination	0.1 Lux
Operating voltage	12 V
Power consumption	< 140 mA / 12 V
Operating temperature range	-20 °C to+70 °C
Storage temperature range	-30 °C to +80 °C
Humidity operation/storage	+10% to +95% non-condensing
Protection class / IP rating	IP69K (waterproof)

The AVS-360-BS05 is a set consisting of:
- Control box
  - with remote control and GPS antenna
- 4 wide-angle color cameras
- Camera connection cables
  - 1x 5 m
  - 2x 10 m
  - 1x 15 m
(other lengths for the camera cables on request)

Accessories:
- AVS-CMSS / Calibration mats small size 4x
- AVS-CMSL / Calibration mats large size 4x
- CA-AVS-HDMI1 / DVI HDMI adapter 1 m
The around vision systems AVS-360-BS05 can be operated with AHD monitors like:
- CRV 7105 M HD
- CRV 7103 M HD
- CRV 7108 Q HD
- CRV 7270 Quad HD
- CRV 1110 DUA HD
- CRV 1210 Quad HD
Other AHD or PAL/NTSC compatible monitors are also supported.

Using an HDMI display device is possible using the DVI-HDMI adapter CA-AVS-HDMI1.
When using a HDMI display device, the AHD output is disabled.

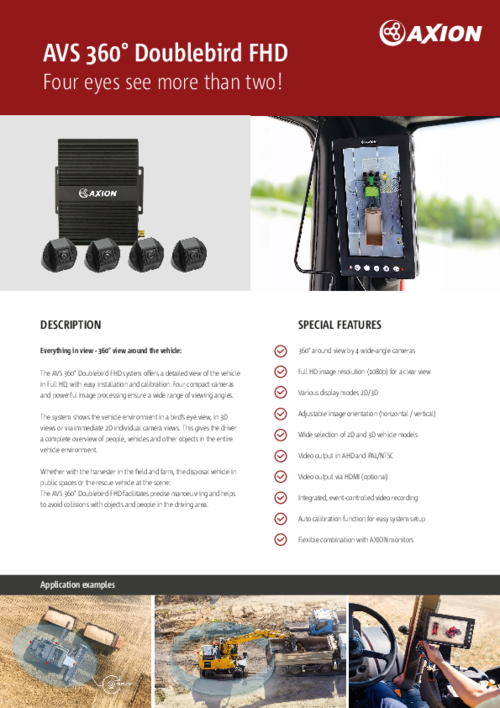

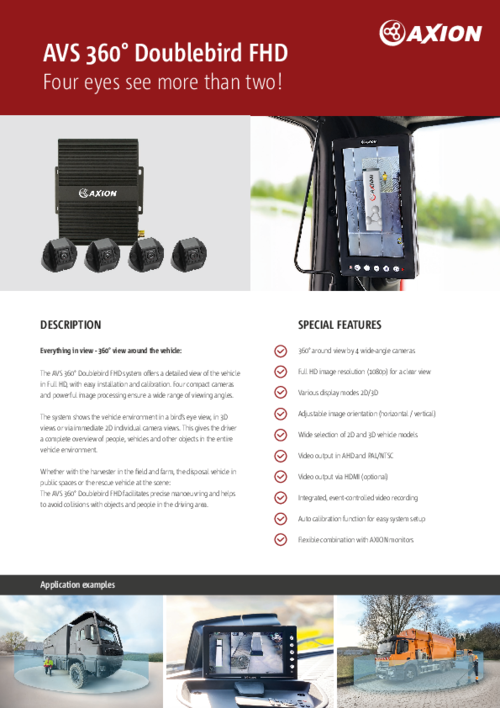

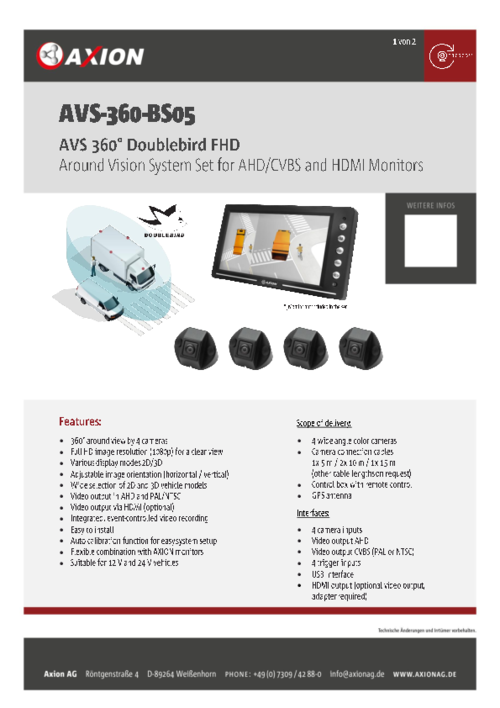

Download
