10,1 inch LCD TFT monitor with Quad function

CRV 1014 Quad

Sturdy 10,1 inch (25,65 cm) LCD TFT Monitor with 4 camera inputs especially designed for construction vehicles and trucks

request product find a merchant
  • description
    • Sturdy 10,1 inch (25,9 cm) LCD TFT monitor especially designed for construction vehicles and trucks
    • Built-in quad control box function for up to 4 cameras
    • 4 camera inputs
    • Built-in speaker
    • Automatic adjustment of the display mode according to the quantity of connected cameras
    • Single/split/quad view selectable, triple view applicable when 3 cameras are connected
    • Automatically switches to the camera when triggered
    • Trigger priority: CAM 1 > CAM 2 > CAM 3 > CAM 4
    • On Screen Menu (OSD) with 7 languages
    • PAL/NTSC switch
    • Mirror/normal switch separate for each camera
    • Incl. monitor stand
  • specifications
    Monitor 10,1 inch
    Resolution 1024x600
    Brightness 450 cd/m2
    Mirror-Function yes
    Video-System PAL / NTSC
    Day/Night sensor yes, sensor
    Built-in speakers yes
    Video-Input 2x AXION Mini-Din
    Power supply 10-30 V
    Power consumption <7W
    Operating temperature range -20 °C to +70 °C
    OSD (User-Manuel) 7 languages
    Dimensons (WxHxD) 165x115x29 mm
    Weight 720 g
    Certification ECE-R10
  • shipment
    • CRV 1014 Quad- Monitor
    • Monitor stand
    • Power cord
  • downloads

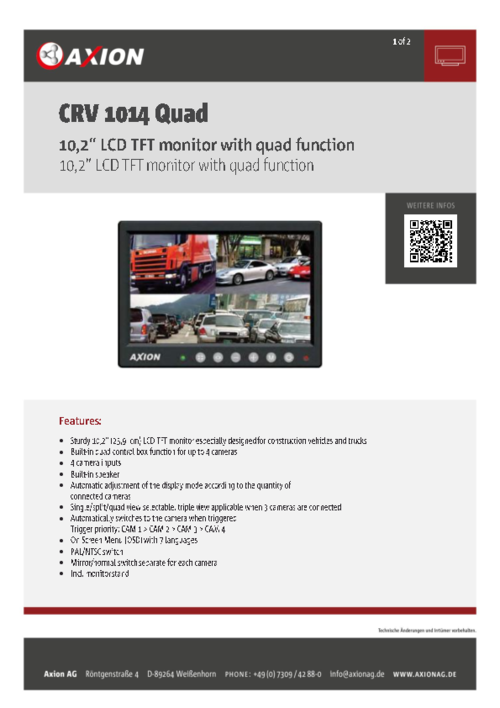

    CRV 1014 Quad - Datenblatt

    Download
Technical changes and errors excepted.
